Union Switch and Signal Company Searchlight Mechanisms

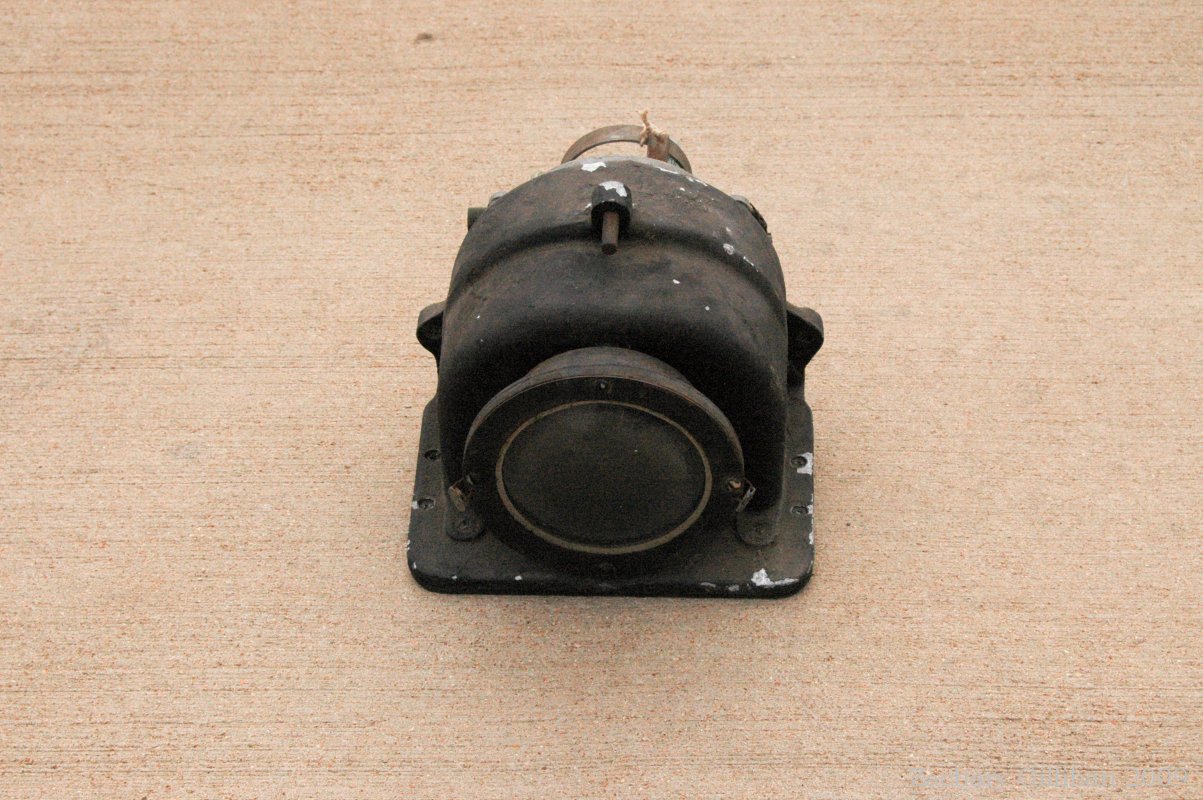

photo courtesy of Zachary Gillihan Model/Style:H-2
Description:Inoperative Unit
Type:
Voltage:10 DC
Resistance or Cycles:
Other:Red Only
View:Front

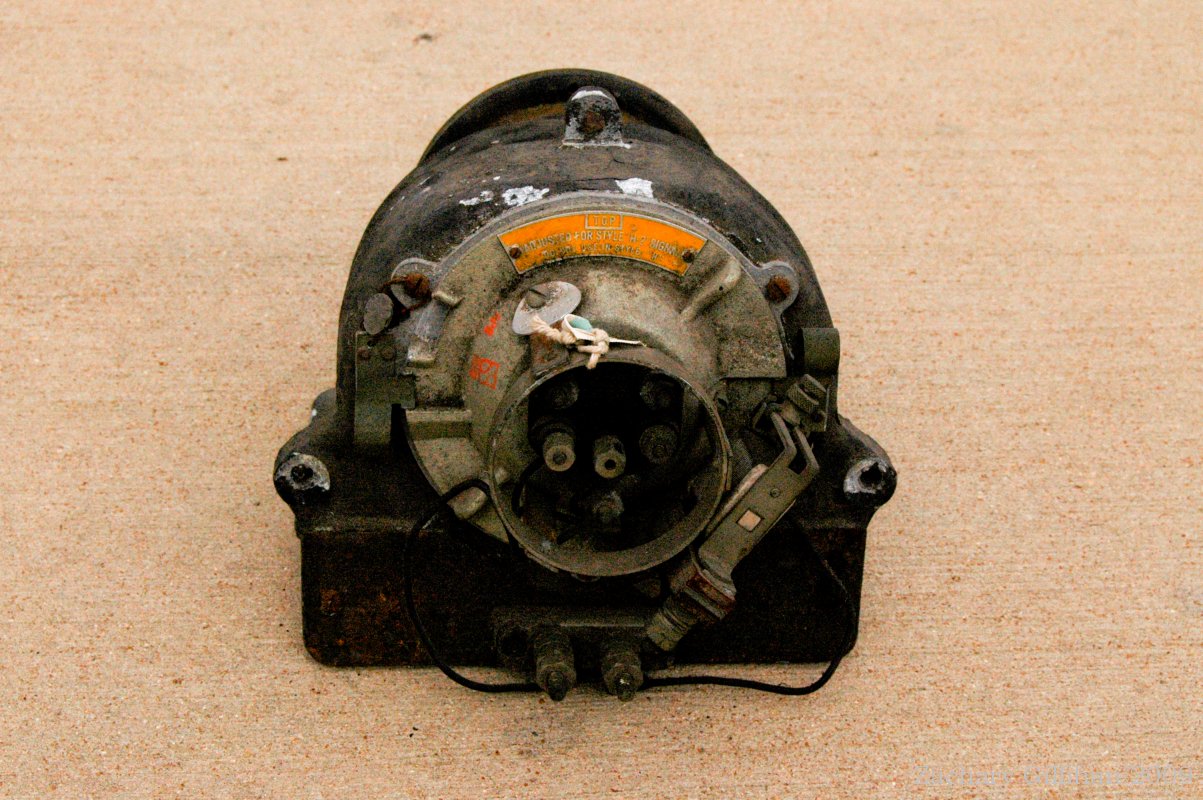

 photo courtesy of Zachary Gillihan Model/Style:H-2
Description:Inoperative Unit
Type:
Voltage:10 DC
Resistance or Cycles:
Other:Red Only
View:Back

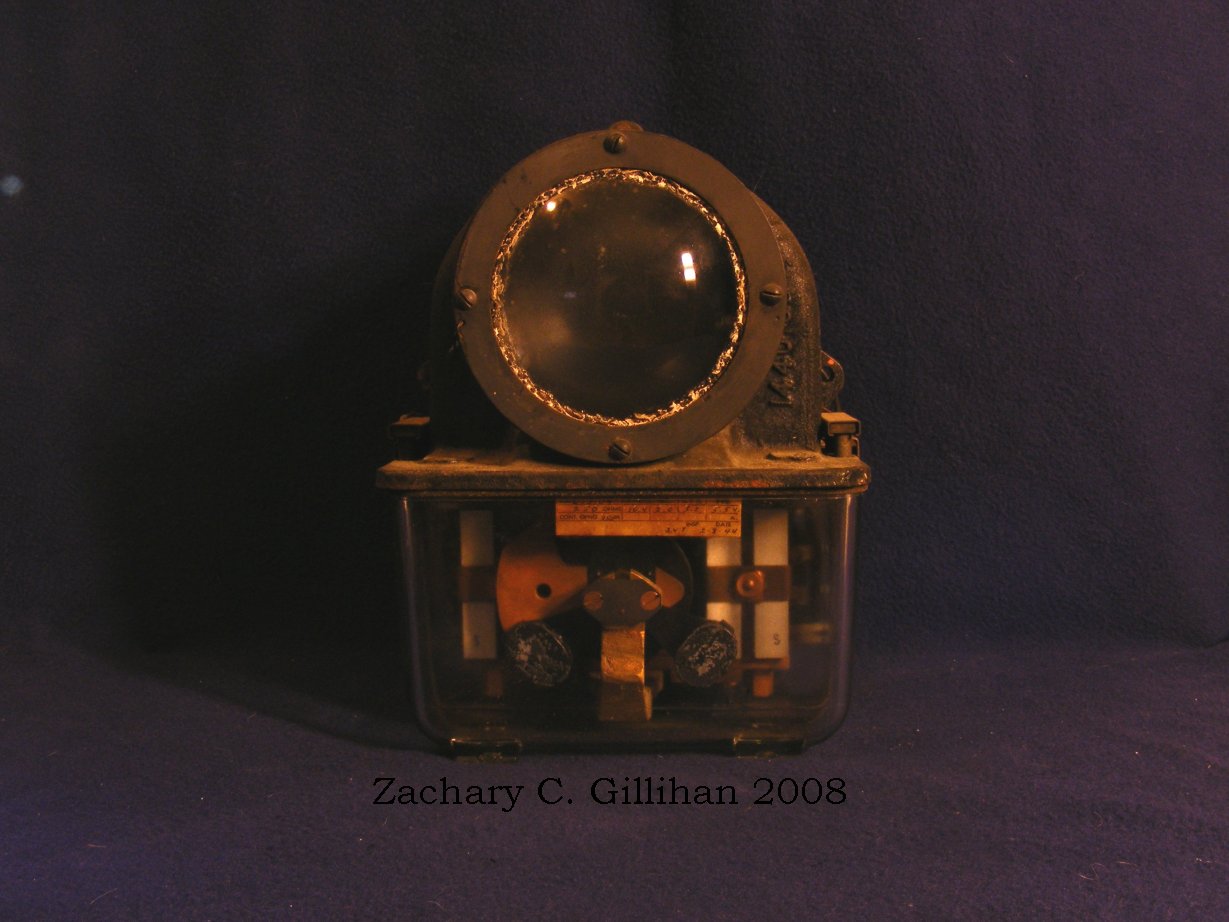

photo courtesy of Zachary Gillihan Model/Style:H-2
Description:Searchlight Mechanism
Type:
Voltage:10 DC
Resistance or Cycles:
Other:Yellow/Red/Green
View:Front

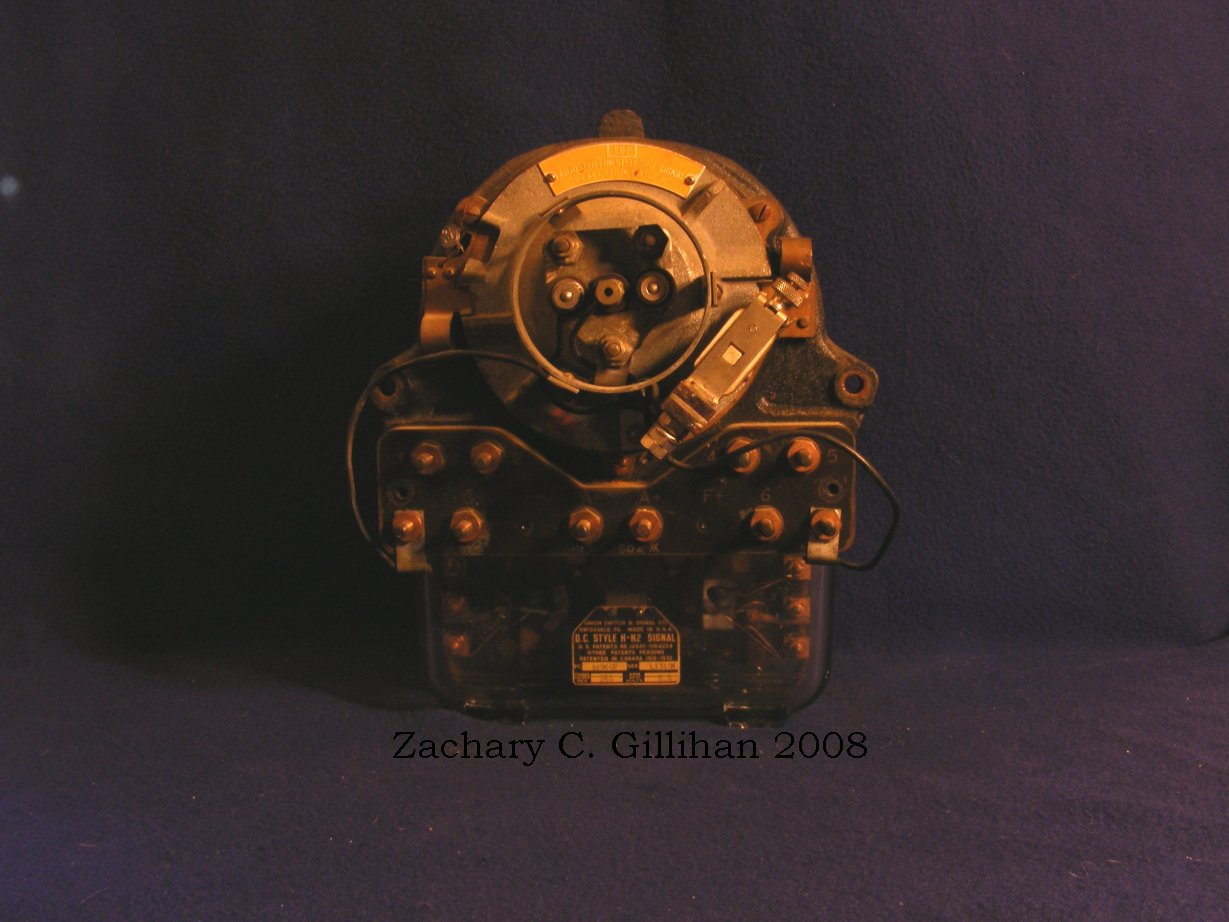

 photo courtesy of Zachary Gillihan Model/Style:H-2
Description:Searchlight Mechanism
Type:
Voltage:10 DC
Resistance or Cycles:
Other:Yellow/Red/Green
View:Back

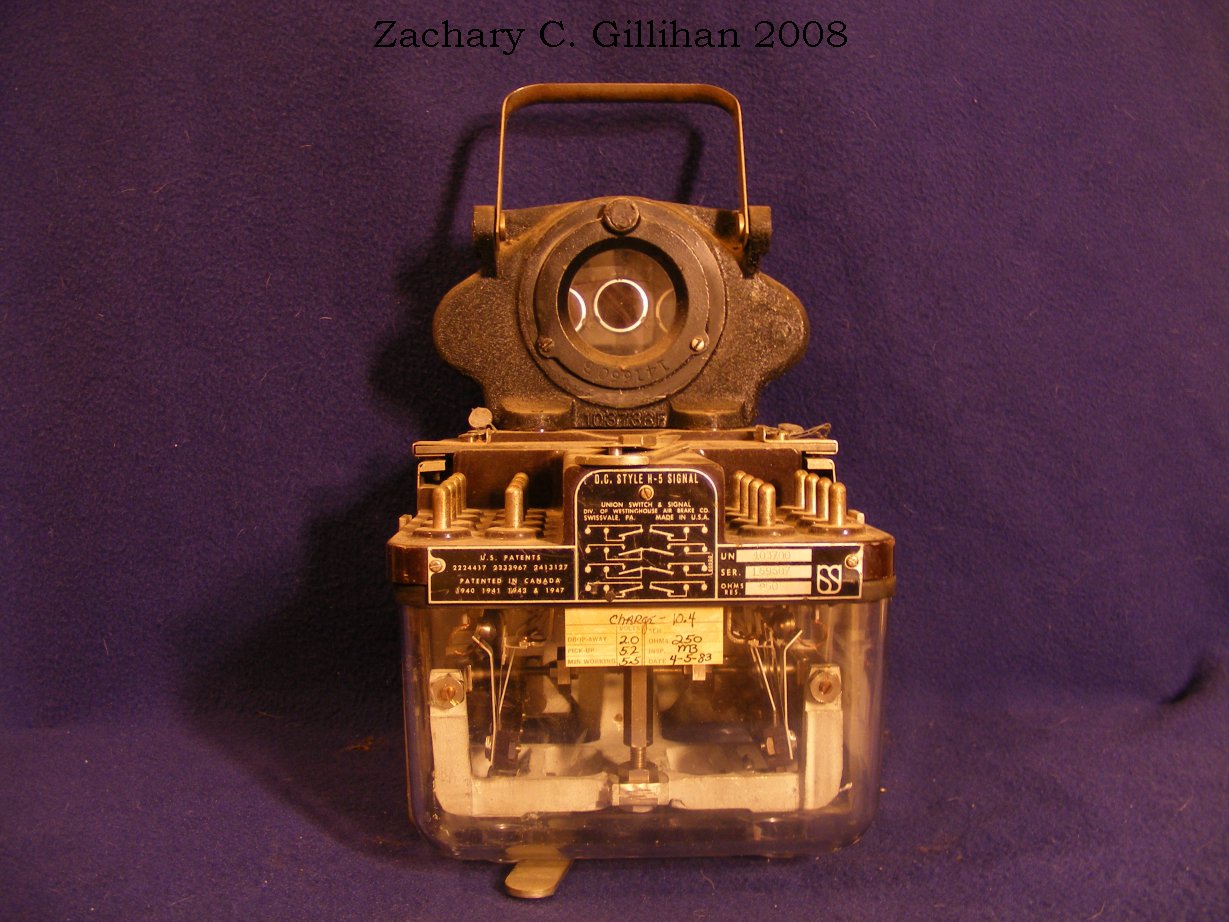

photo courtesy of Zachary Gillihan Model/Style:H-5
Description:Searchlight Mechanism
Type:
Voltage:10 DC
Resistance or Cycles:
Other:Yellow/Red/Green
View:Back

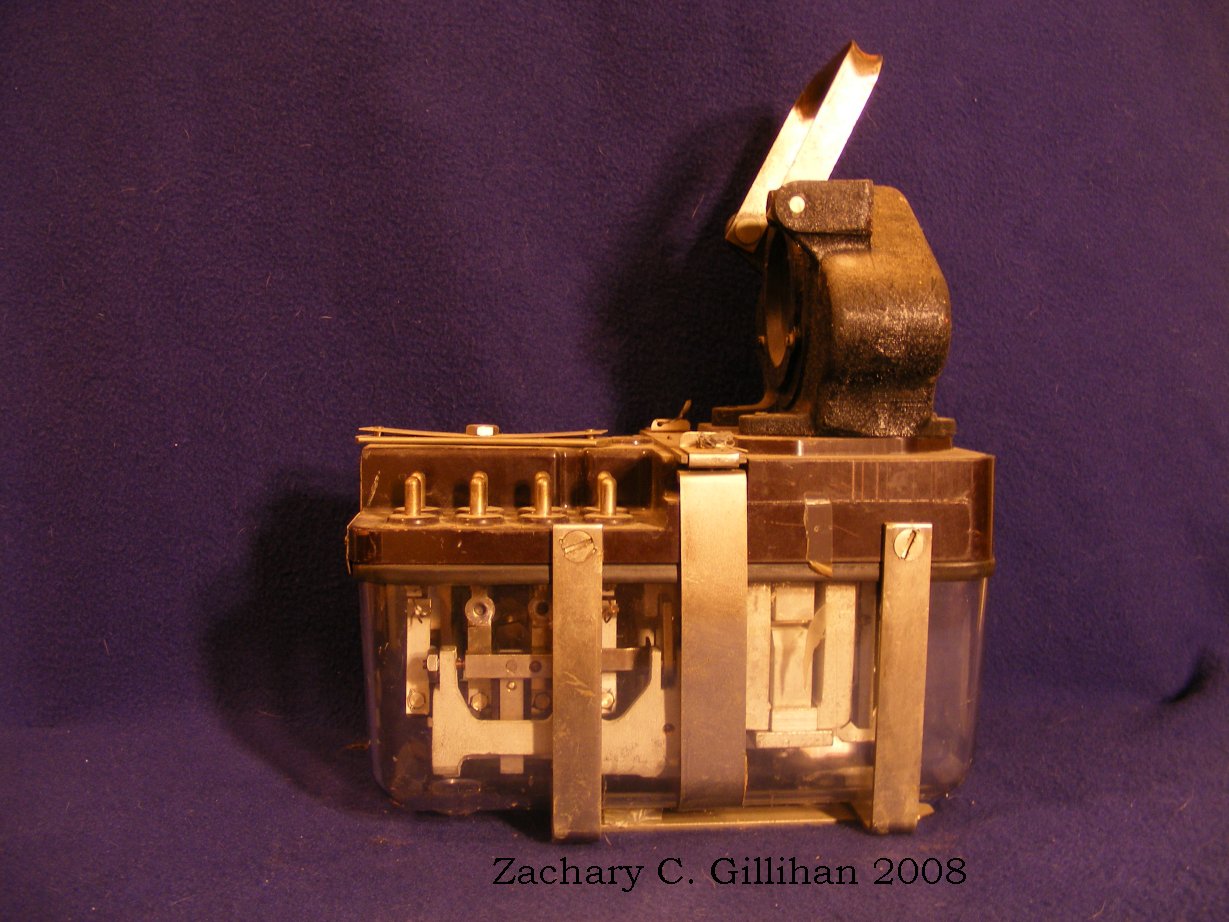

 photo courtesy of Zachary Gillihan Model/Style:H-5
Description:Searchlight Mechanism
Type:
Voltage:10 DC
Resistance or Cycles:
Other:Yellow/Red/Green
View:Side
