Project #0740
Project #0740 is making one good wigwag and another into a static display. I got both these wigwags for the Unilens signal and a bunch of parts. I got several spare banners and 2 new hoods and lens for one banner. The signal that the case is painted needs to be rewired and new relays installed. It had a rusted pole changing relay and a rusted reserve light relay. Luckly in the parts there was a good pole relay and in the rusted signal the reserve relay was in good condition. Someone started to restore this wigwag and quit, I had to replace the terminal block and drill new holes for the pole relay. The coils on the wigwag which I am calling #1 are not in the best condition. The bearings are different for both wigwags, you can swap the bearings but the #2 is rusted up. Im not sure where the painted one came from but the second one was founf laying in the creek in water. Explains the rust!

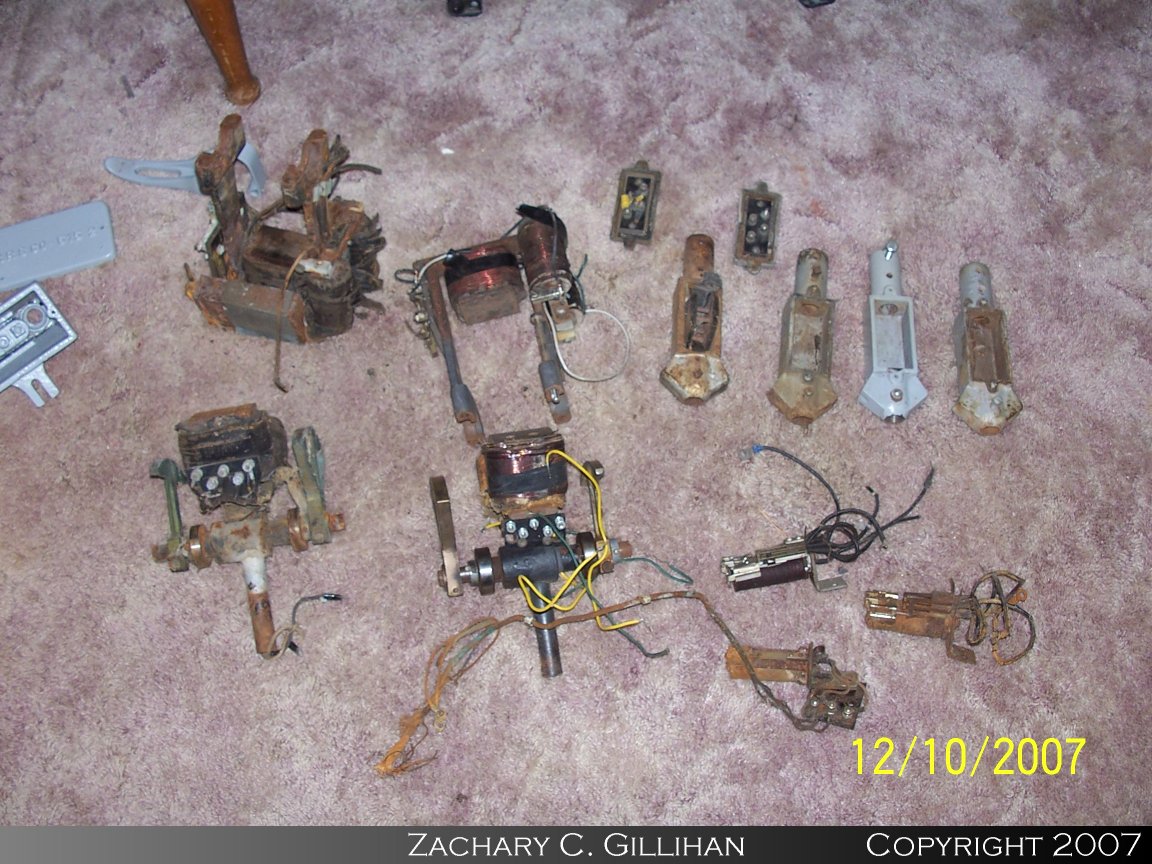

Parts
|

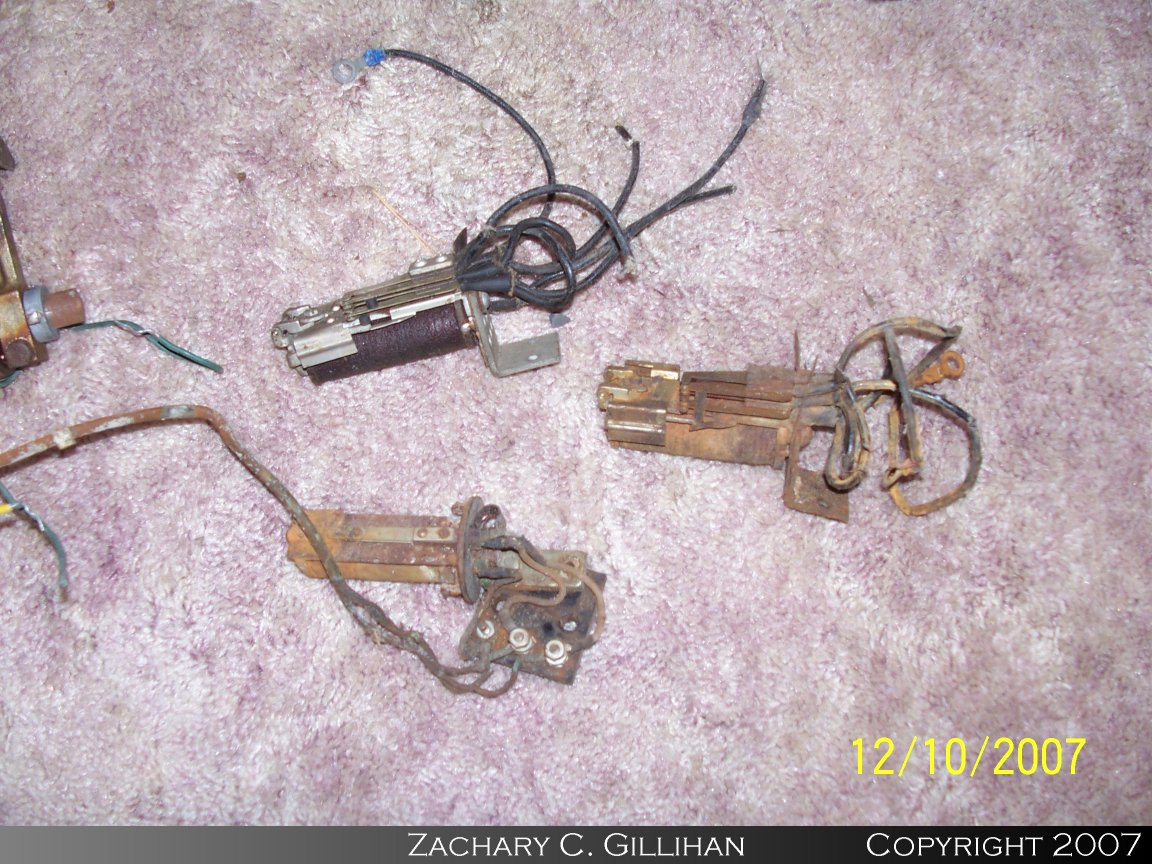

Relays
|

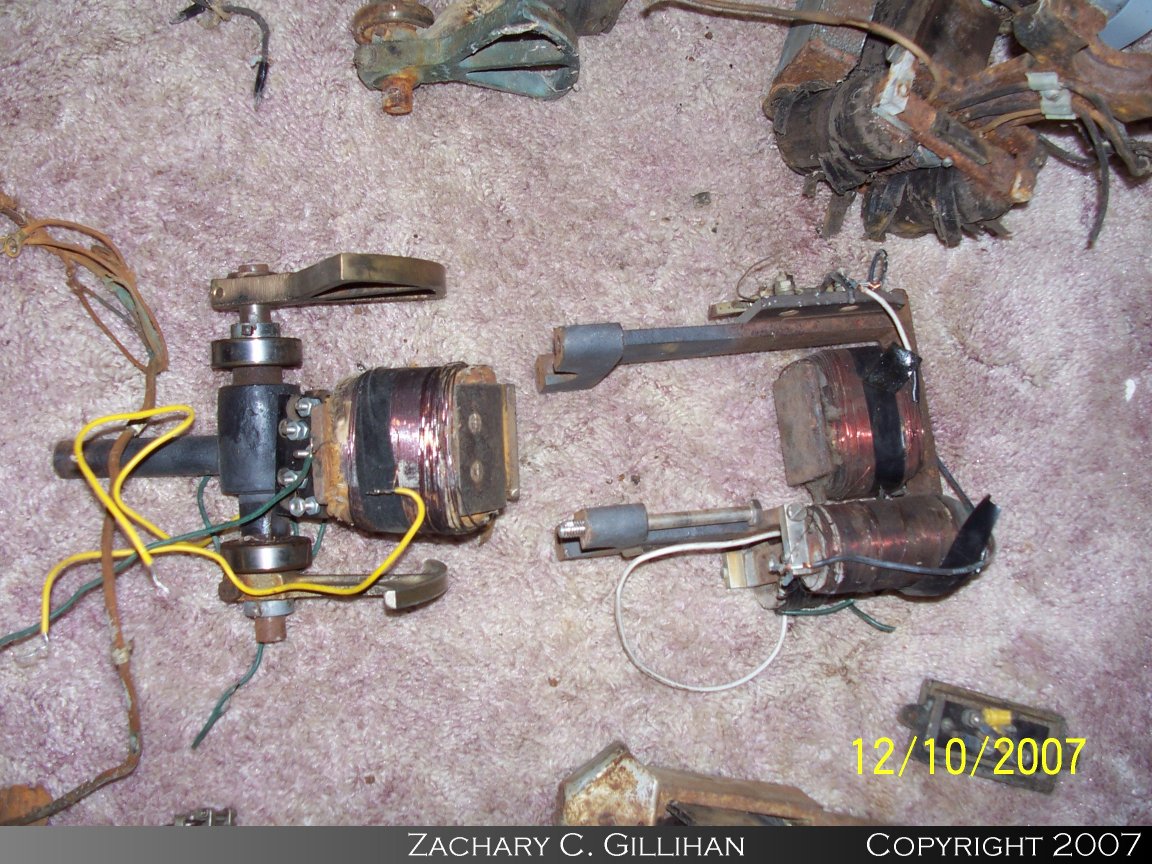

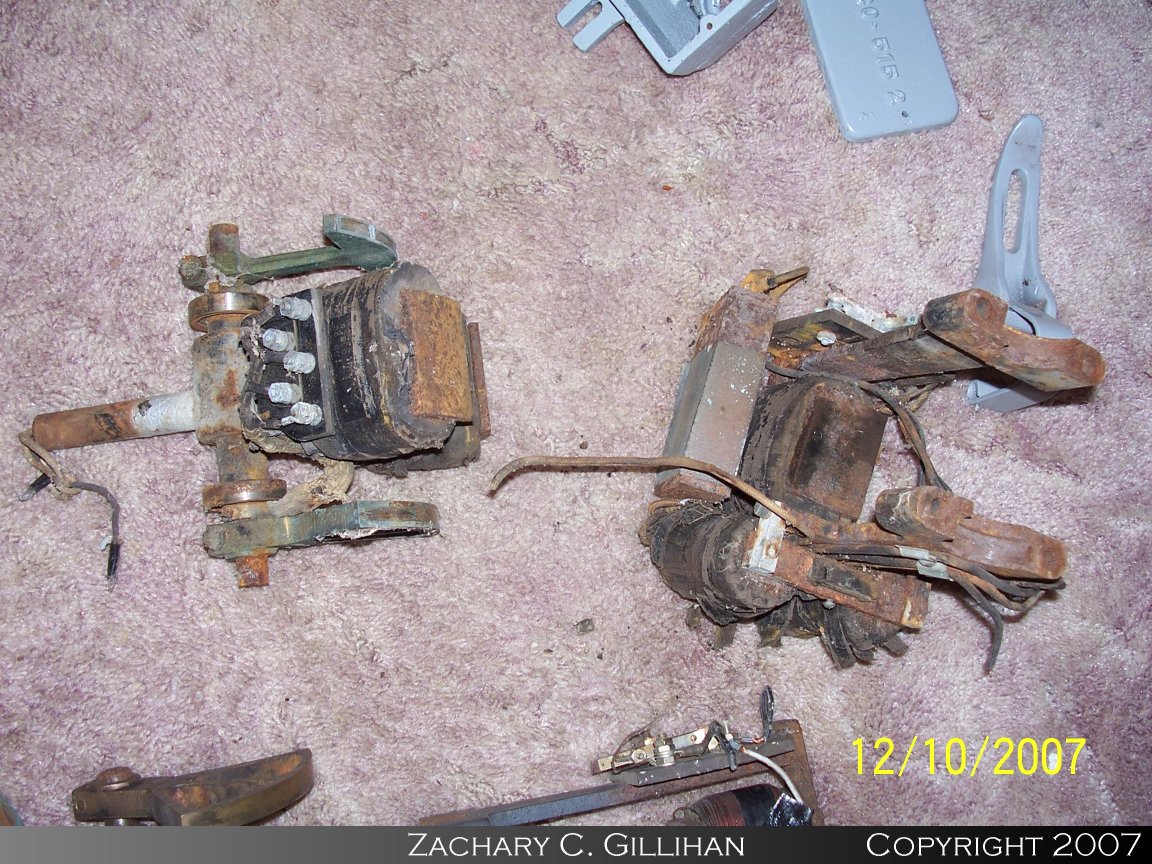

Wigwag #1
|
Wigwag #2
|

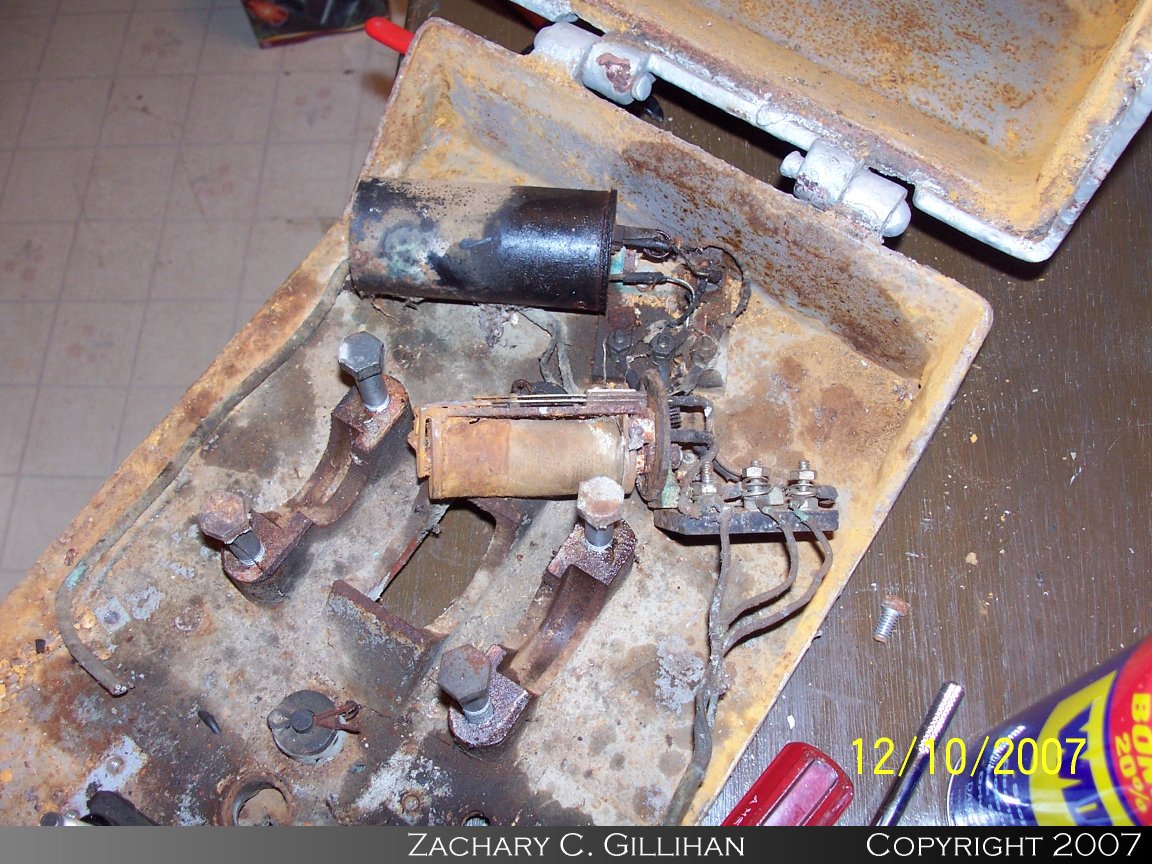

Wigwag #1

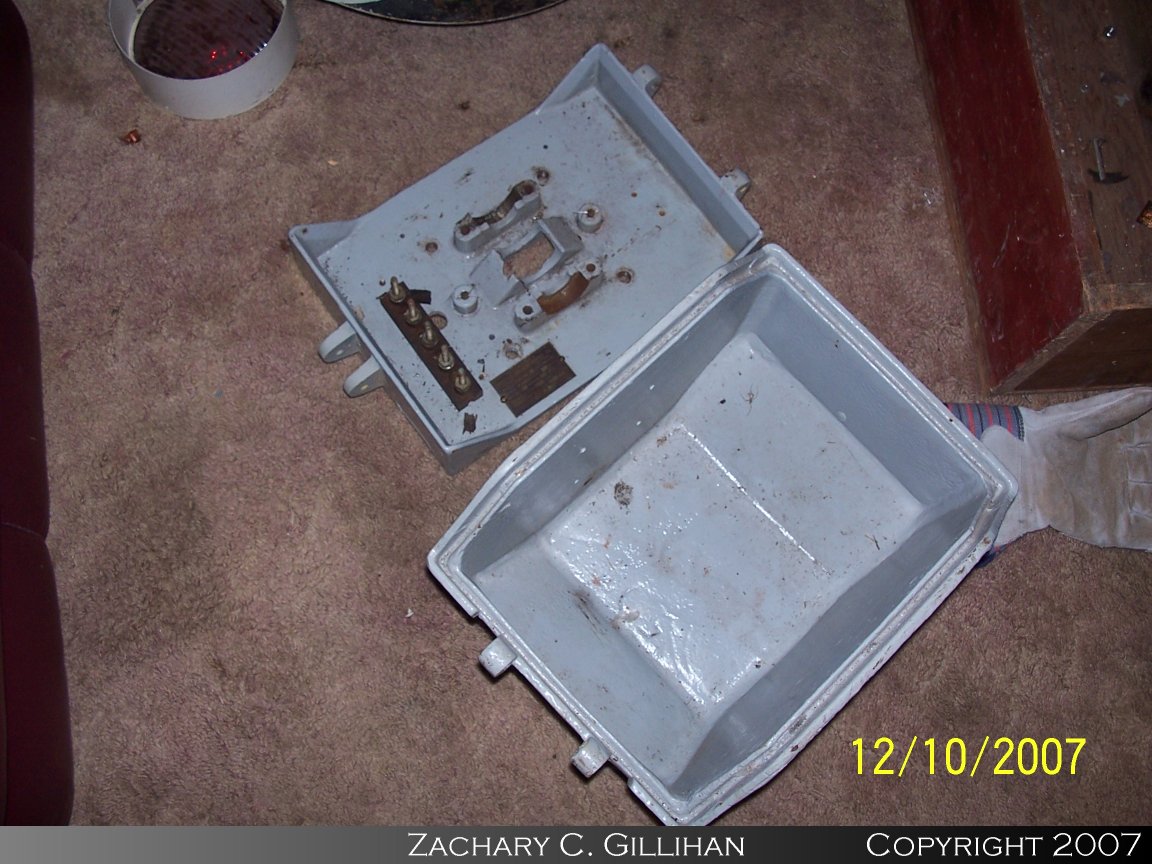

Case
|

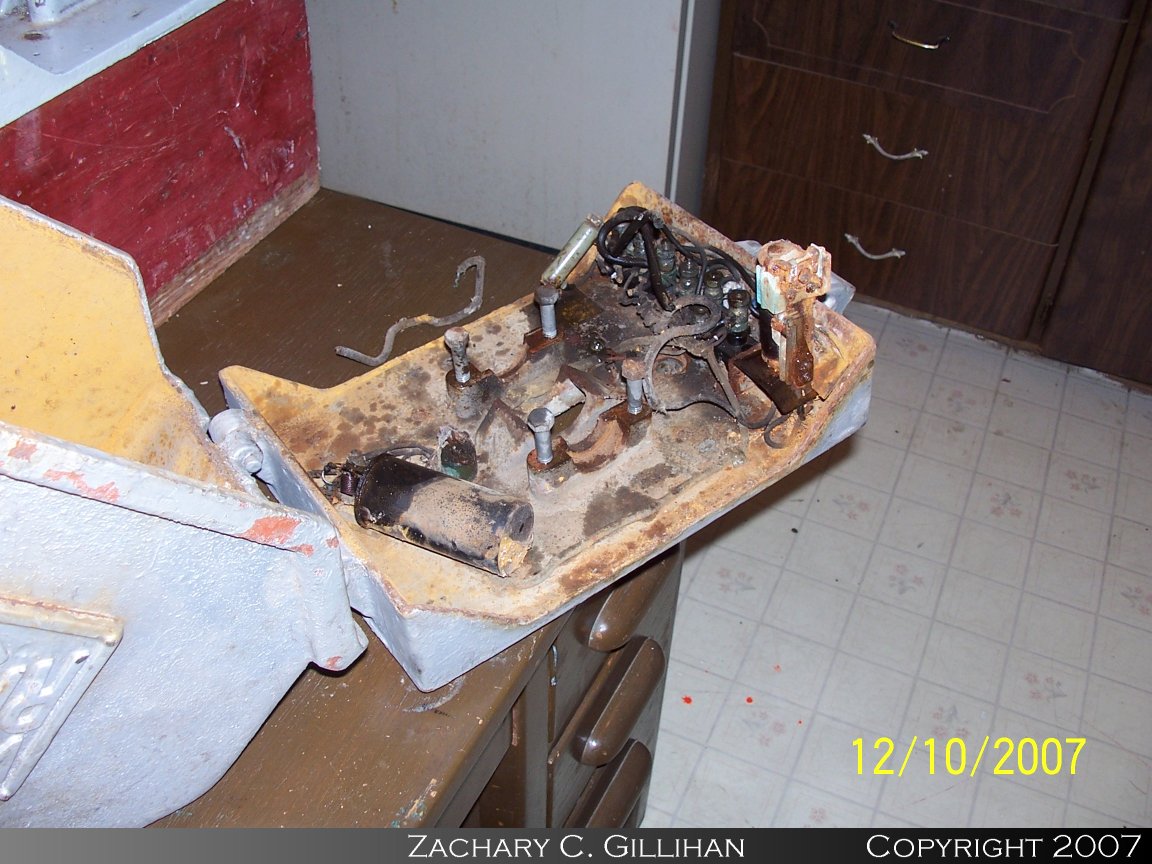

Wigwag #2
Case
|

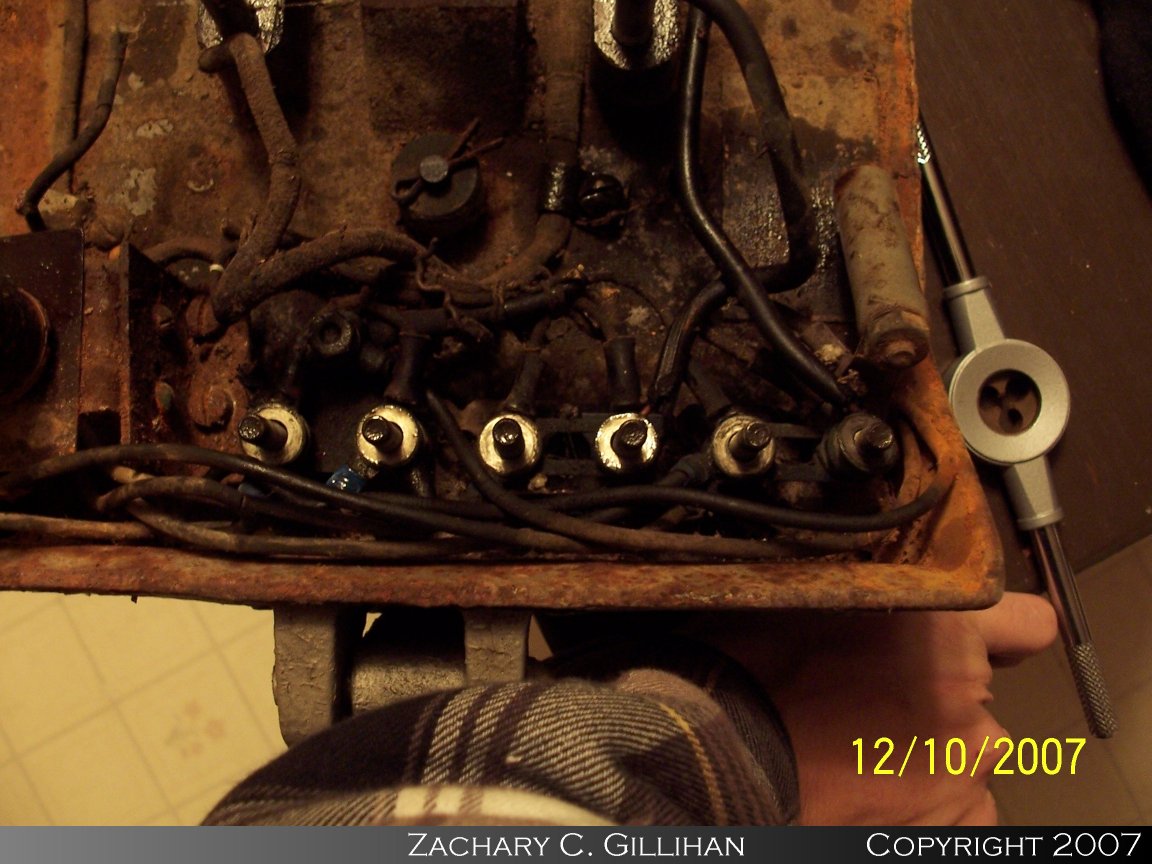

Wiring Terminal
|
Pole Changing
Relay
|

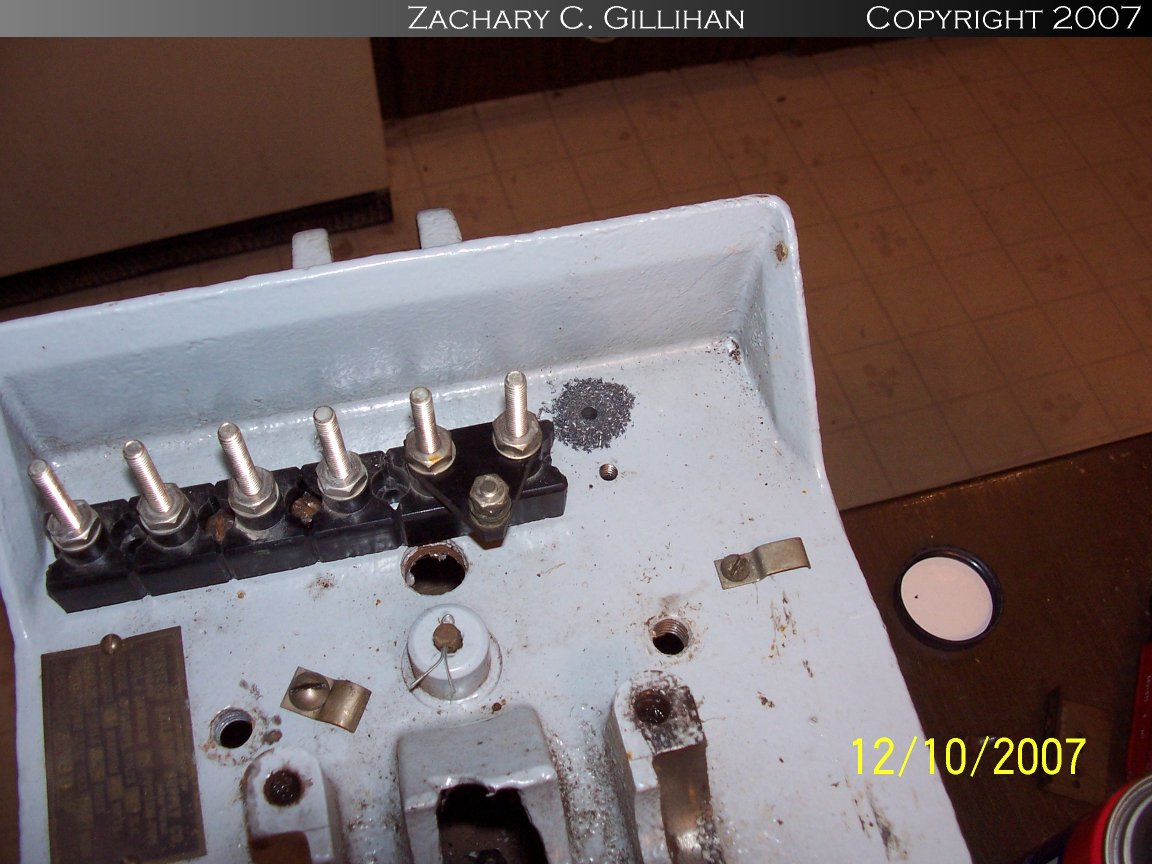

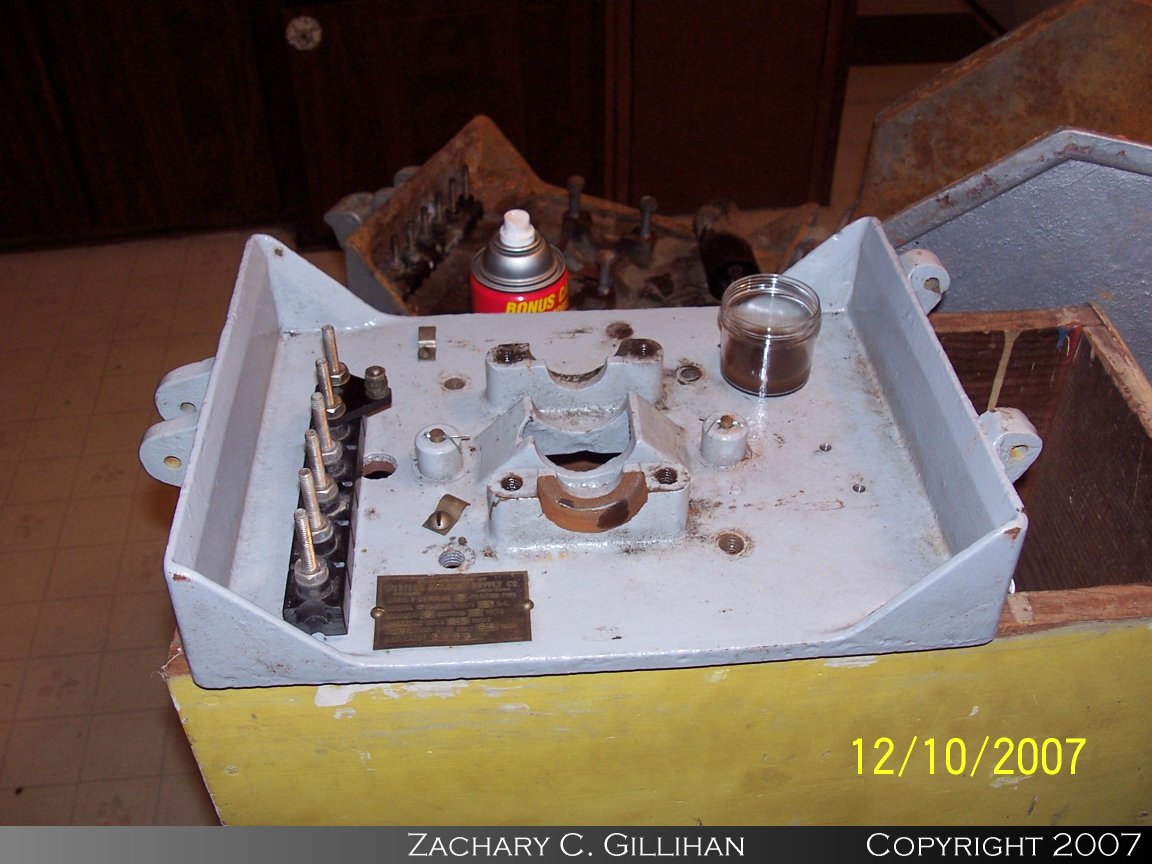

New Terminal
Installed
|
Bracket Removed
|

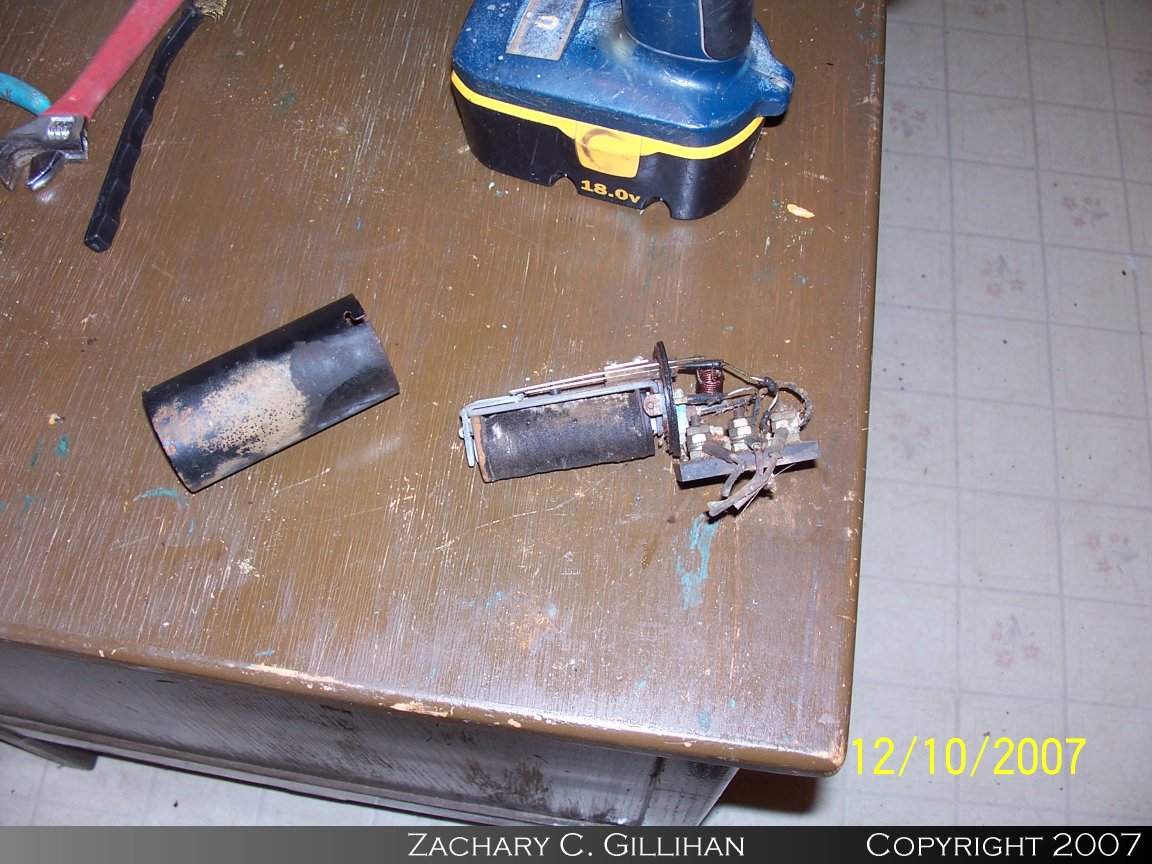

Reserve Light
Relay
|
Drilling
|
Tapping
|

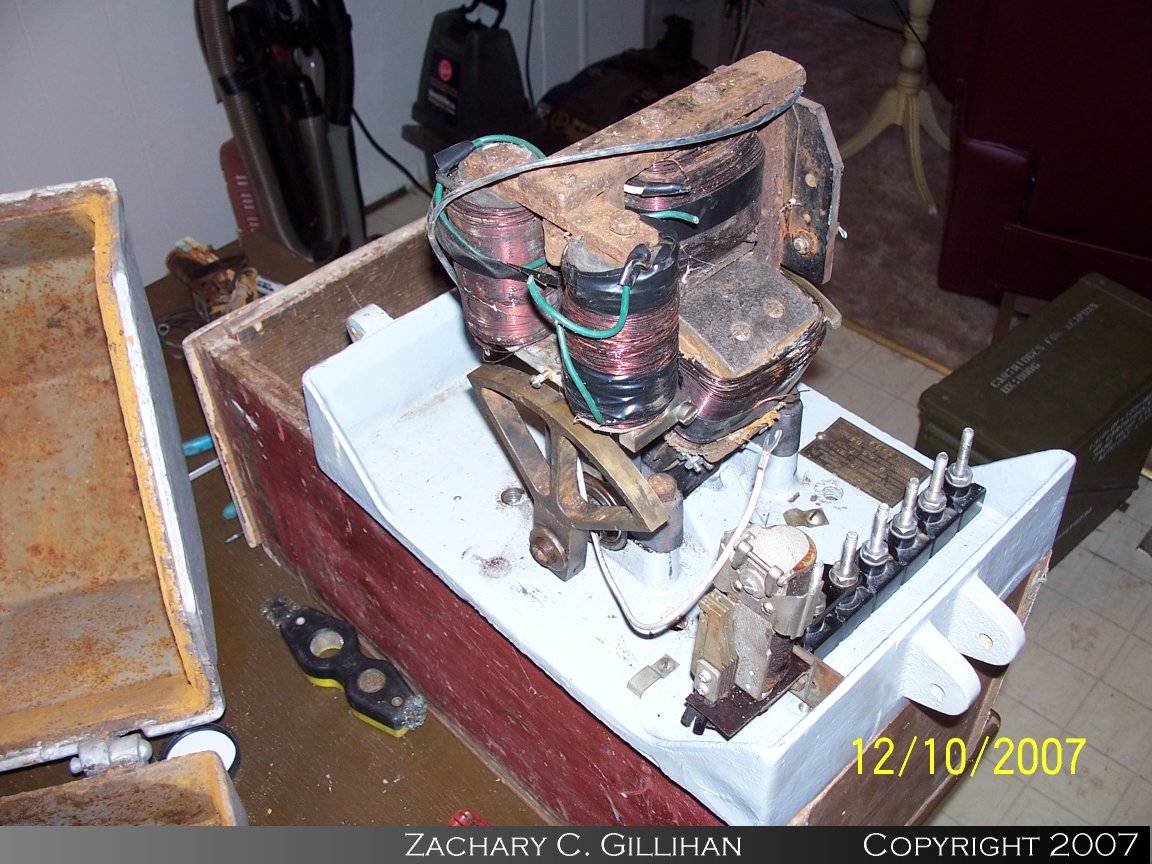

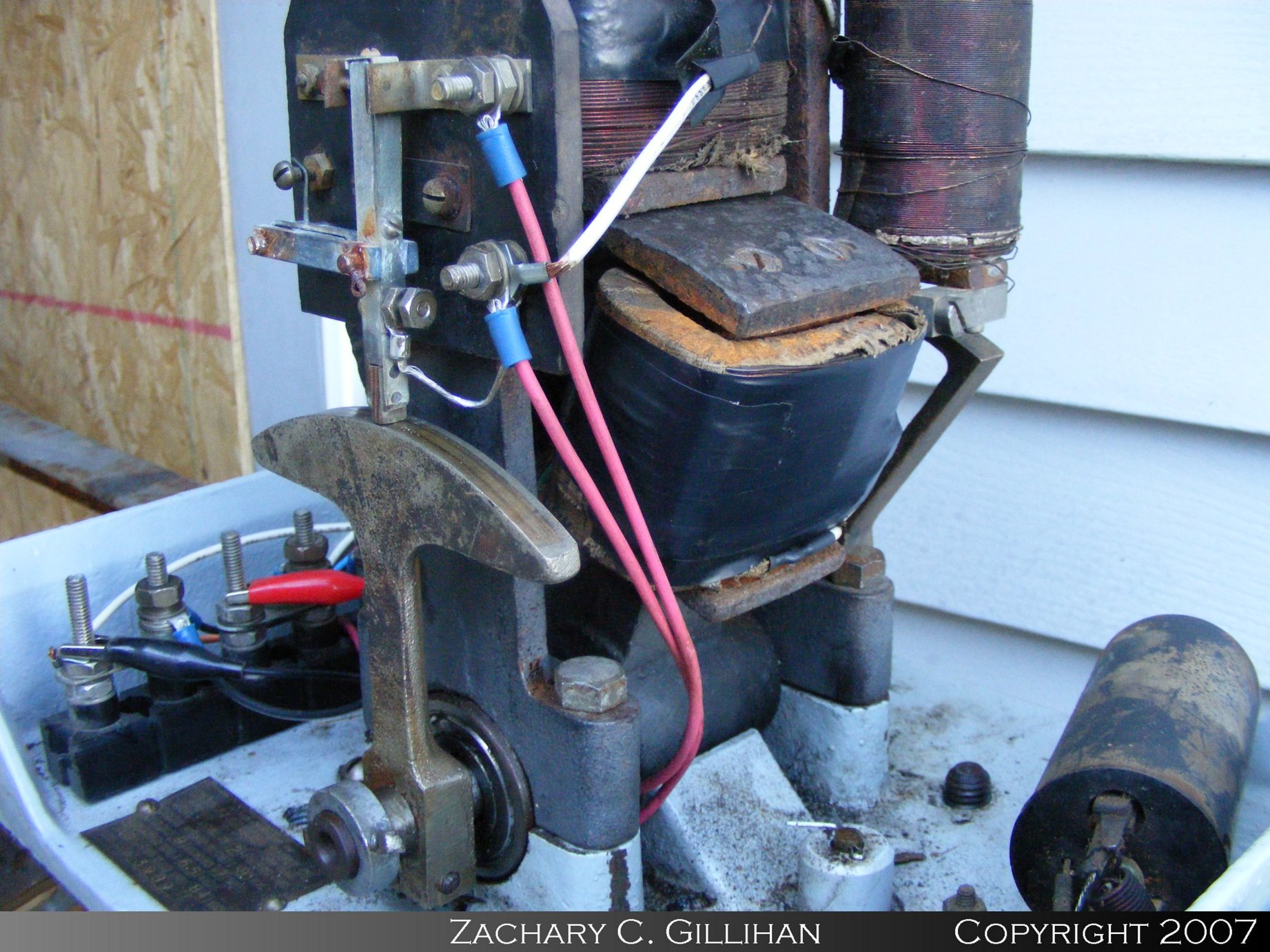

Motor Installed
|
Brakes
|
Reserve Light
Relay
|
Needs Rewiring
|

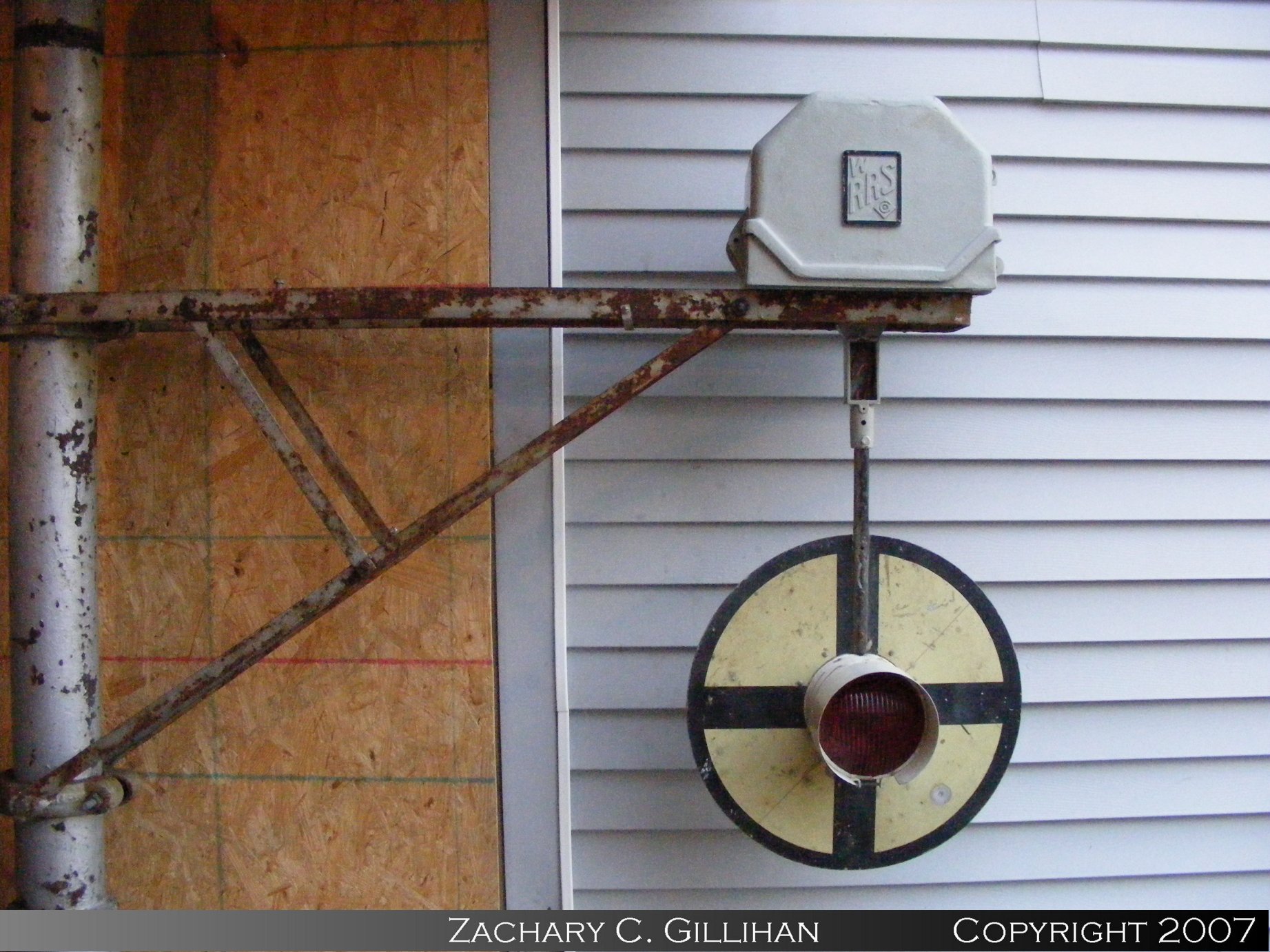

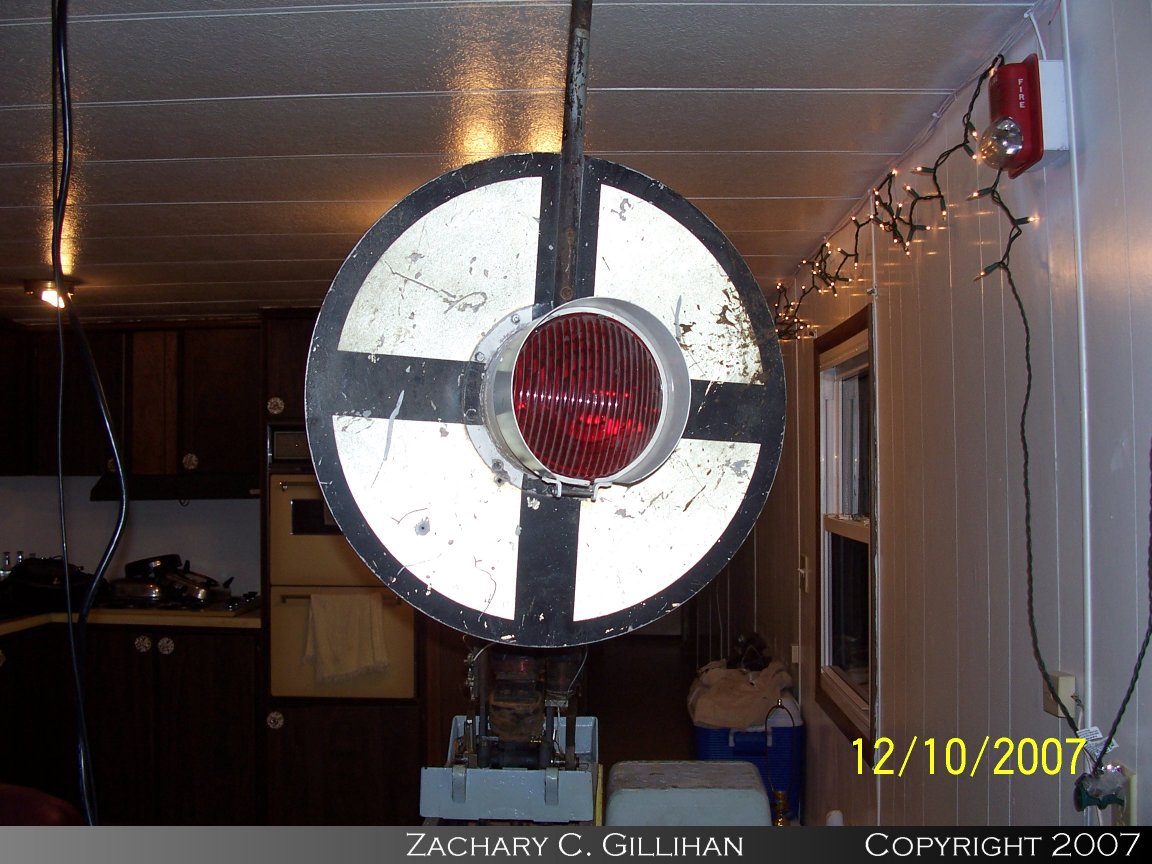

Wigwag Banner
|

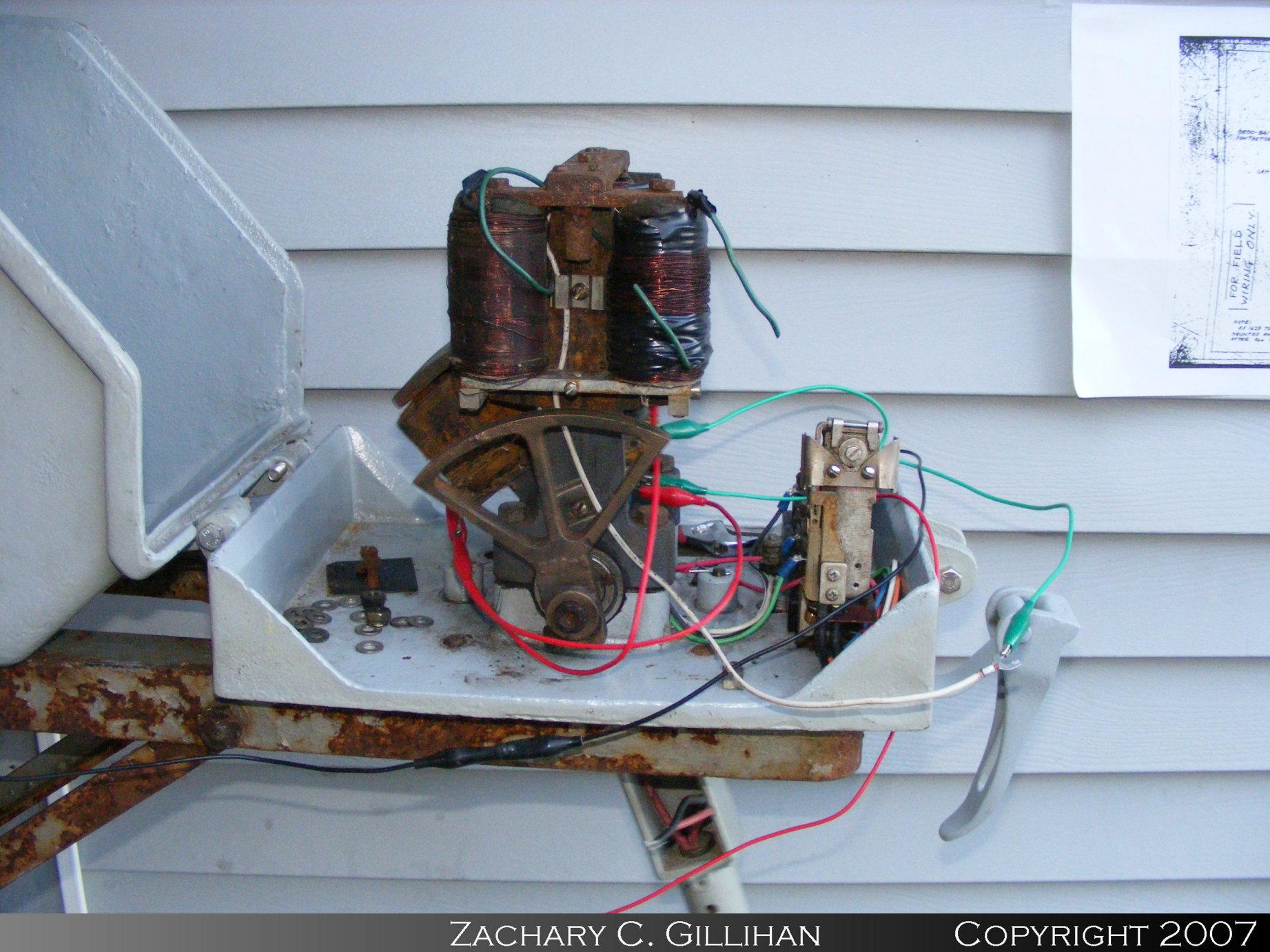

Temp Stand
|

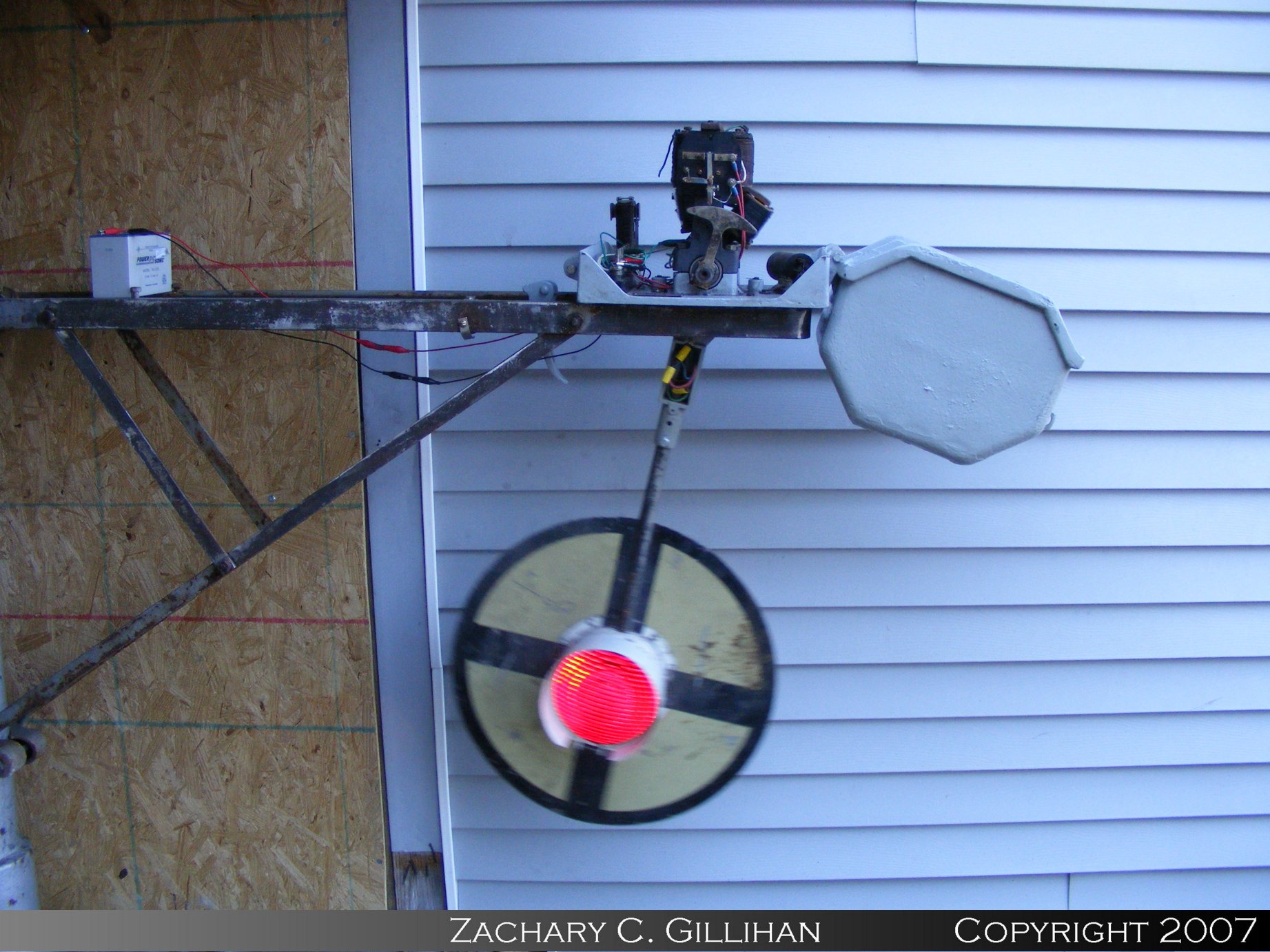

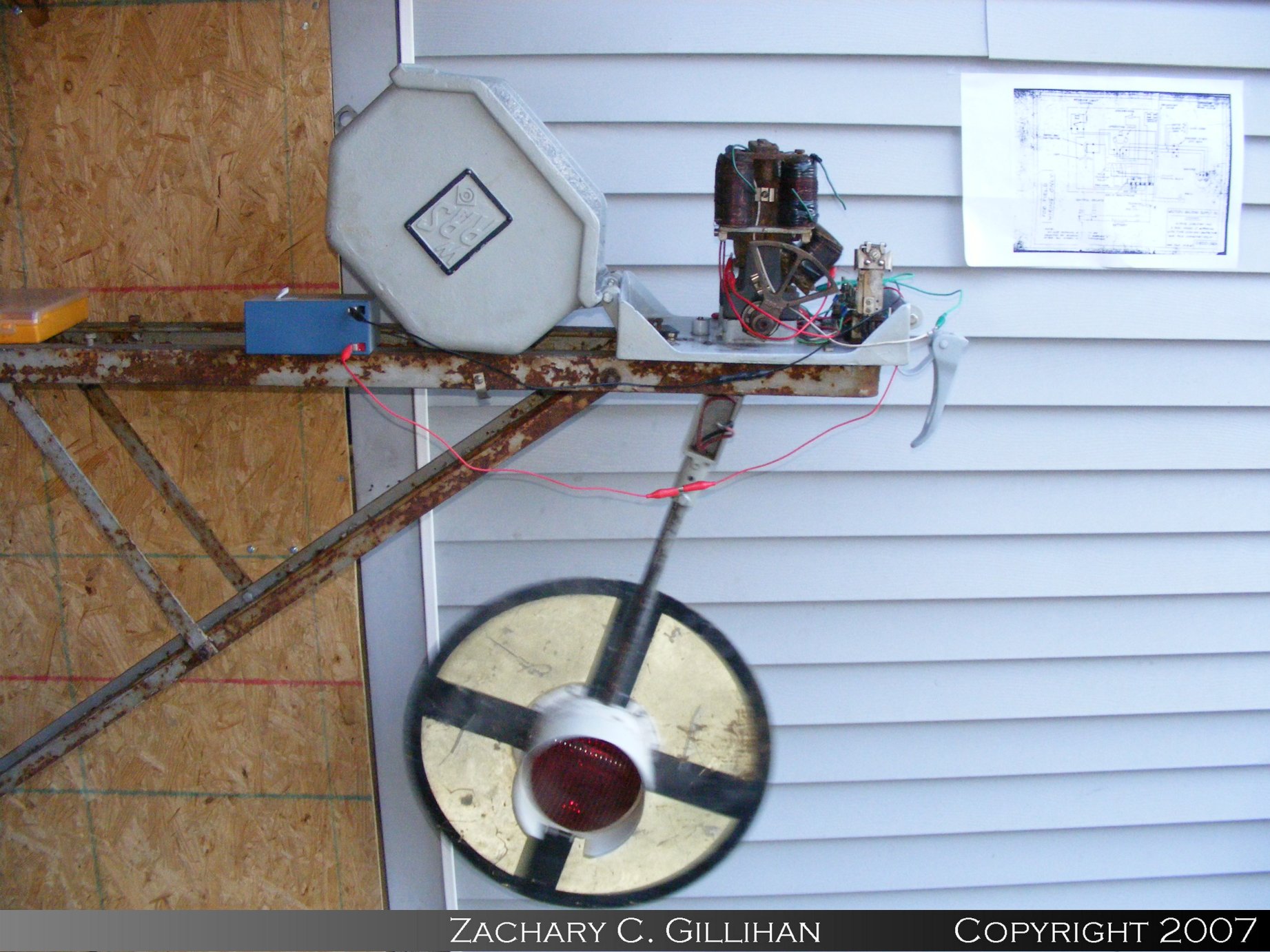

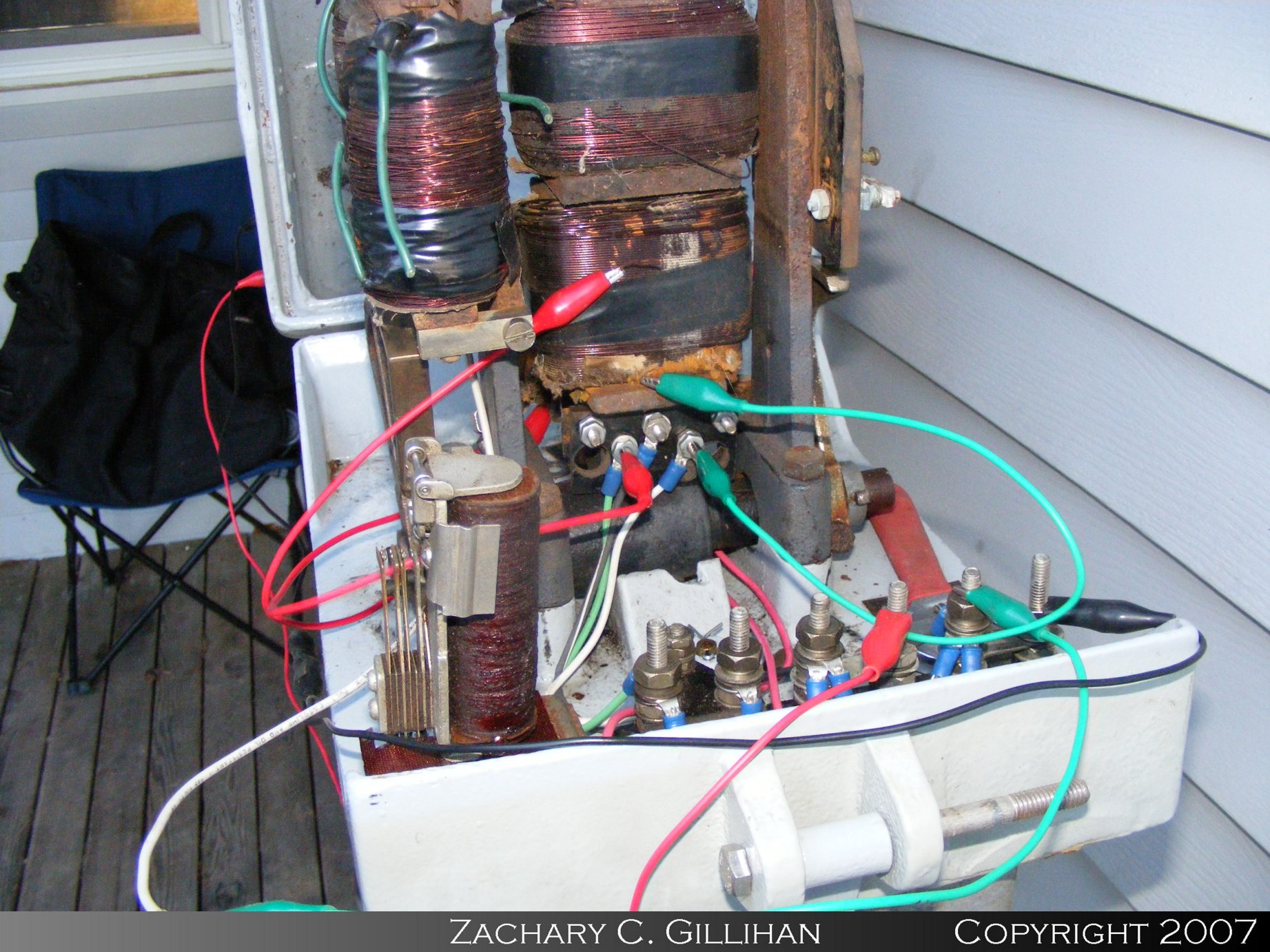

Swing Test
|

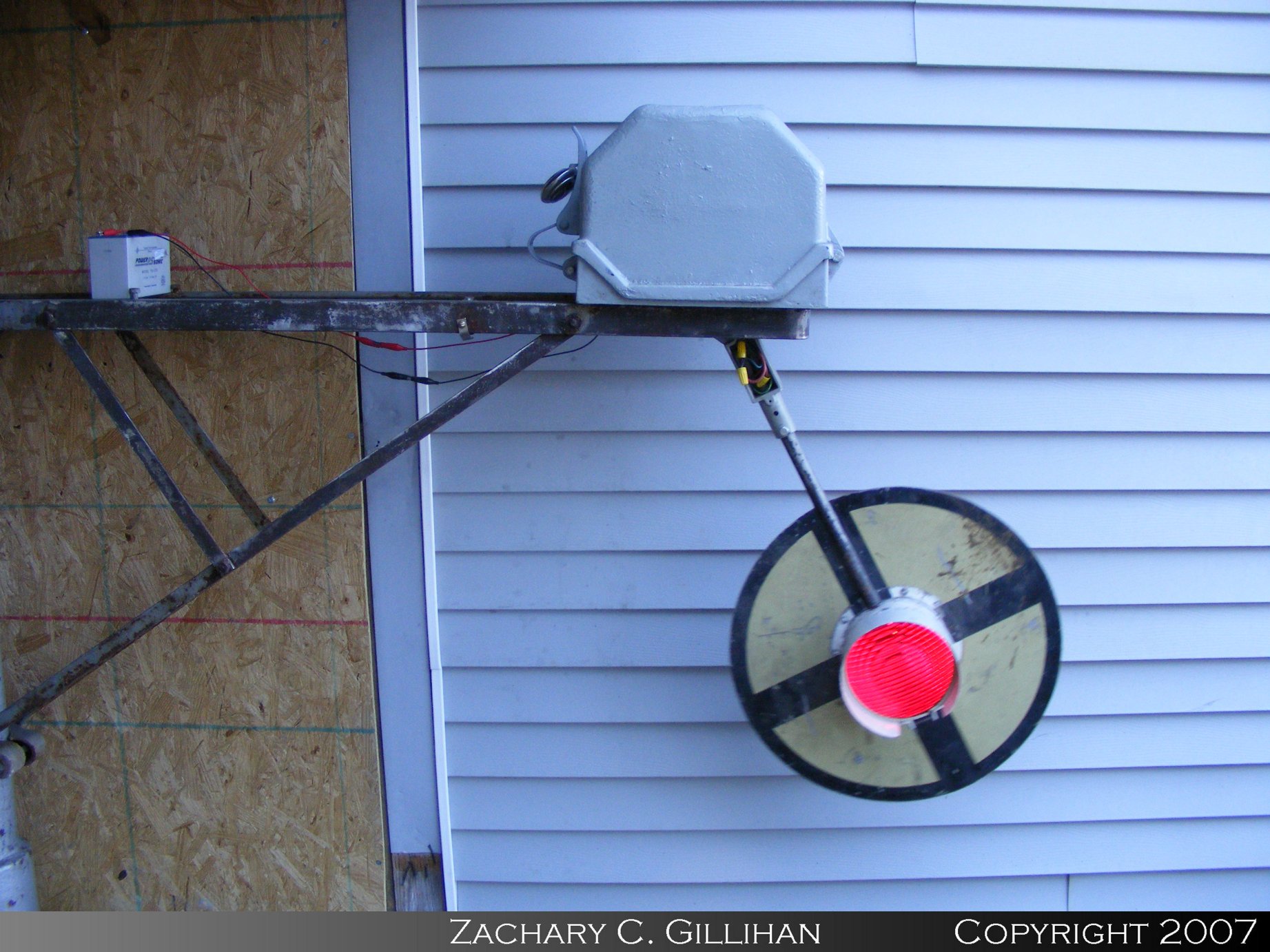

Cover Installed
|
IT WORKS!
|
Jumpers
|
Pole Relay
Installed
|

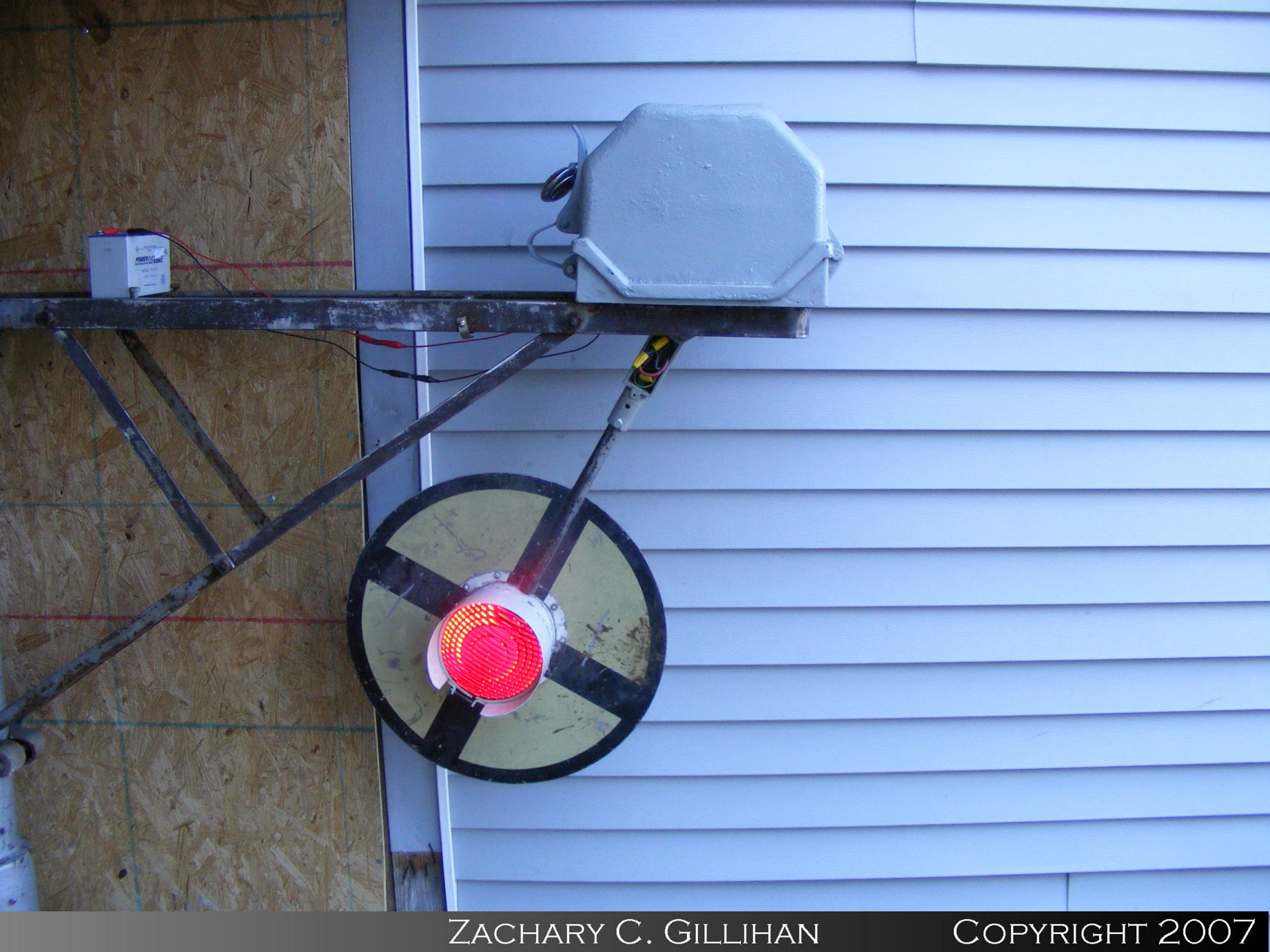

Lamp Works
|
Swing Swing
|
|
Wired Up
|
|
Contactor
|
Builders Plate
|
|
