Project #0735
We are installing several signals at ZCG Utility Scrap in Beaufort Mo. This project is Phase I of several Phases. Phase I is to install items[ 1,2,3,4,7 ] and the conduit for items [ 5,6,8 ]. Phase II which is project #0736, is expected to start in the spring of 2007 and will run along side of Phase I. We did not combine them becuase of the Items we are to install and the timming. Phase II is installing items [ 5,6,8 ]. We are also wiring Item #7 which is our Main Power Transfer Cabinet. We have changed plans for the signal arrangement and are adding another cabinet which will be the Secondary Power Transfer Cabinet. This new cabinet and signals will be Project #0736. Below are the PDF files that show all the connections in the Main Power Transfer Cabinet and the proposed version:
Current Configuration
Proposed Configuration


Item: 1- Train Order Signal
Item: 2- US&S Subway Signal
Item: 3- Safetran 2 Aspect Dwarf
Item: 4- L&W Signal
Item: 5- US&S Searchlight with lower Cabinet
Item: 6- Crossing Signal with Bell
Item: 7- GRS Cabinet (Power Supplies and Controllers)
Item: 8- GRS Cabinet (Crossing Controls for Item: 6)

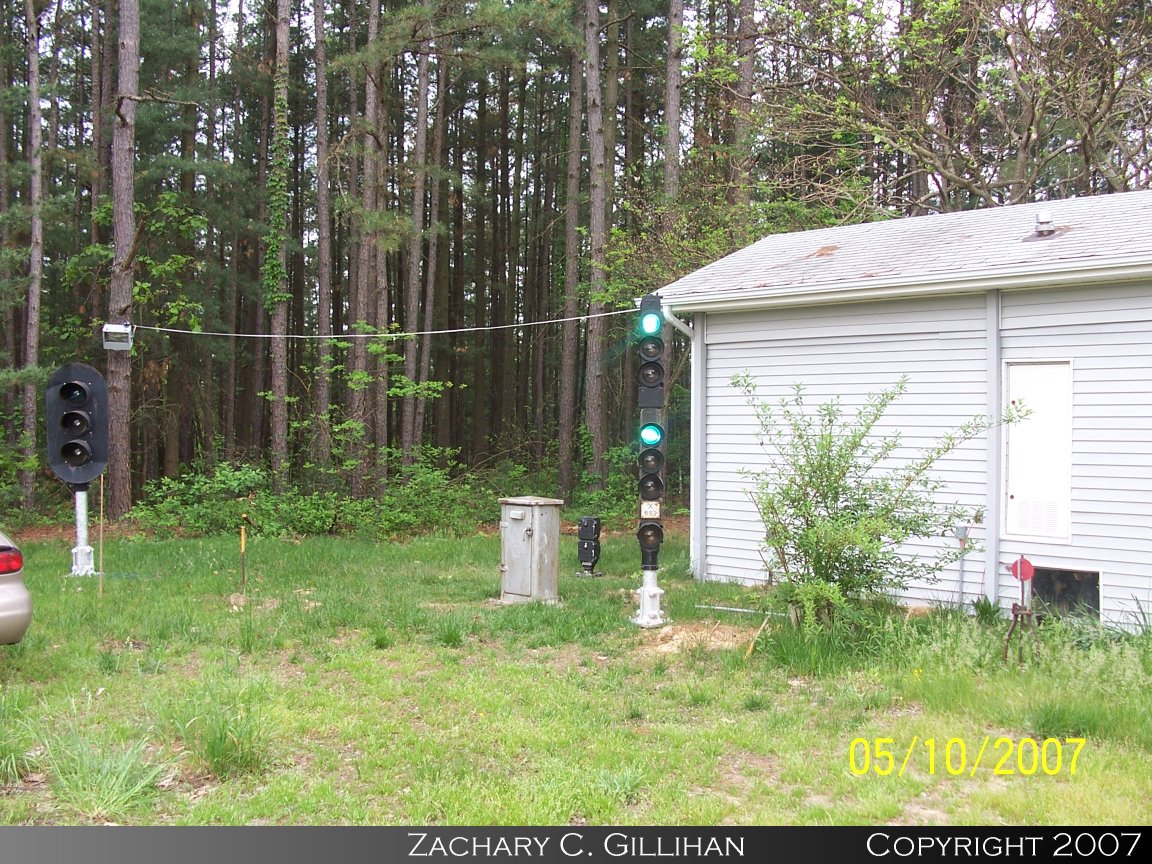

Ready to Install

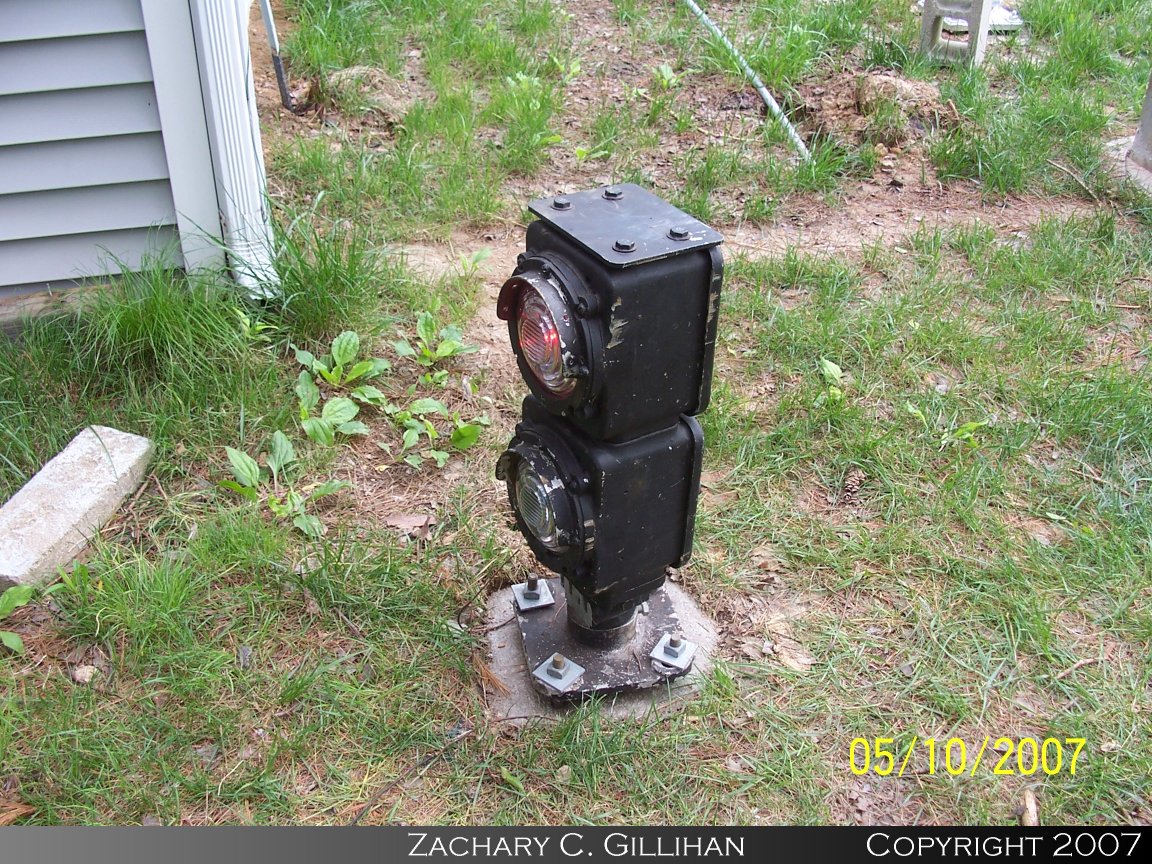

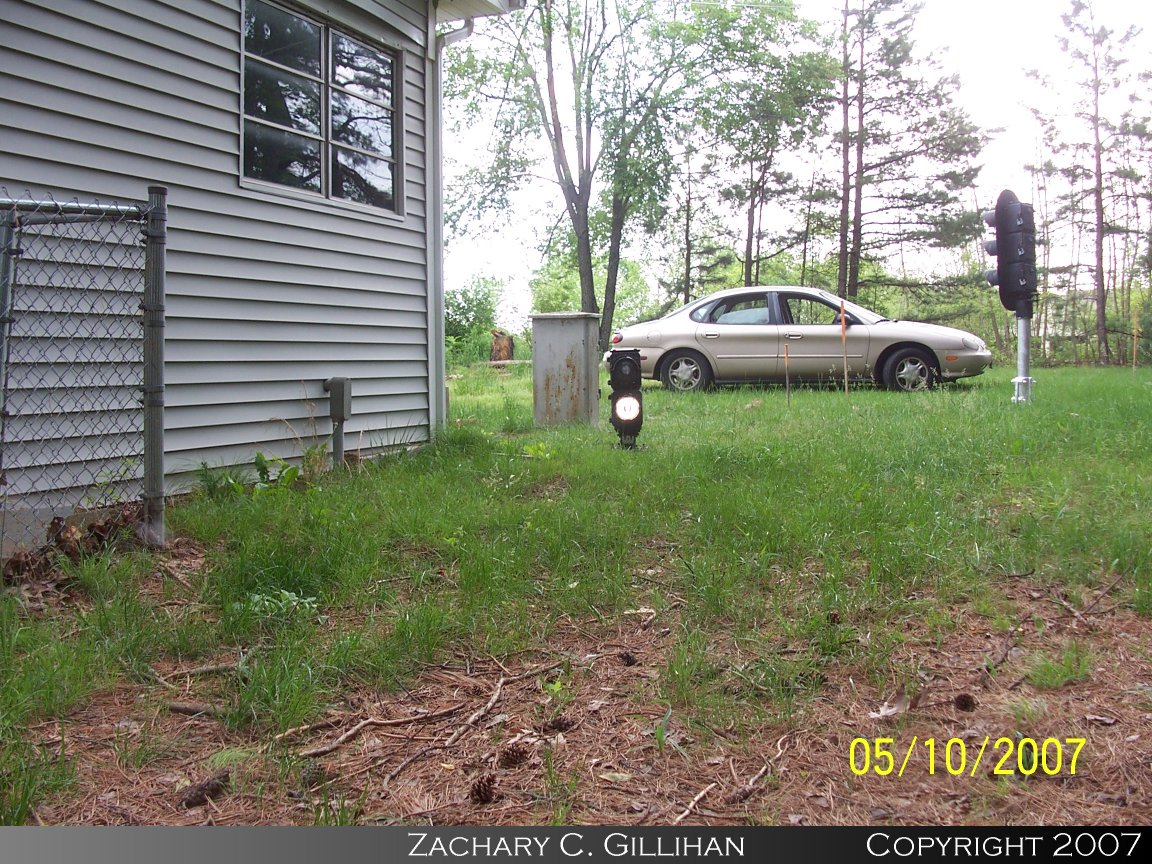

Signal #3
Pulling Wire
HARD!
GOT IT!

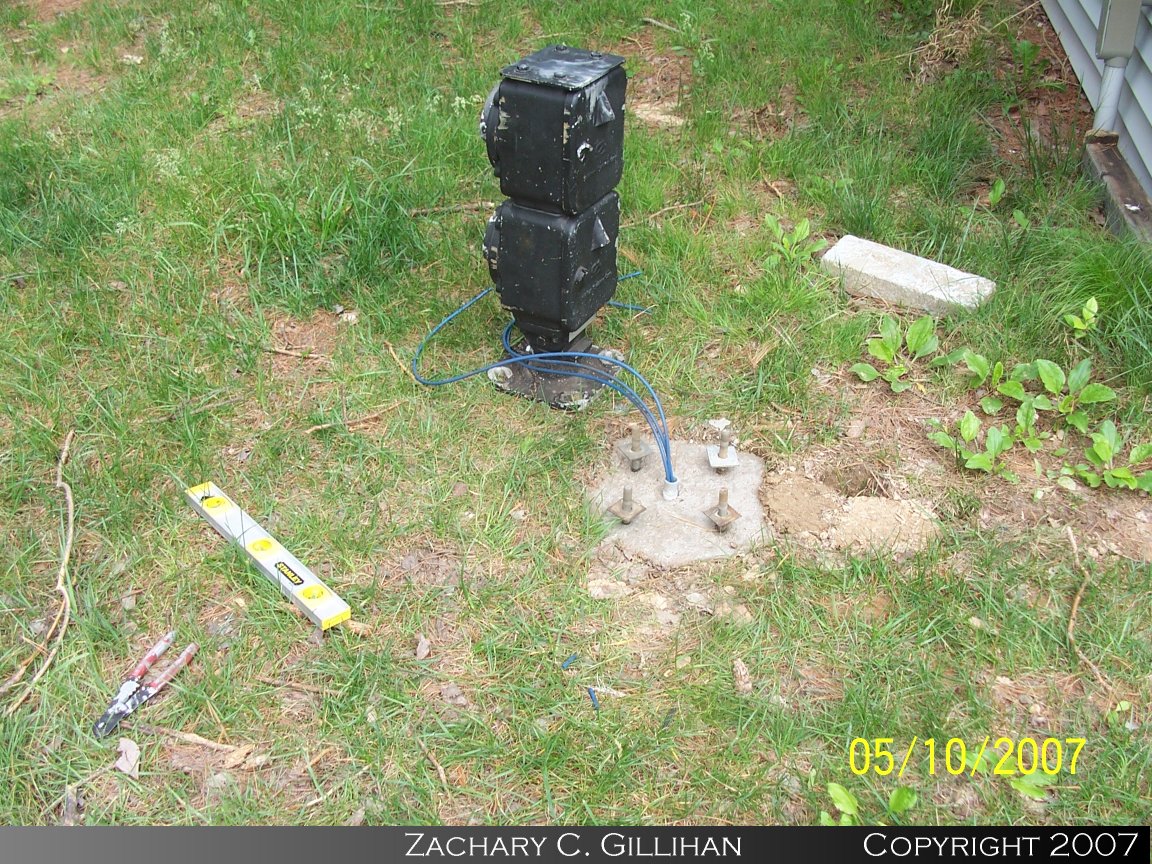

Signal Wires

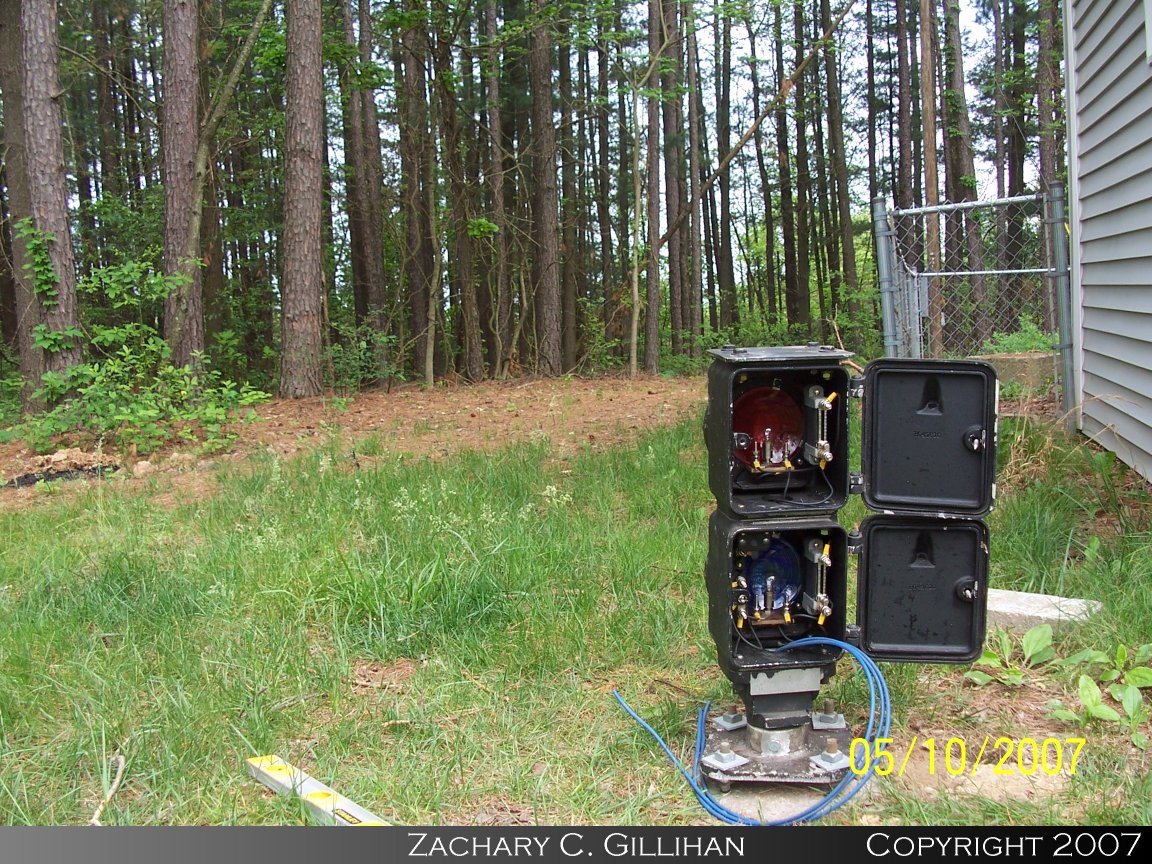

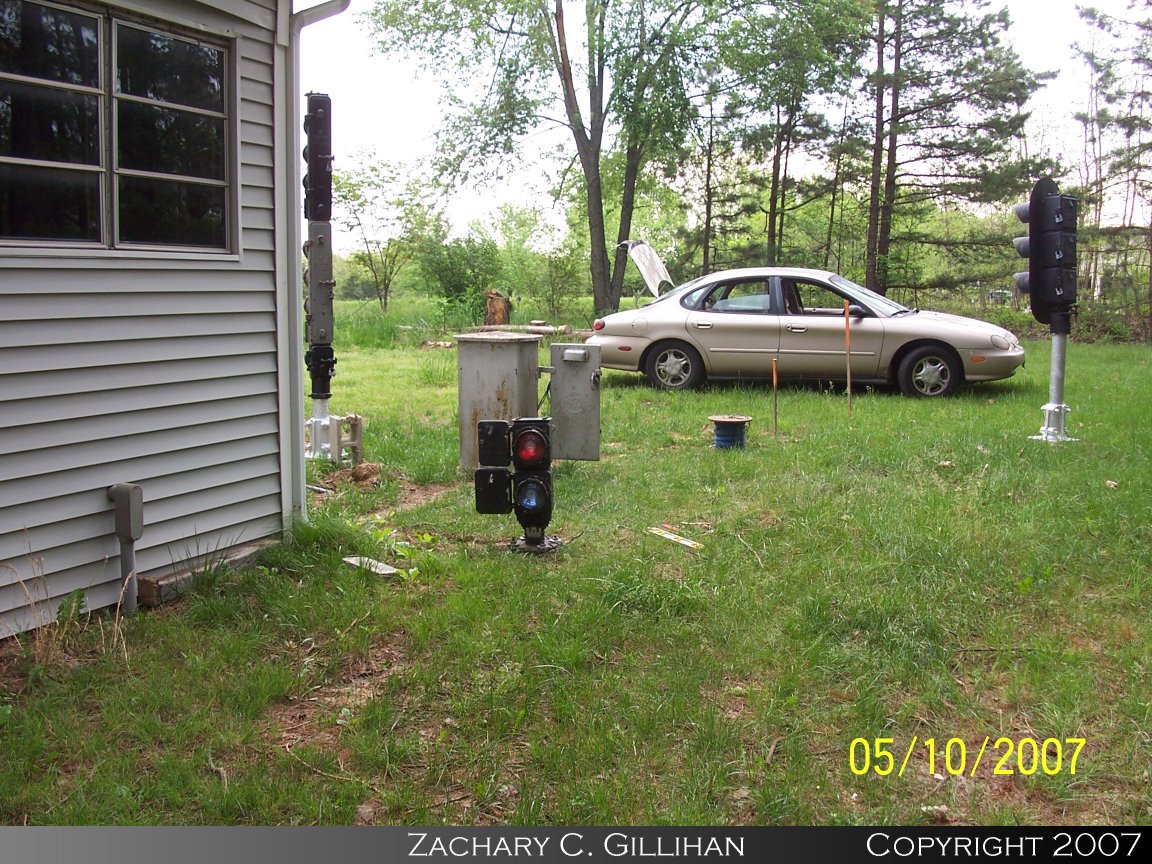

Ready to Install
Signal #3
Facing the woods

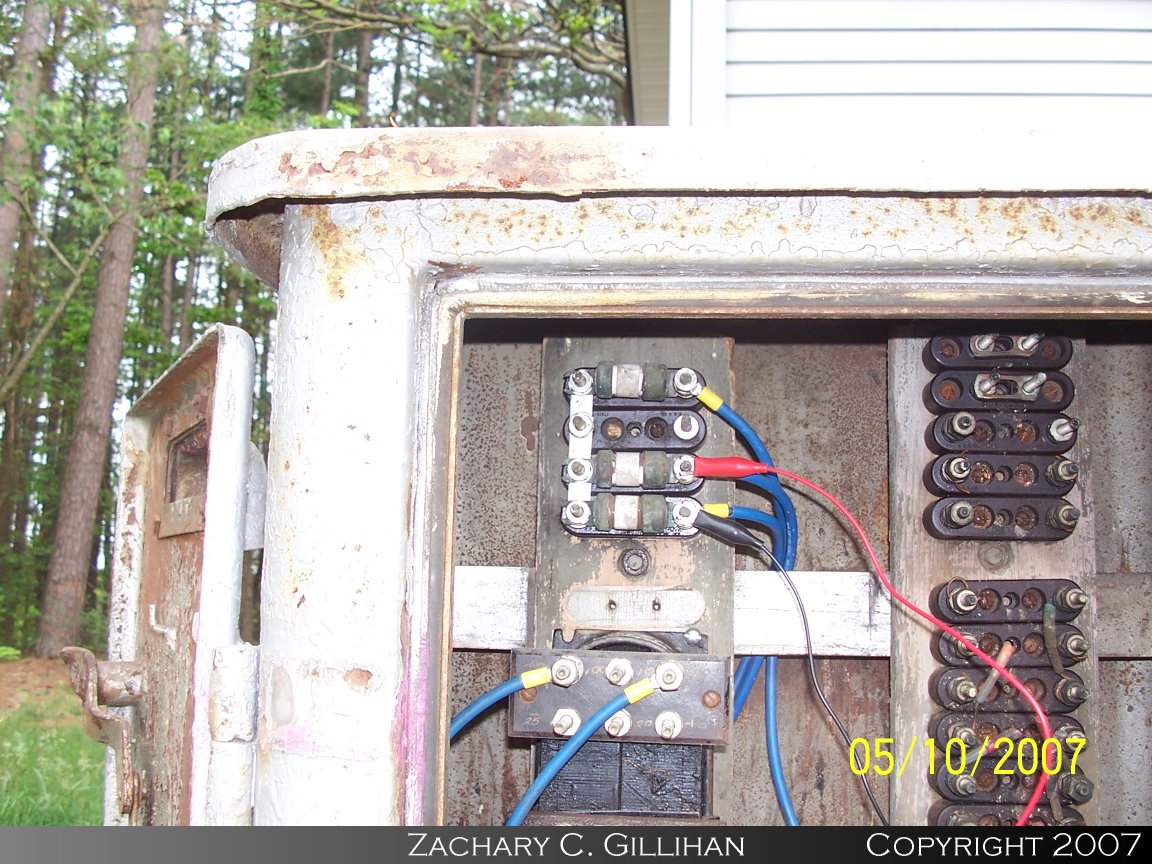

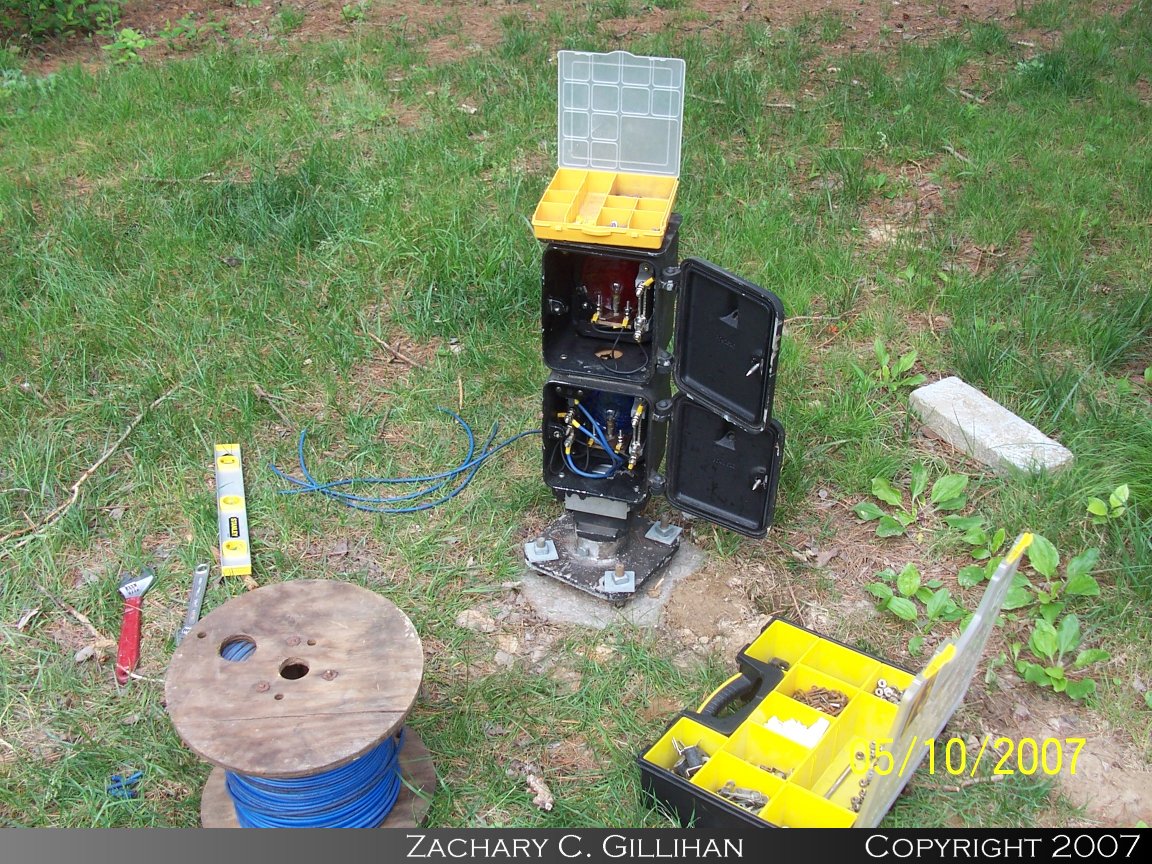

Terminating
Wires

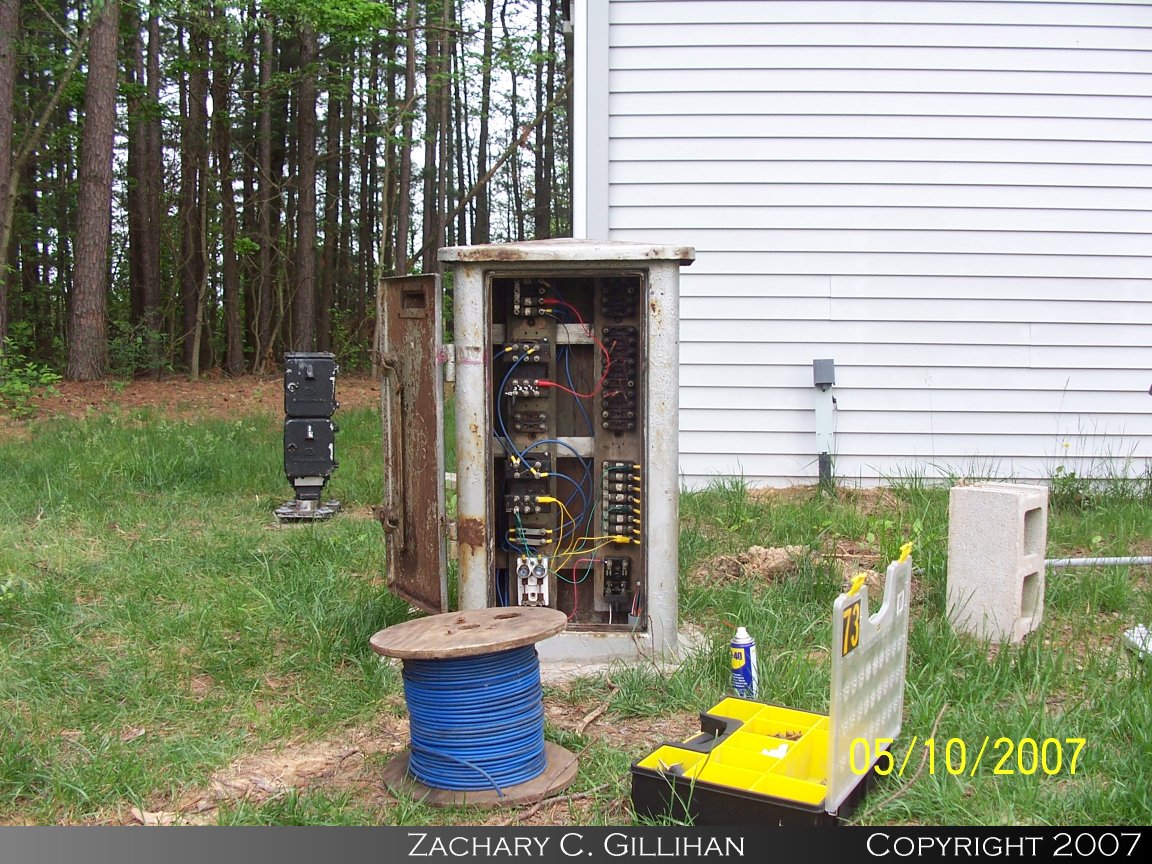

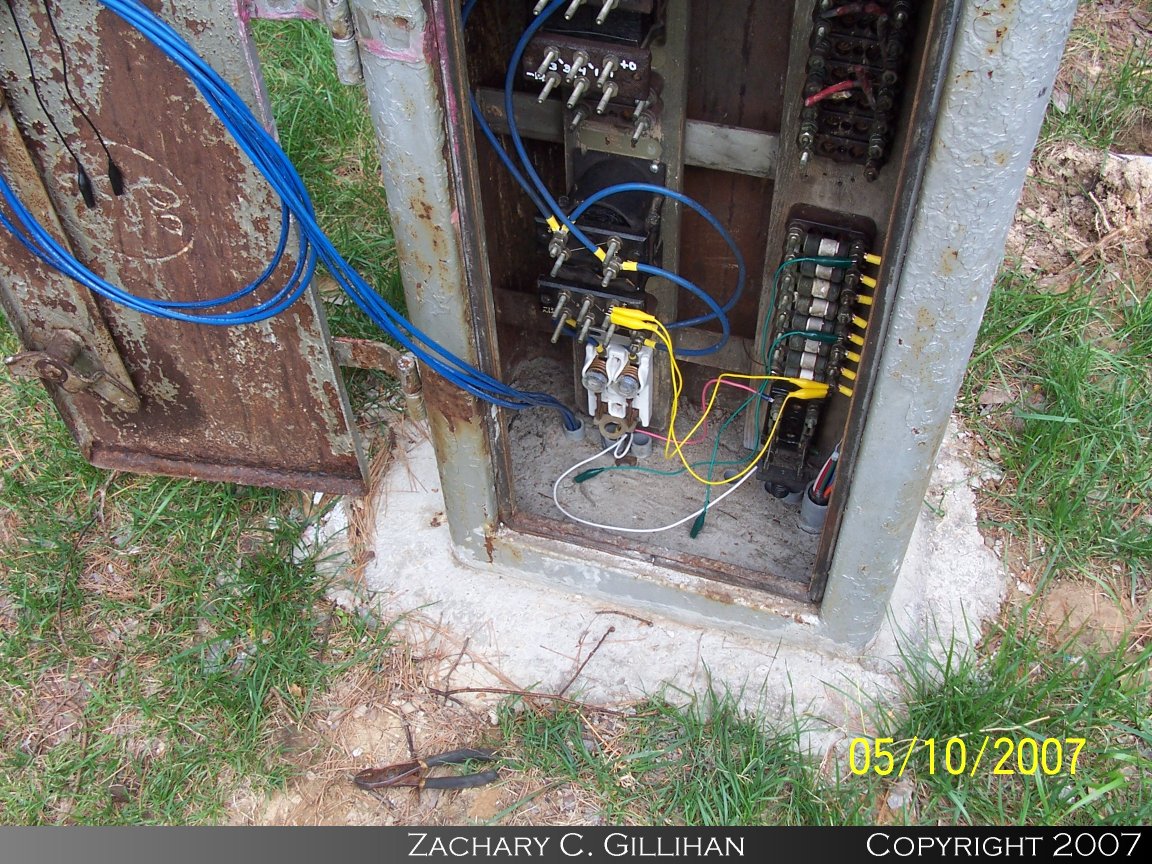

Terminating the Cabinet
Wires
Left room for
one more Aspect

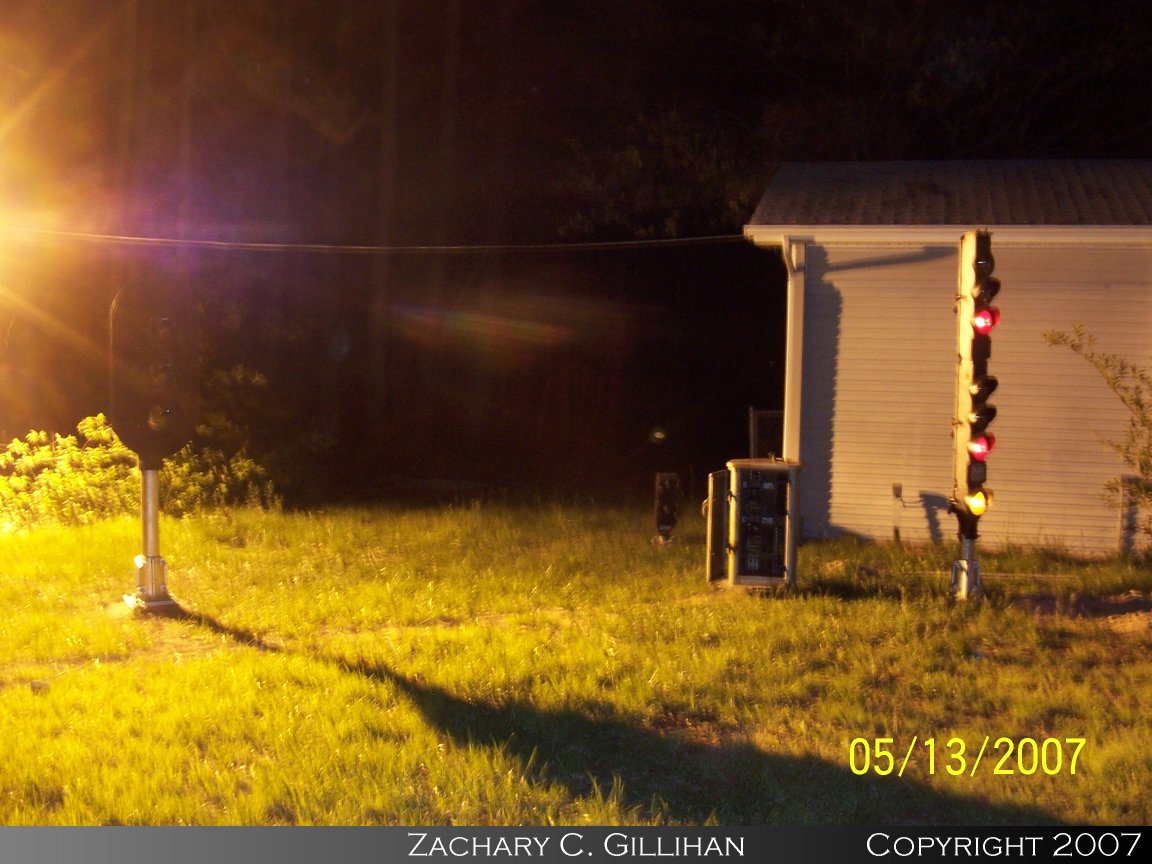

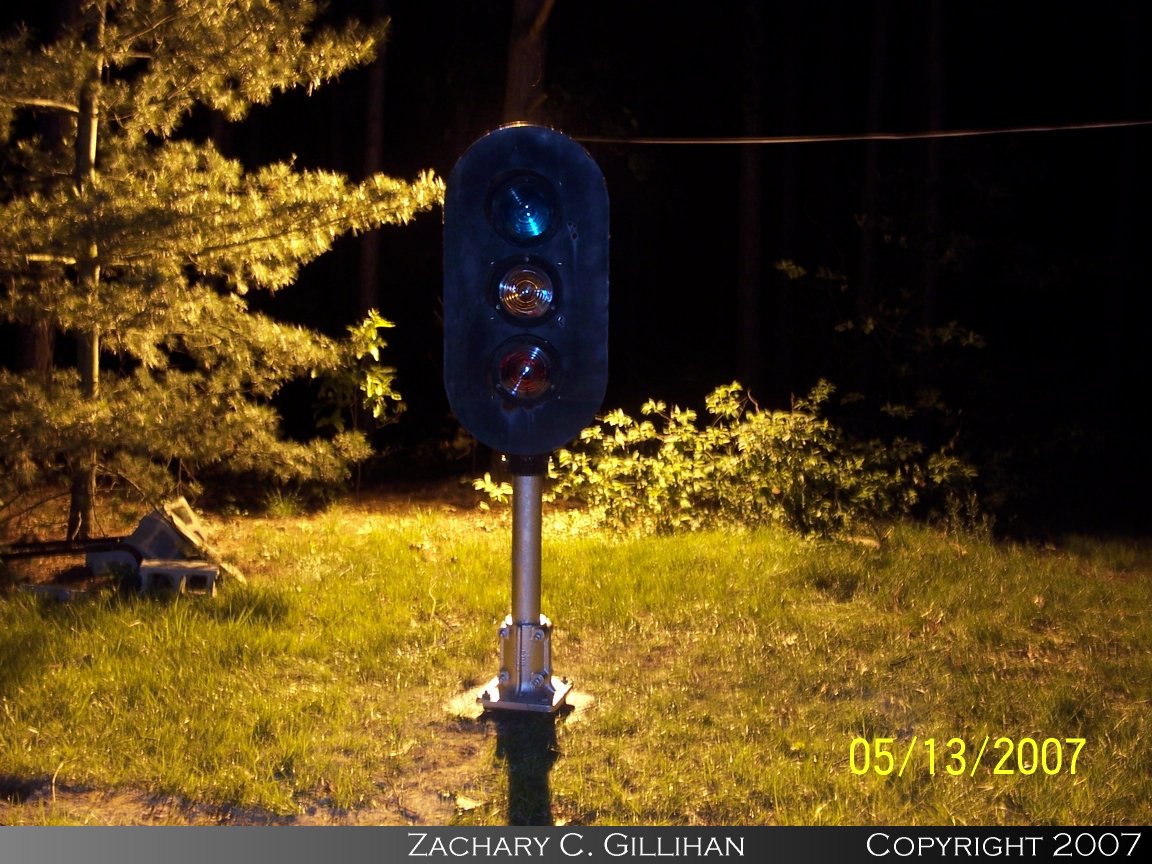

Lunar
Signal #3

Red
Base off the
Ground
Cool

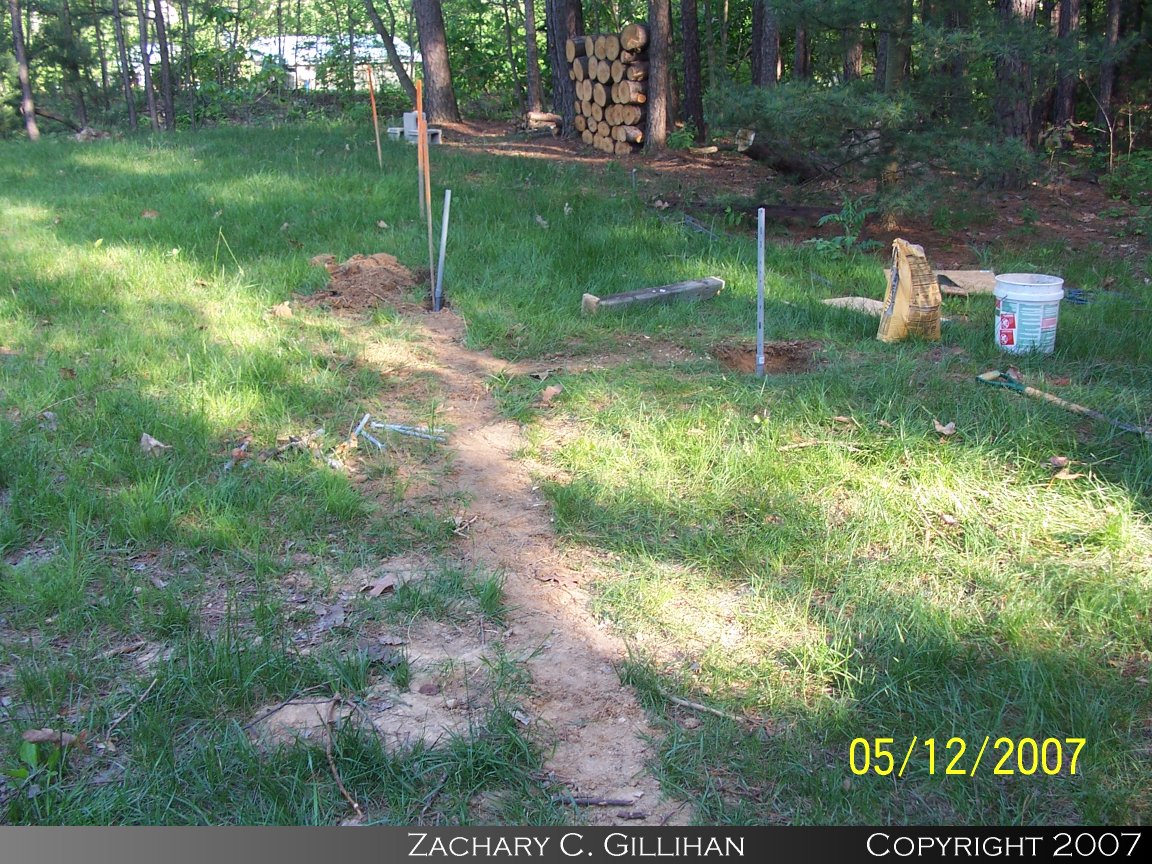

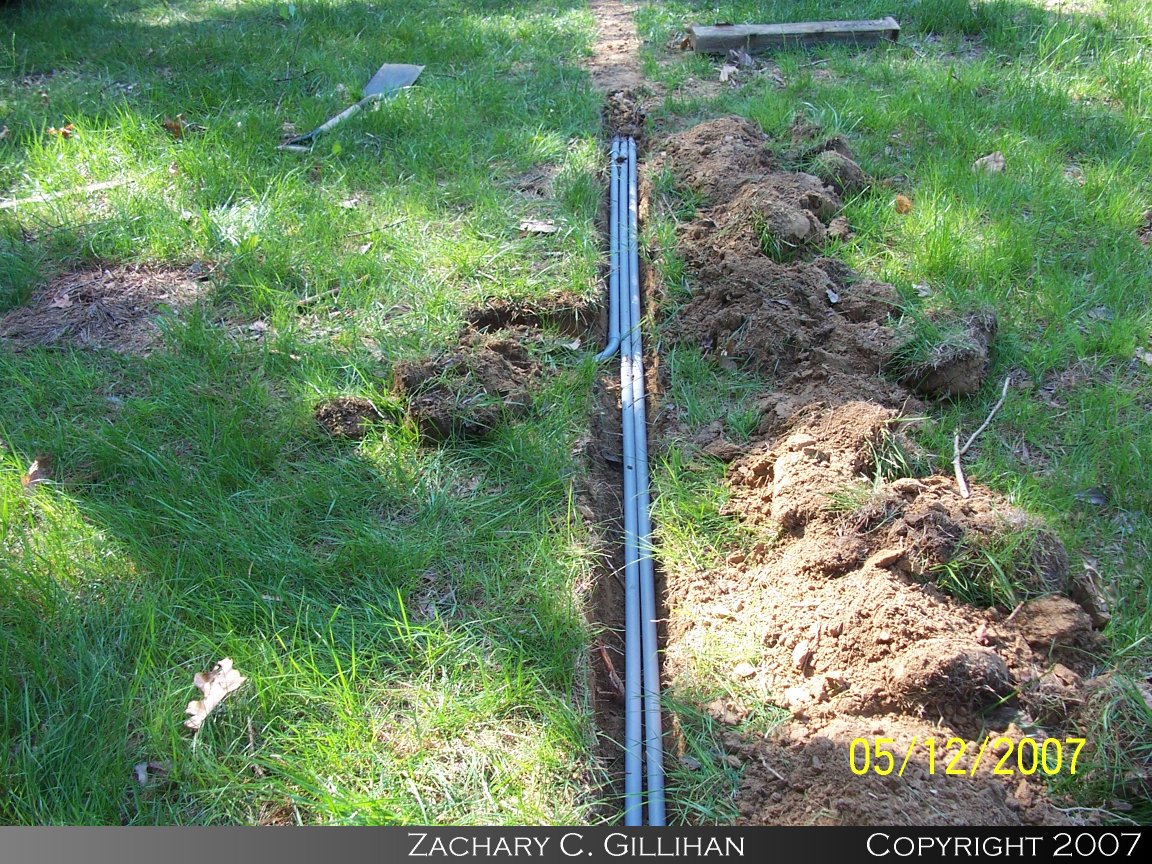

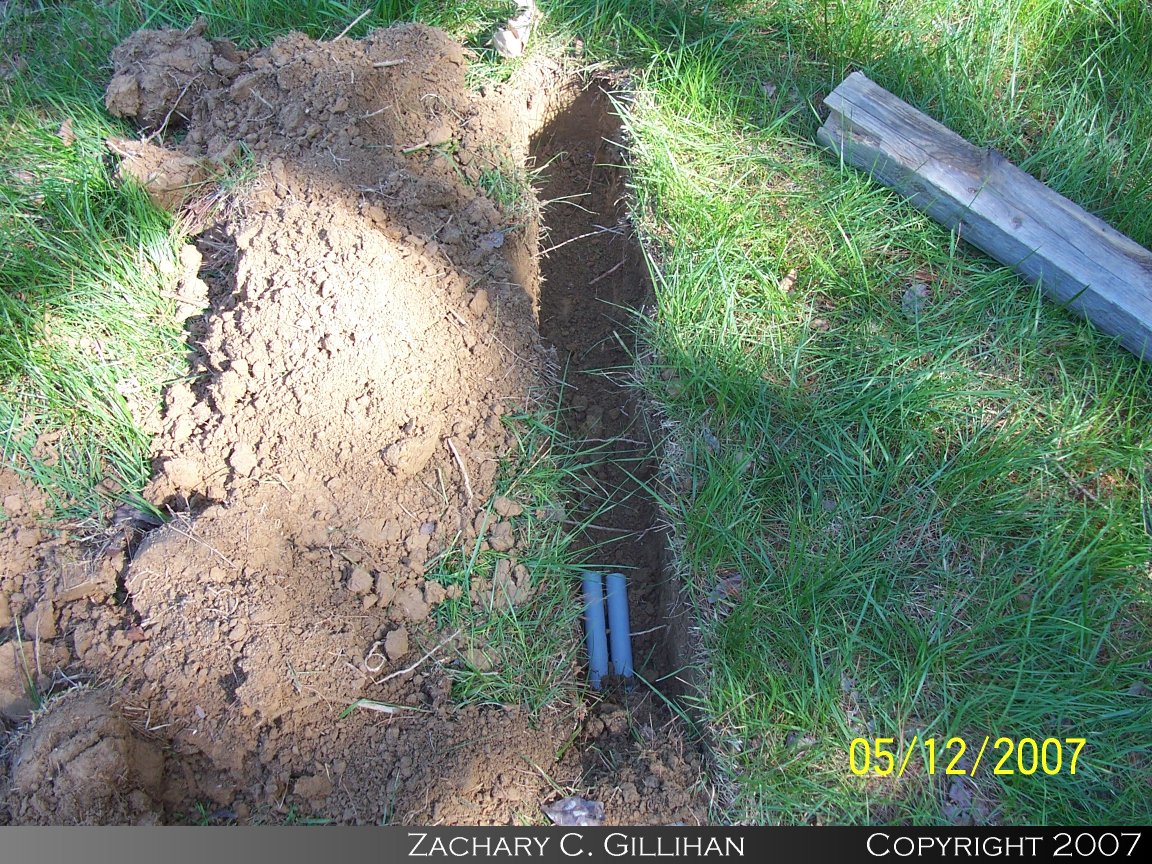

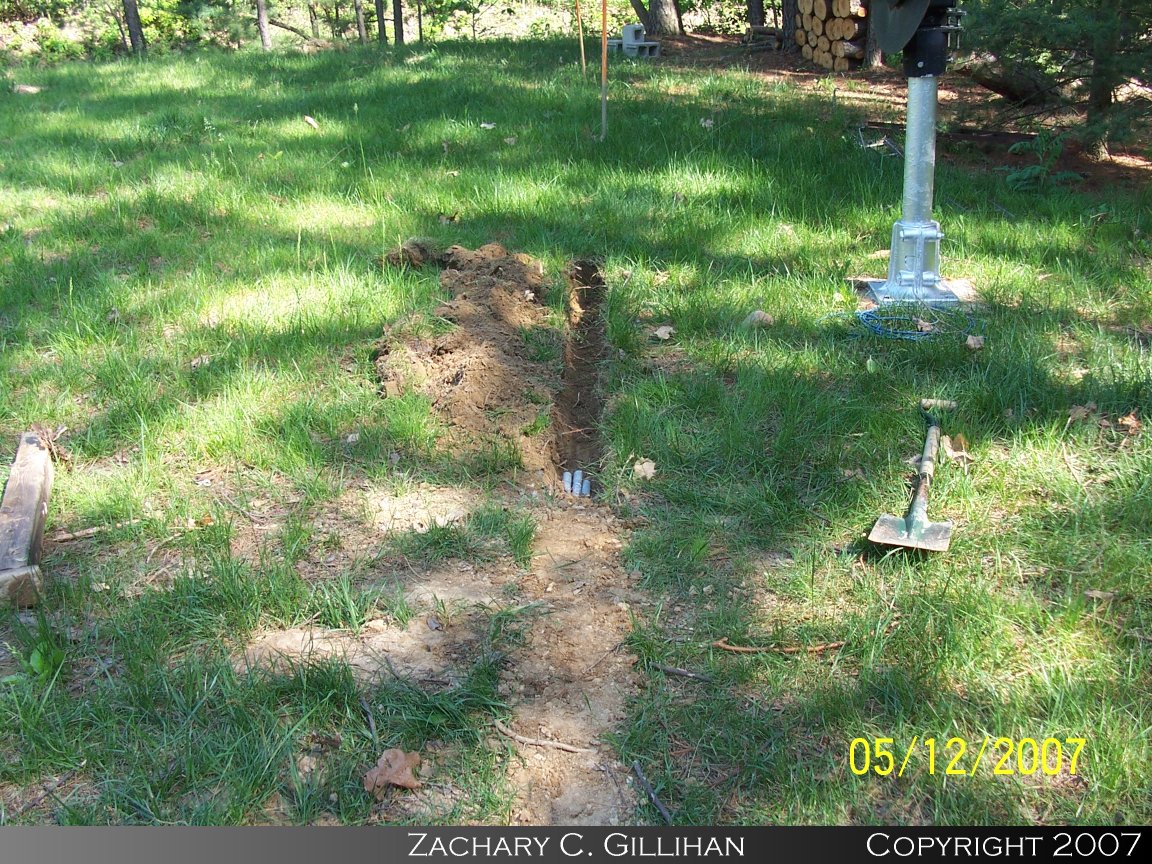

Digging next section

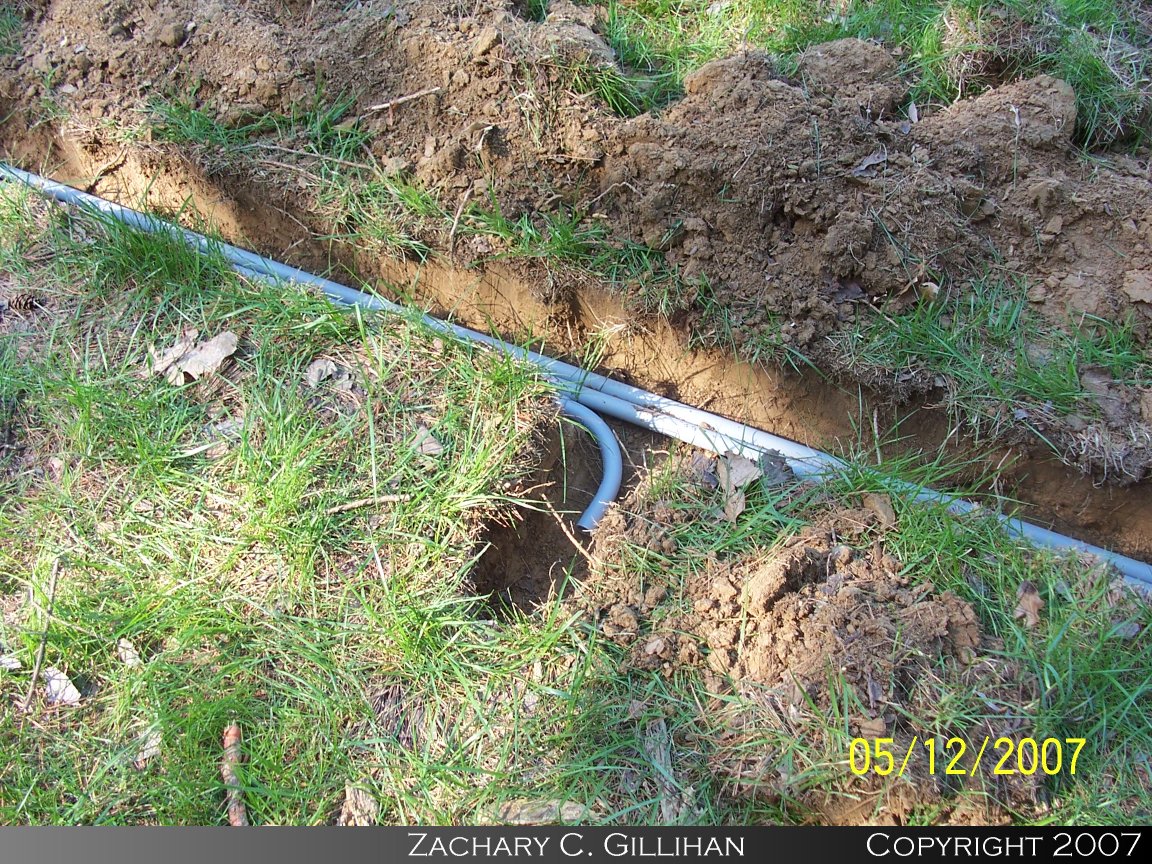

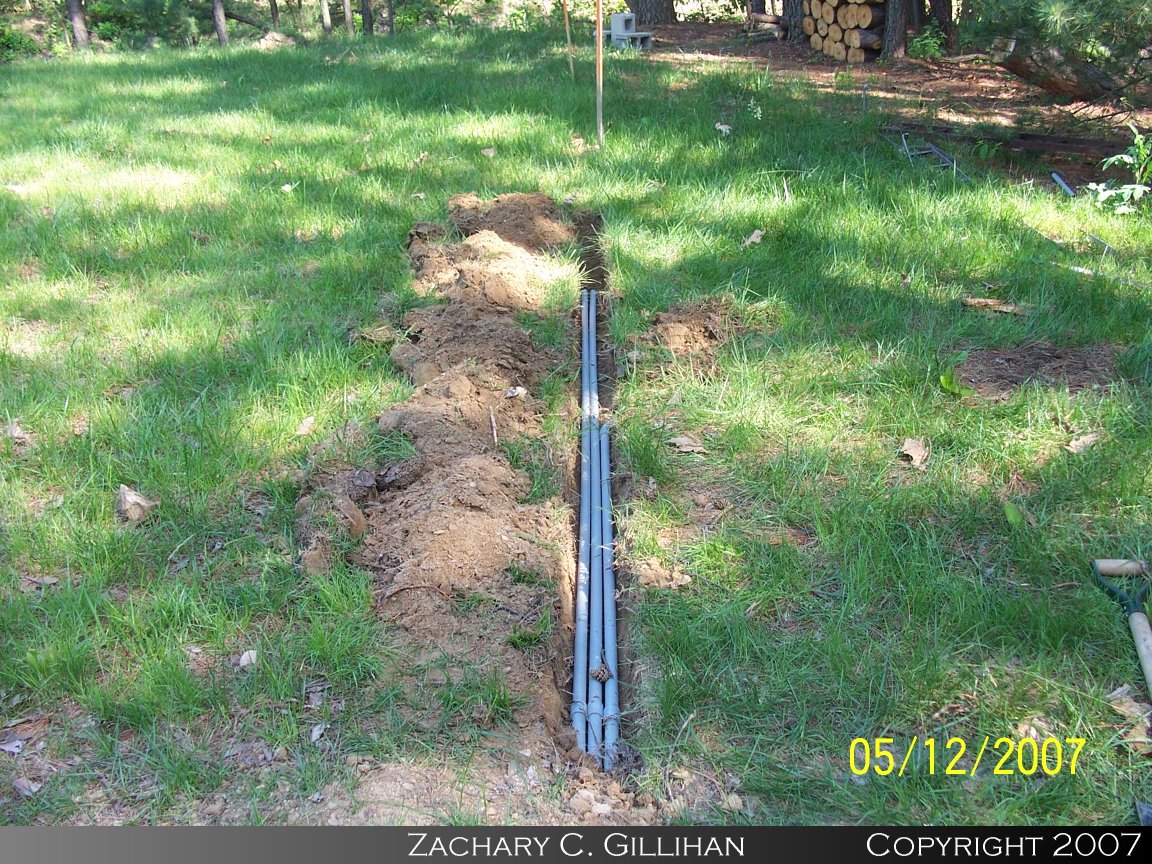

Next section of
pipe

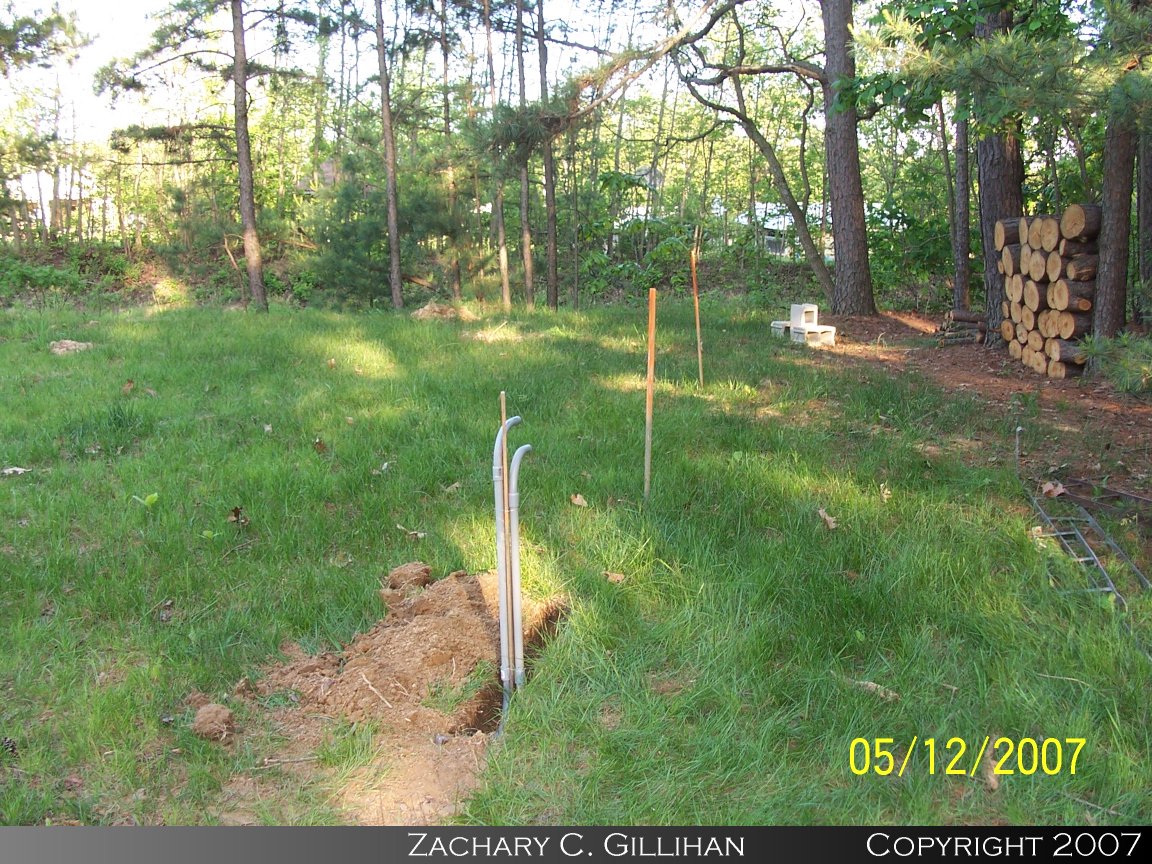

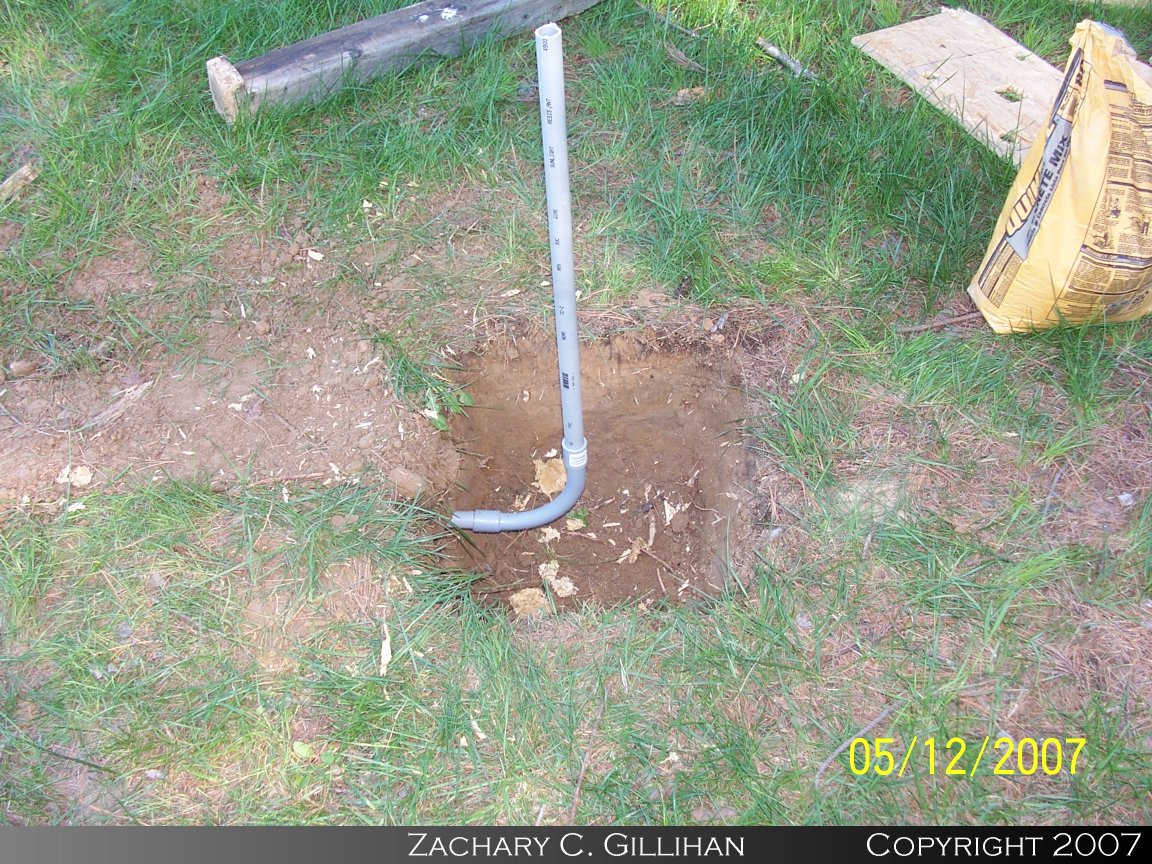

Pipe for signal
#4



Next section

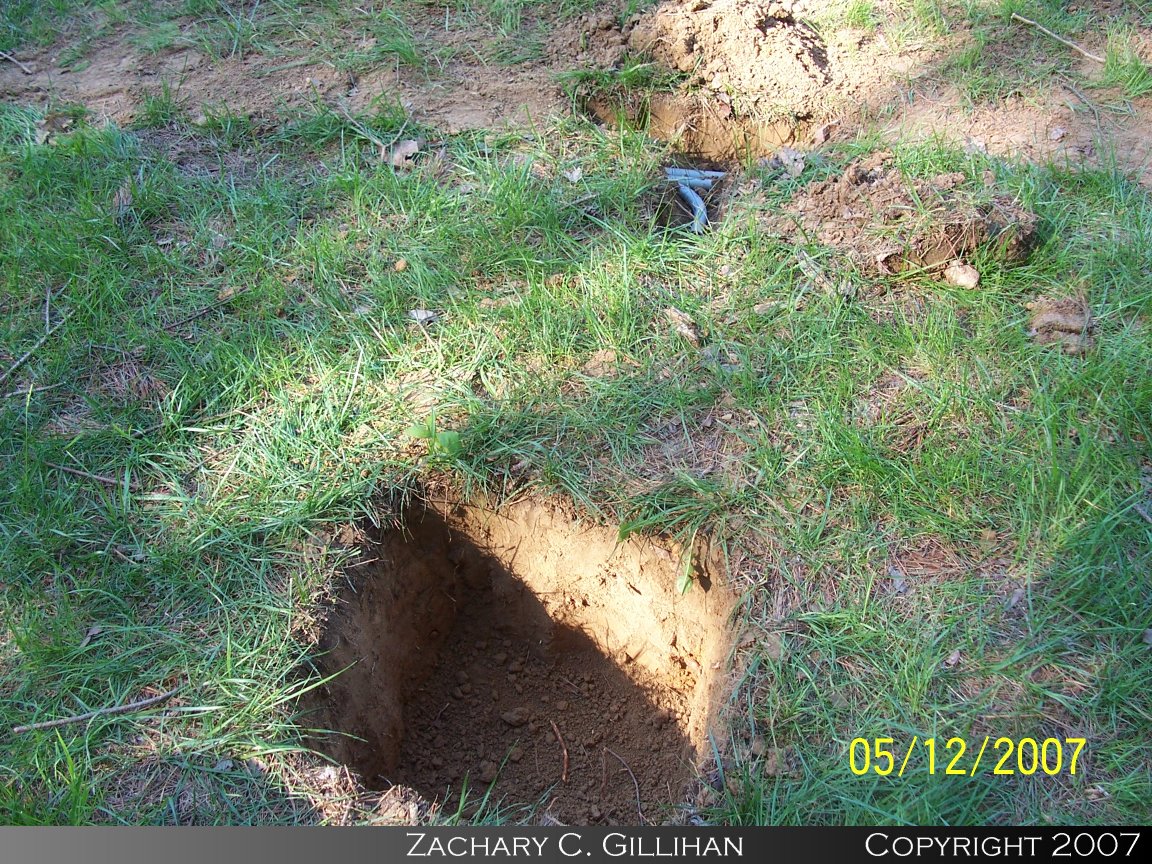

Hole dug

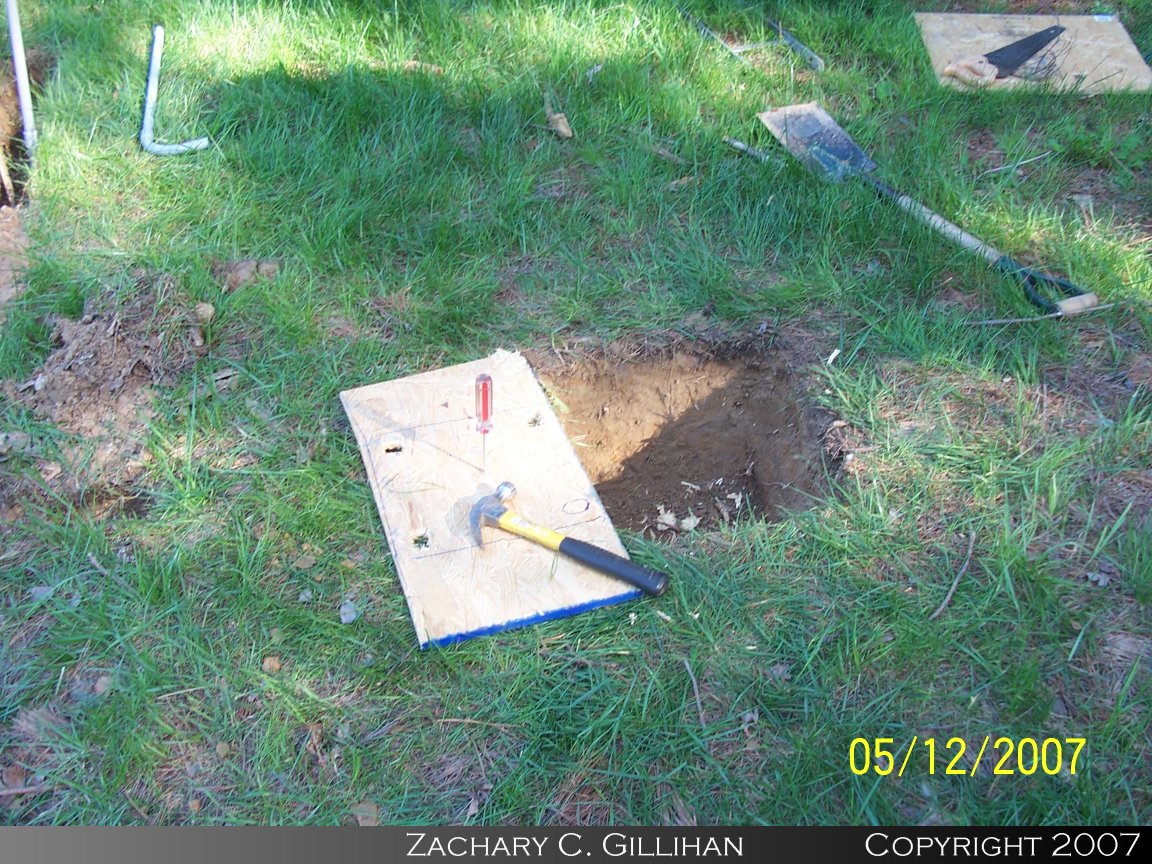

Making a Pattern
Looking good
Ready for concrete.

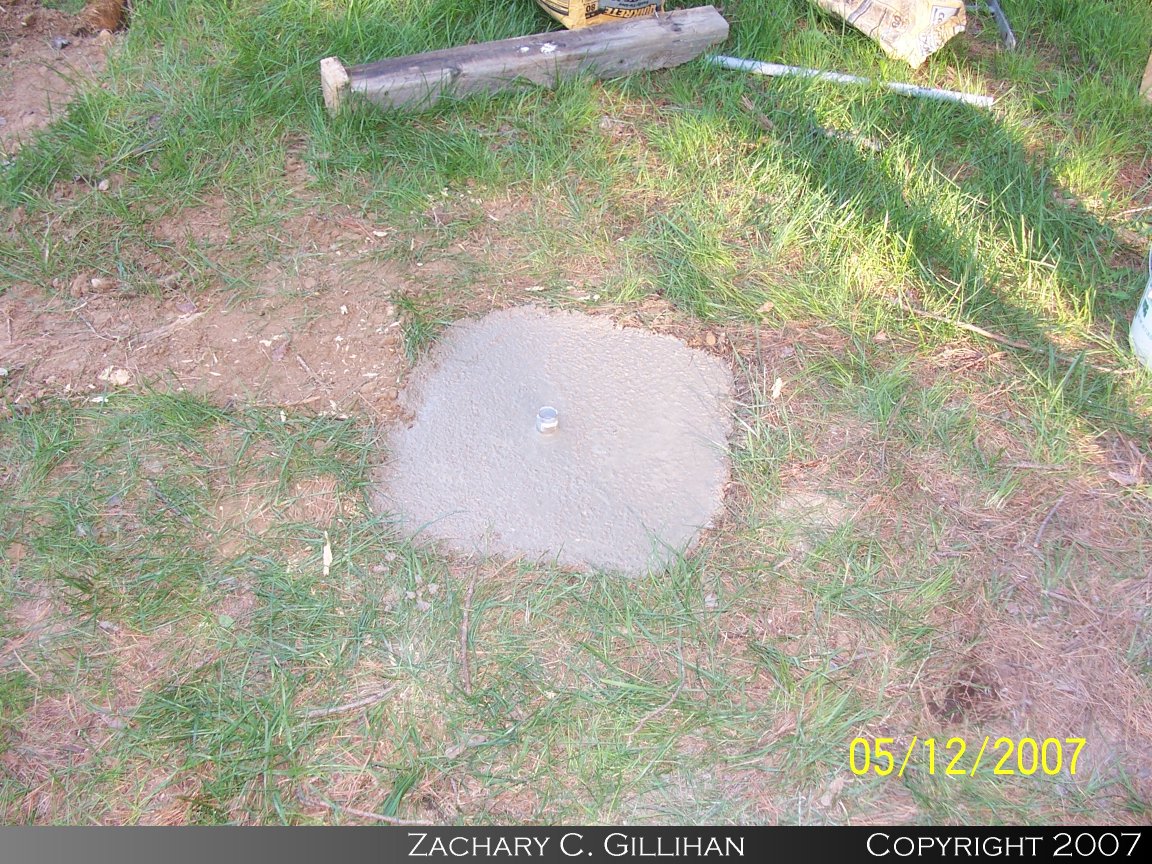

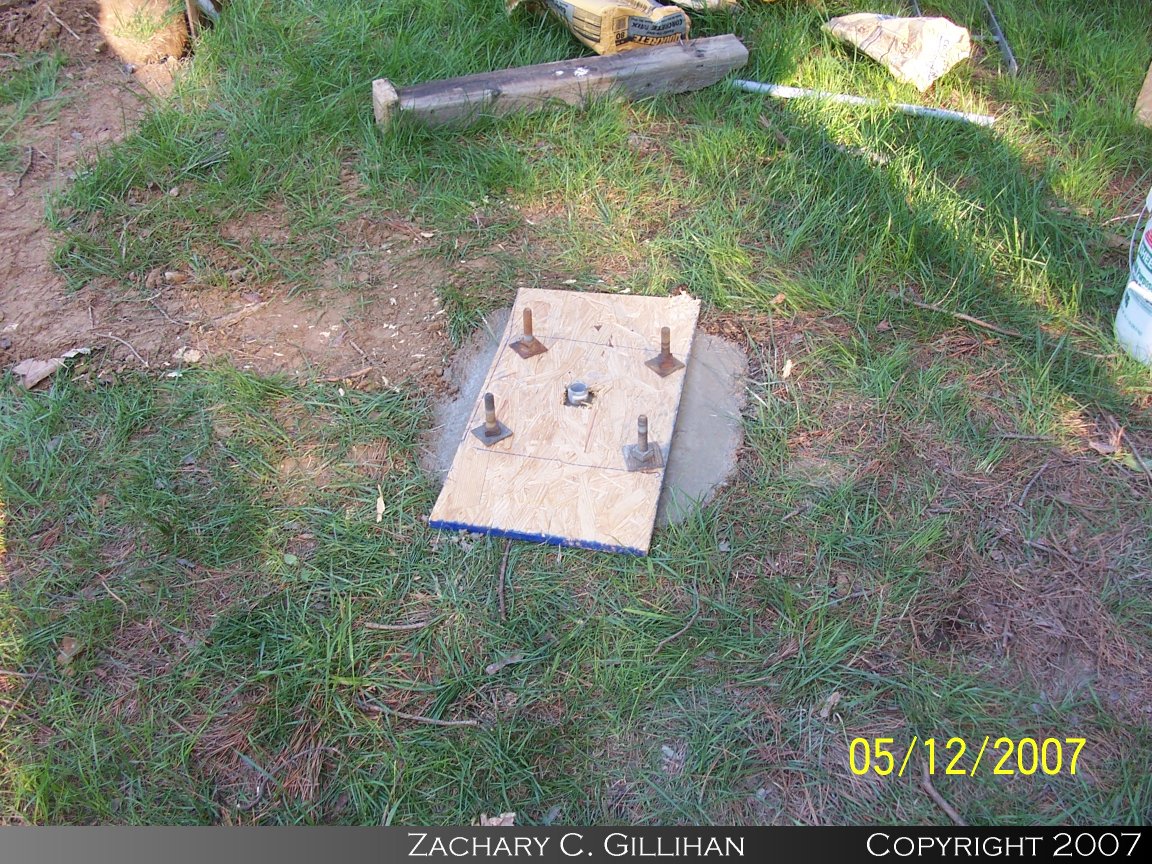

Concrete poured

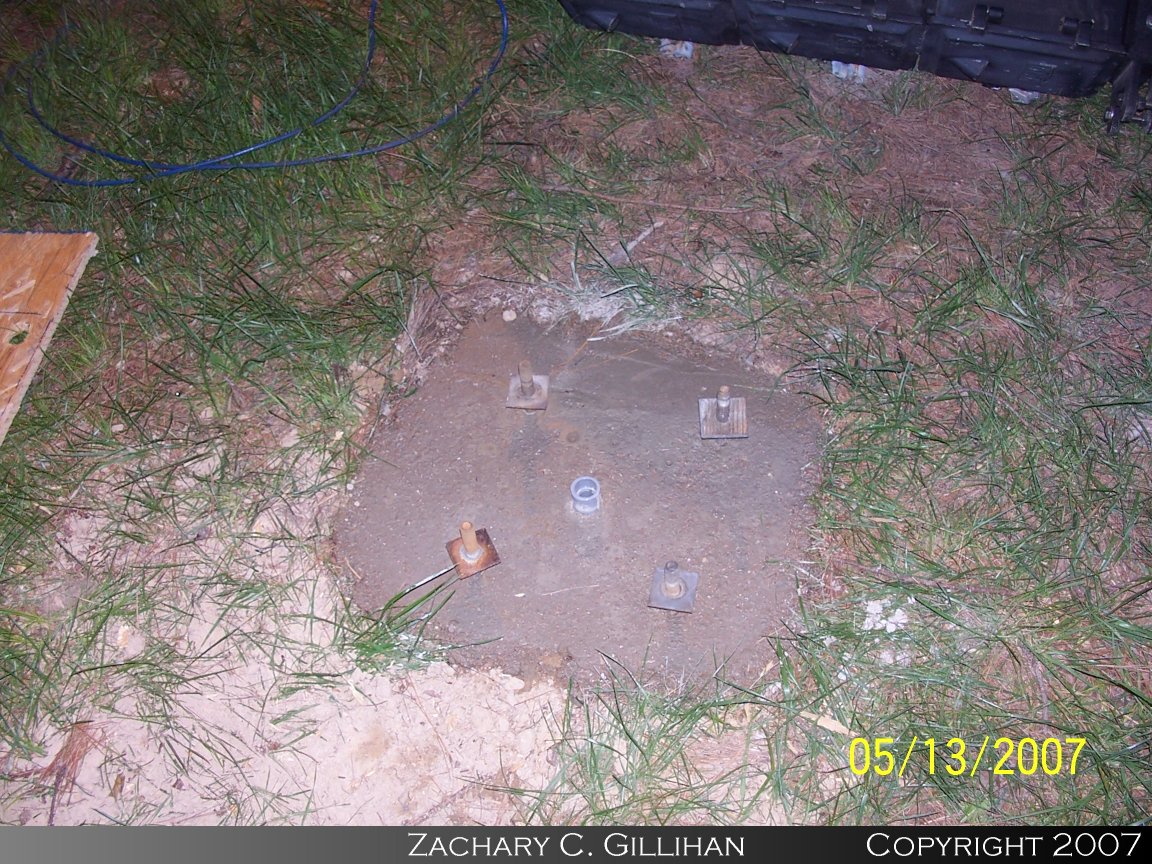

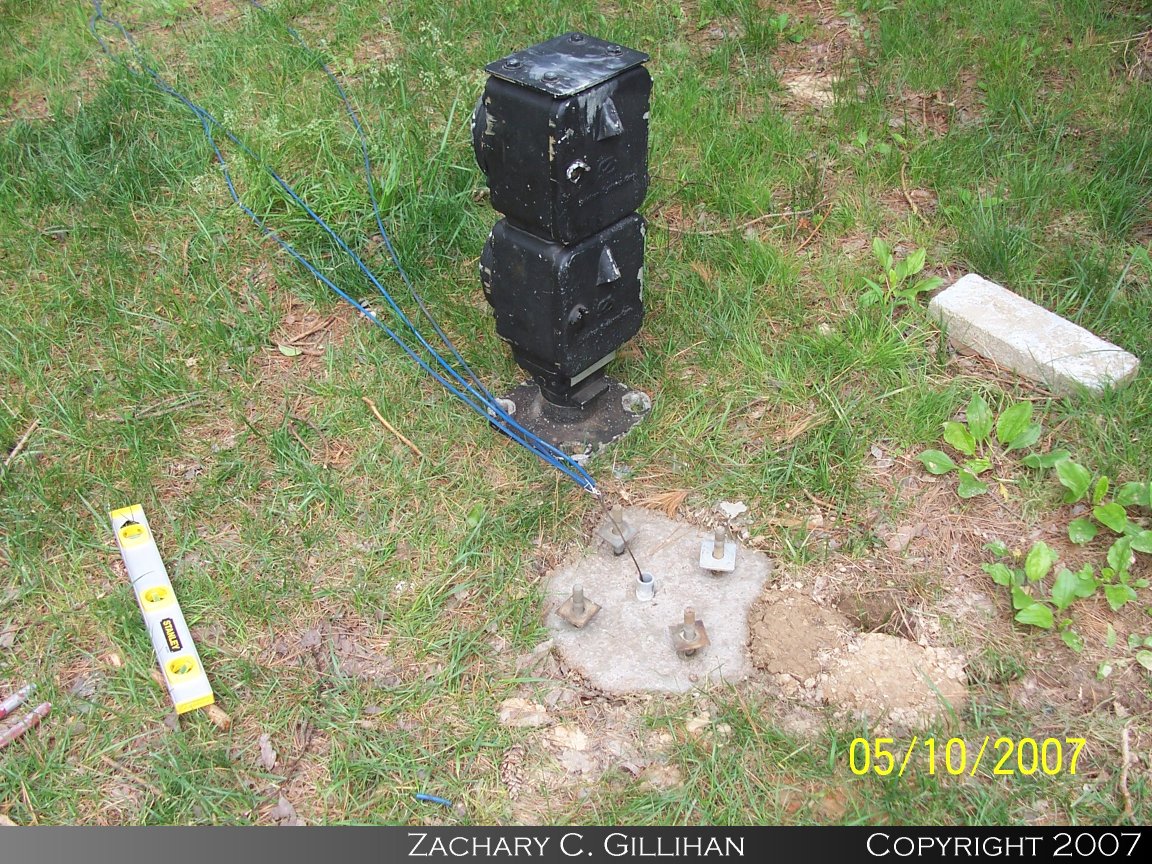

Bolts set
Waiting till next
weekend
Stop and activate
Train stop

Footing Dried

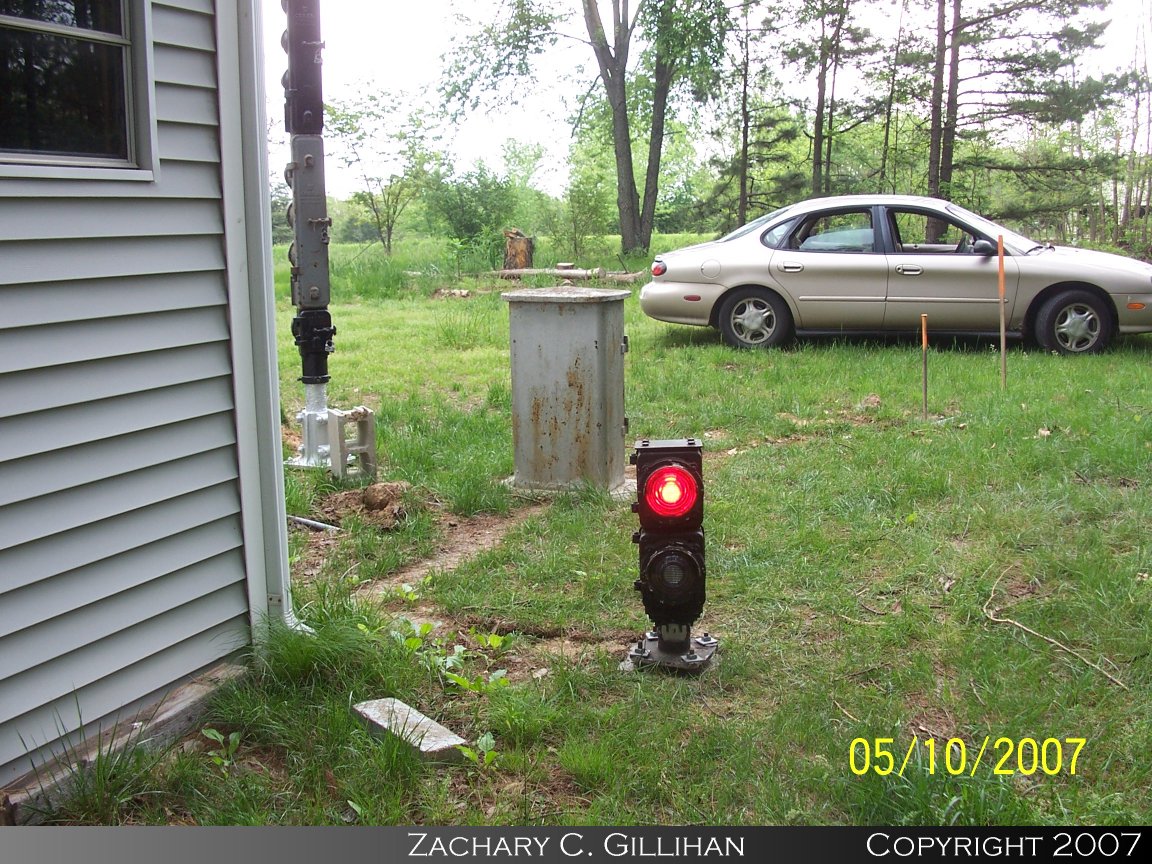

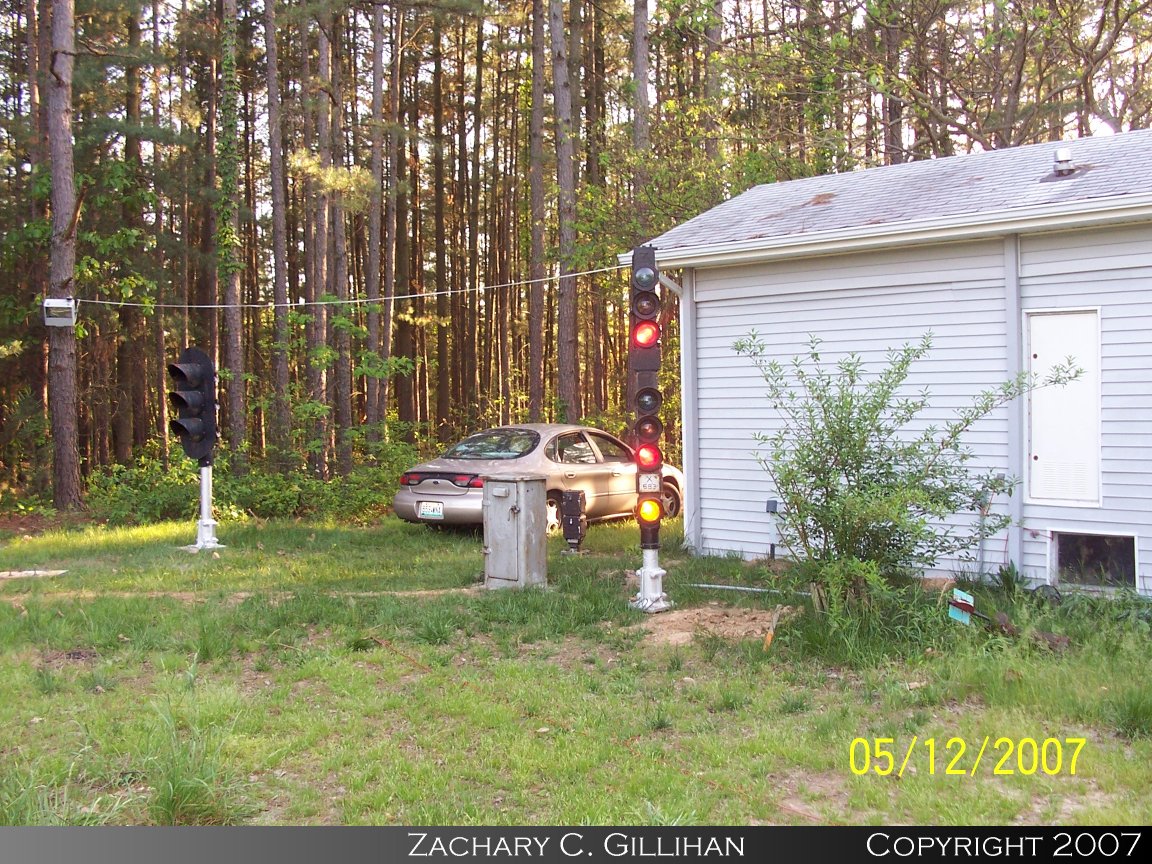

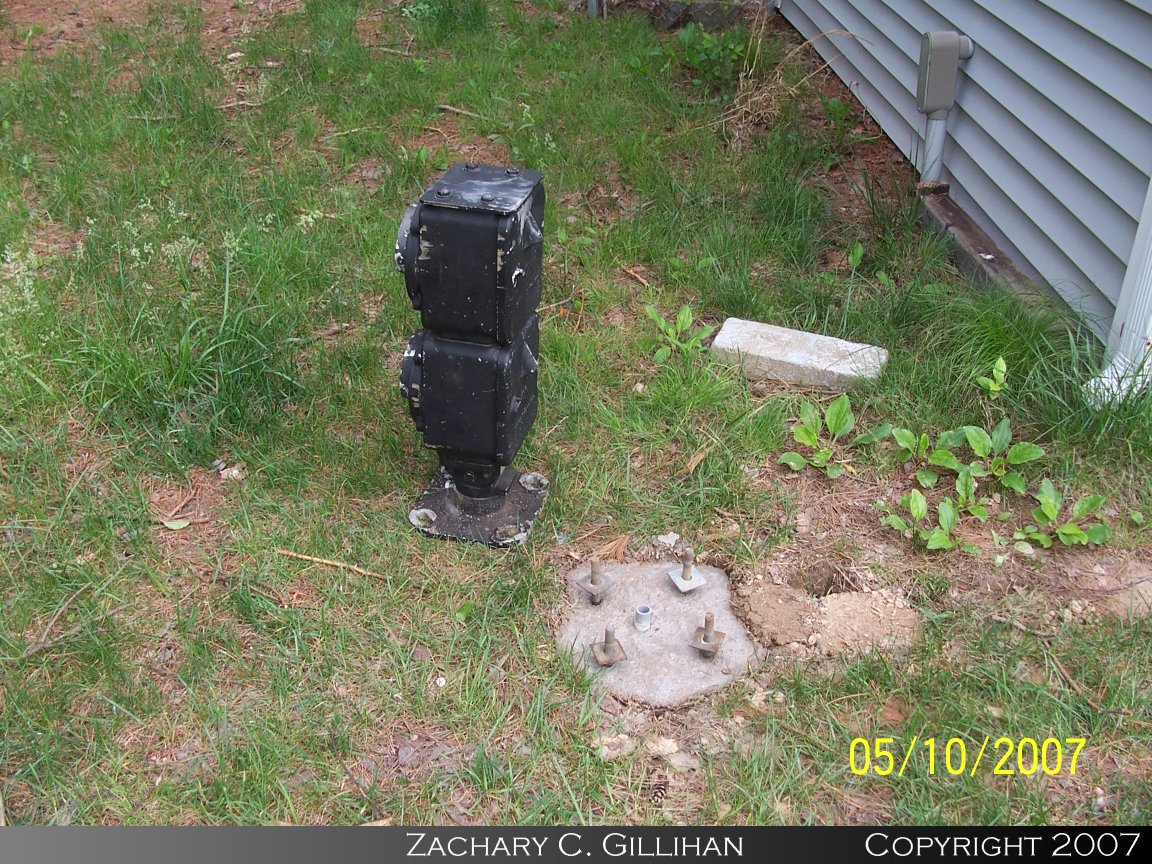

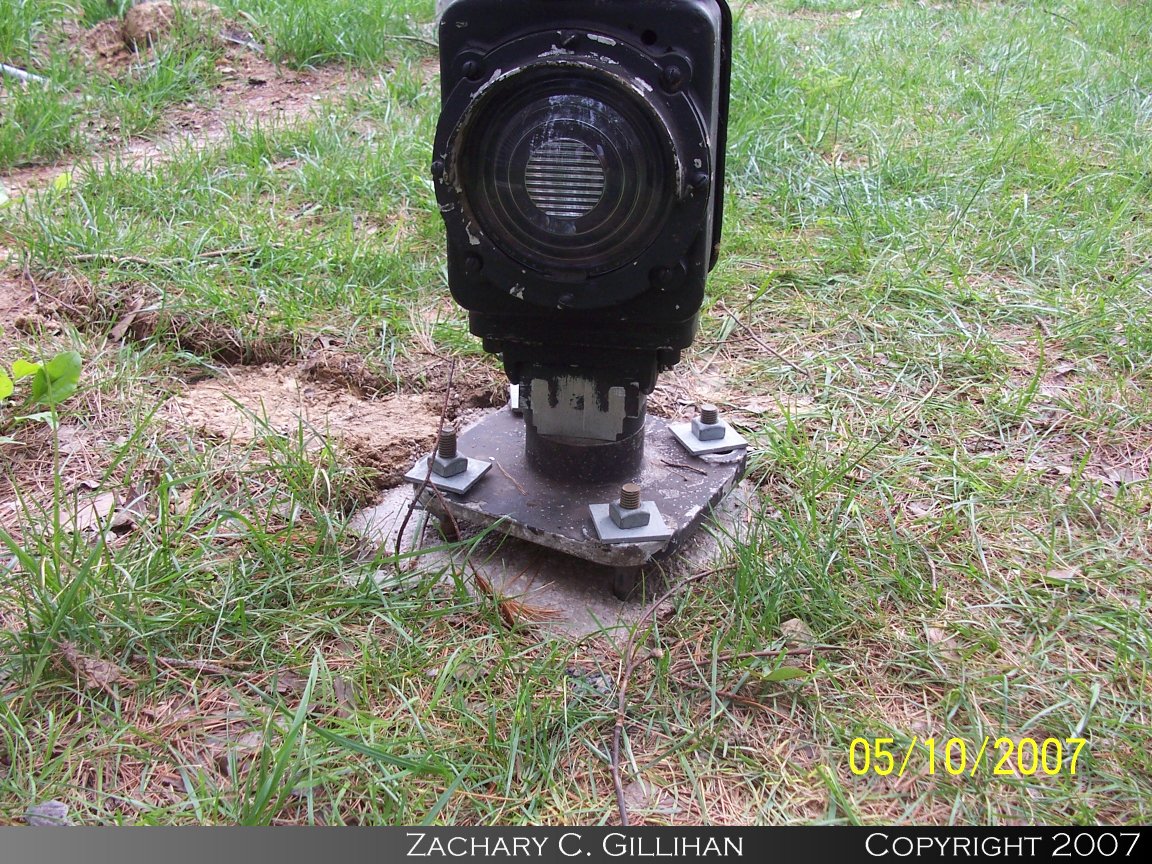

Signal set
Ready for street

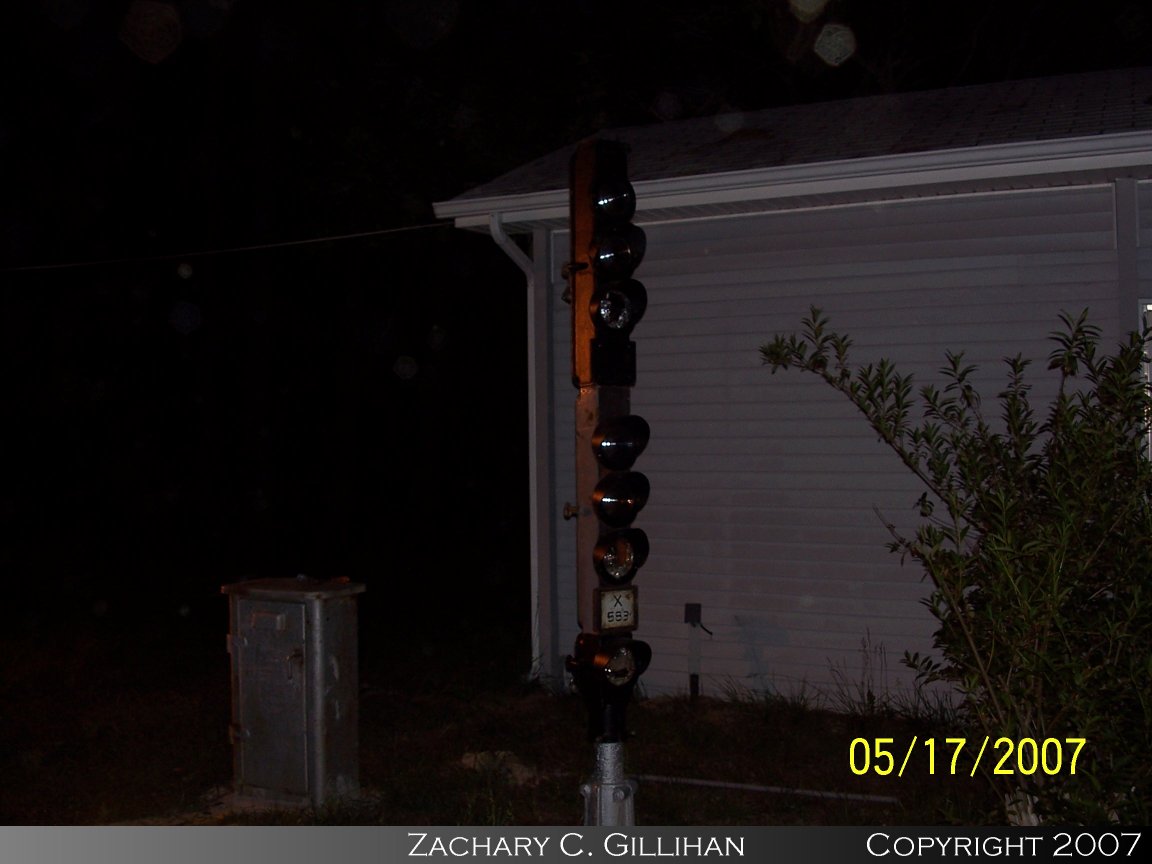

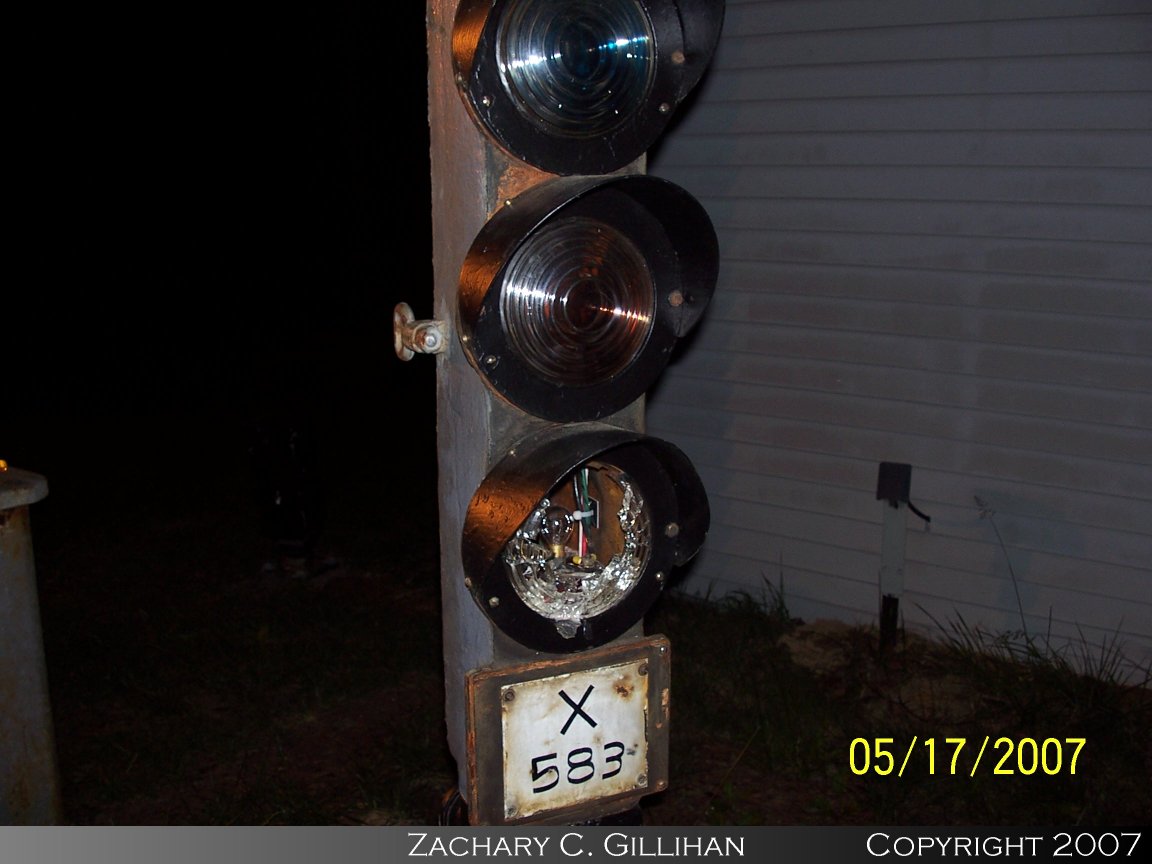

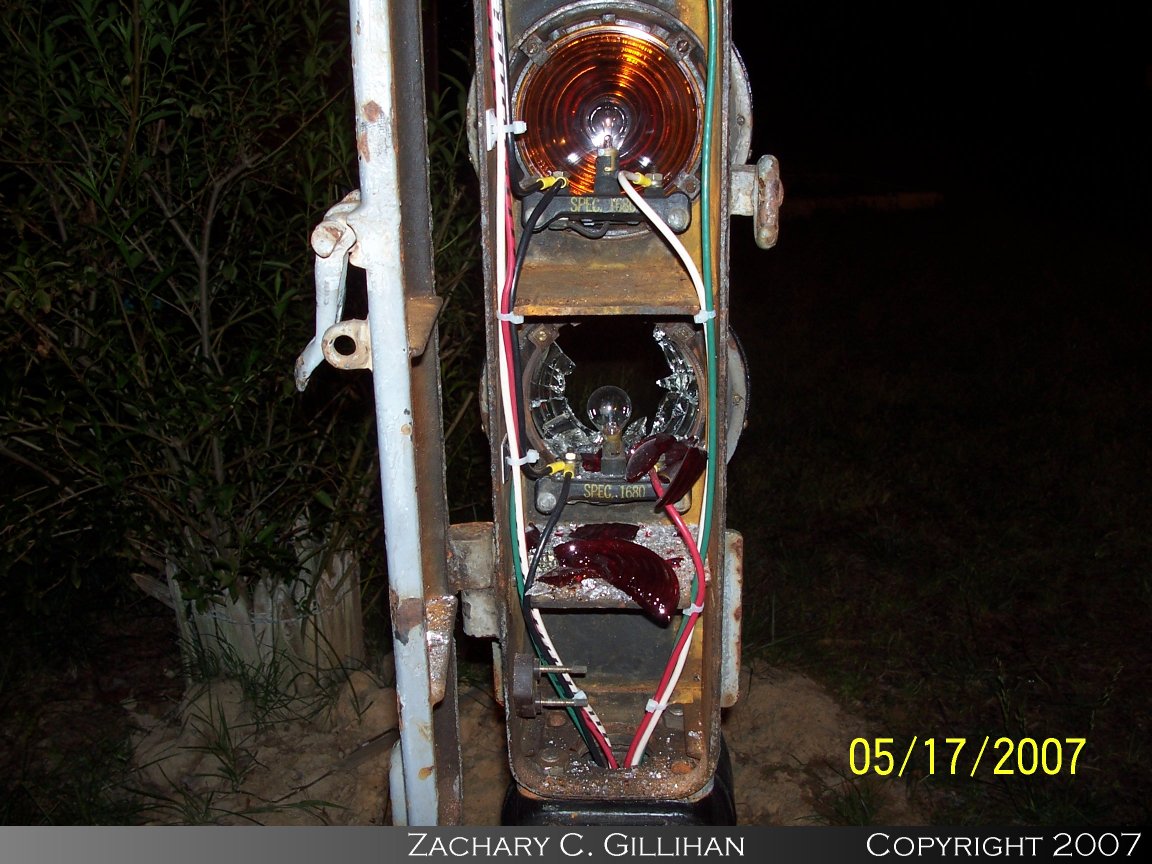

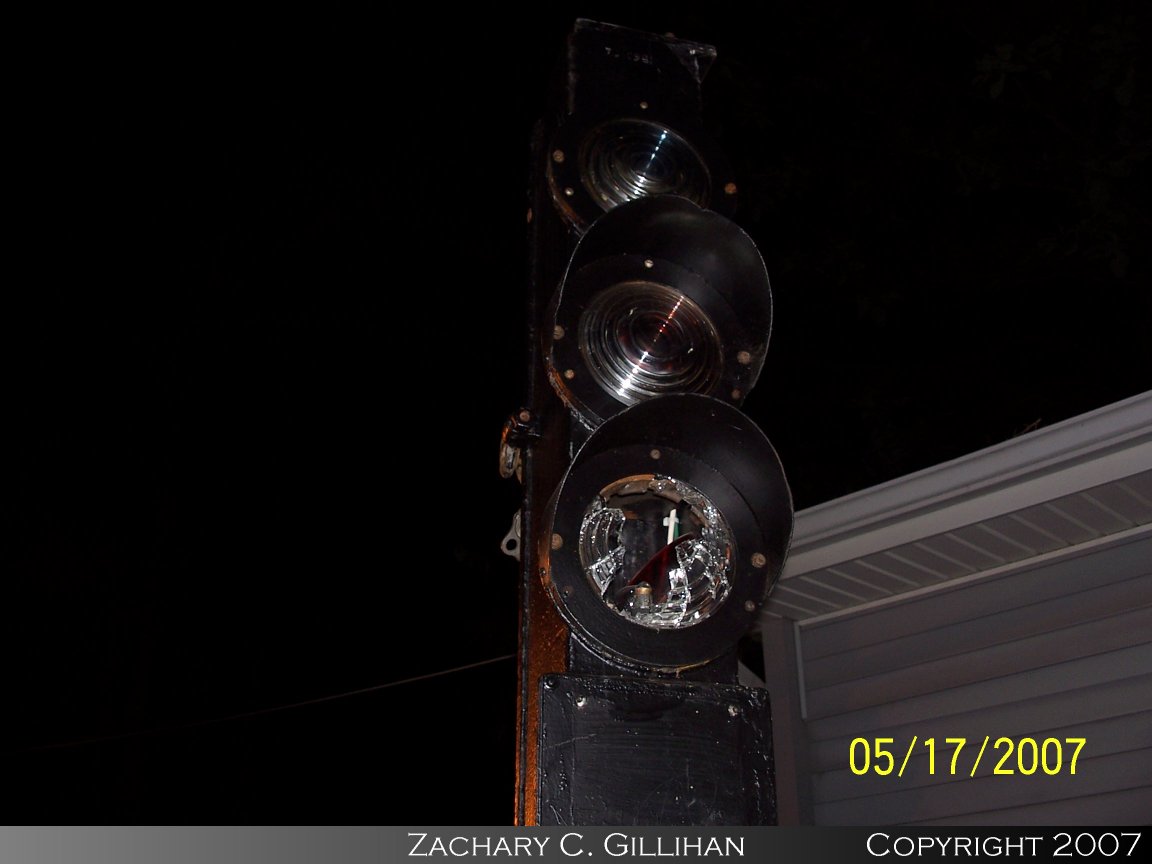

Broken...

Red Missing
Yellow Missing
Red Missing

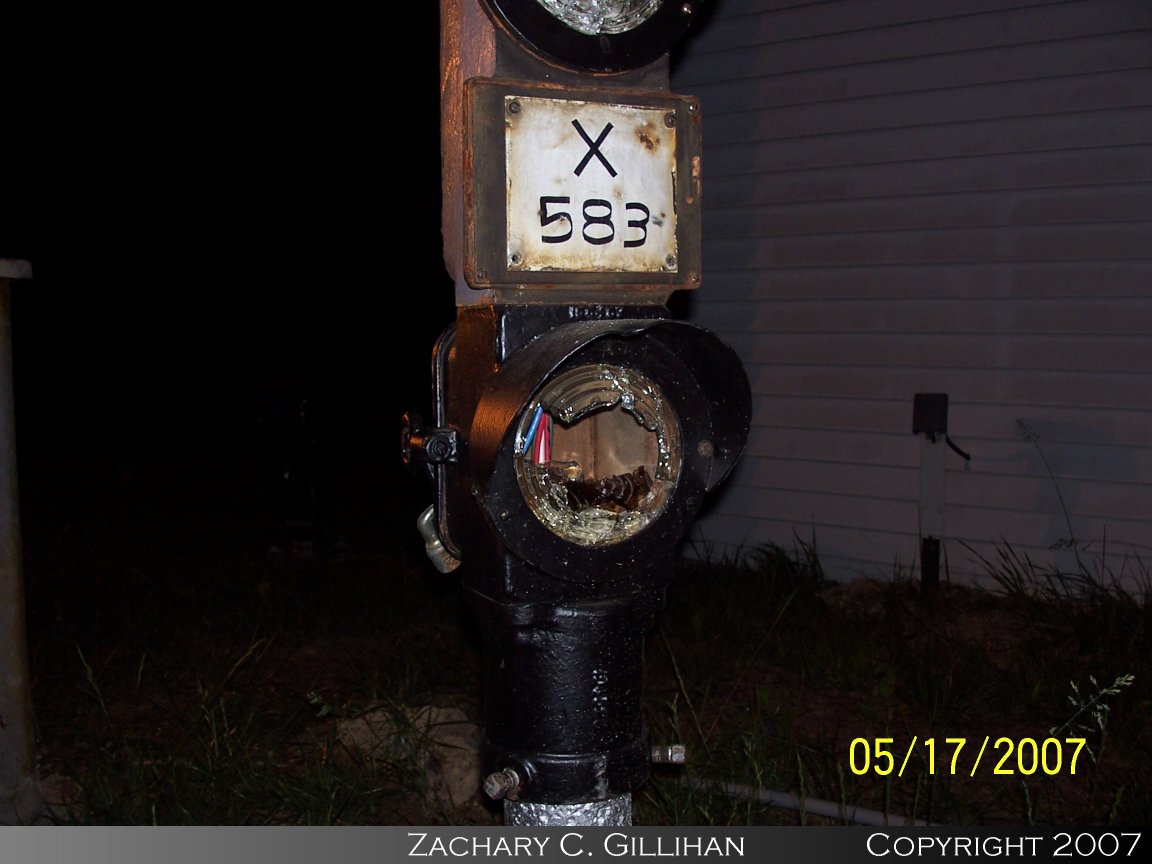

Sockets broken

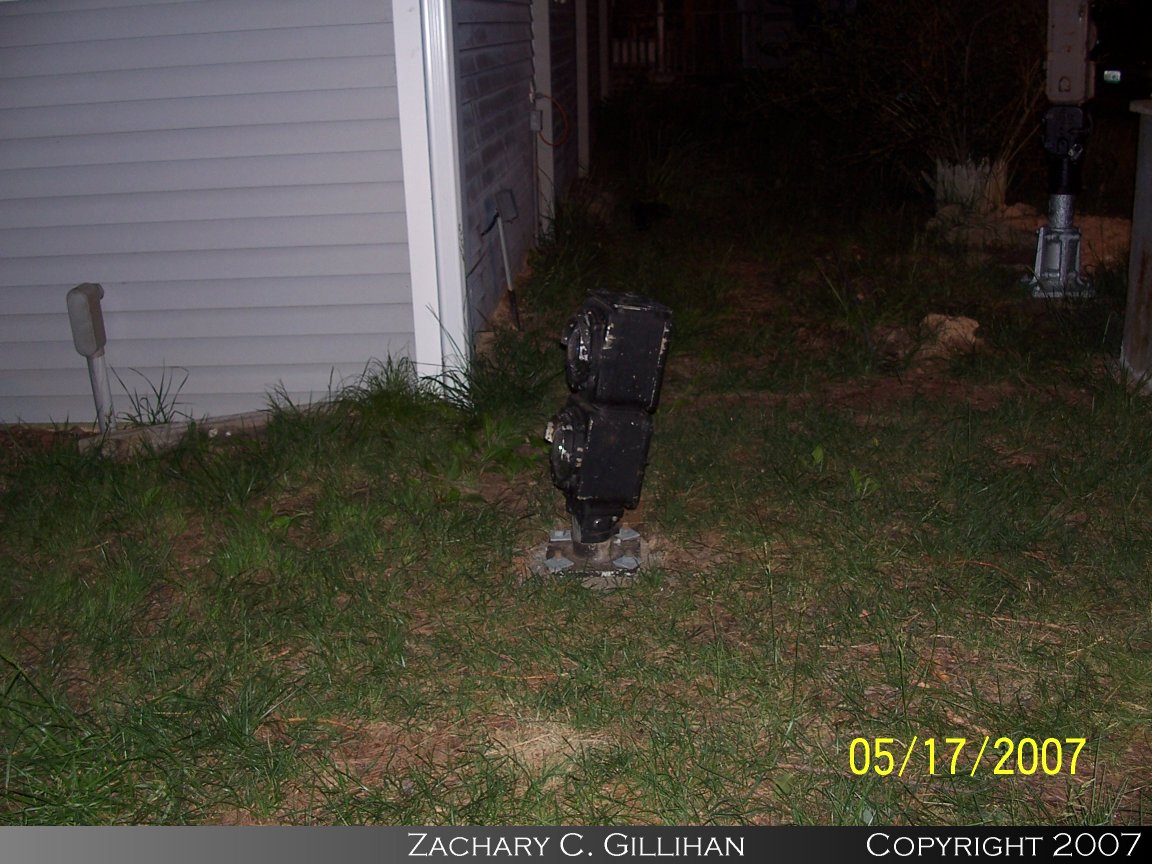

Its leaning badly
You can see Hammer
Marks

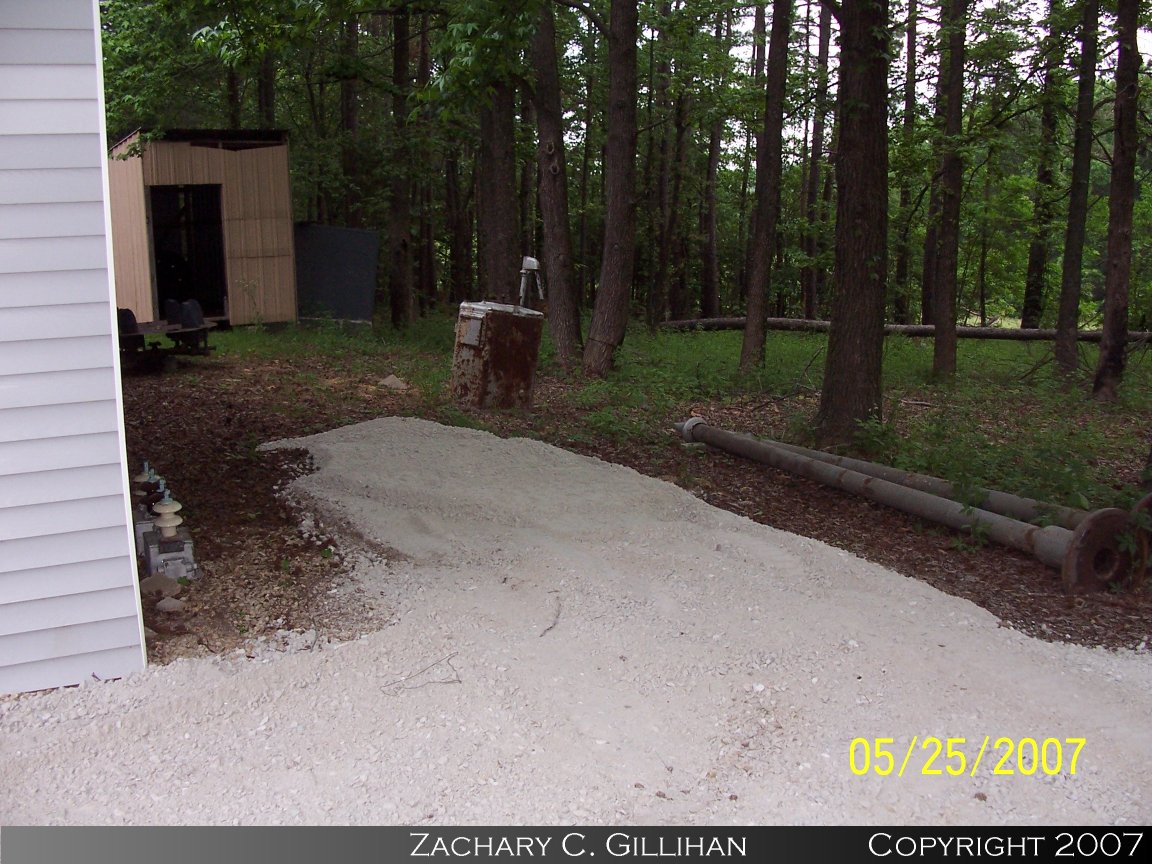

Need to move
the cabinet

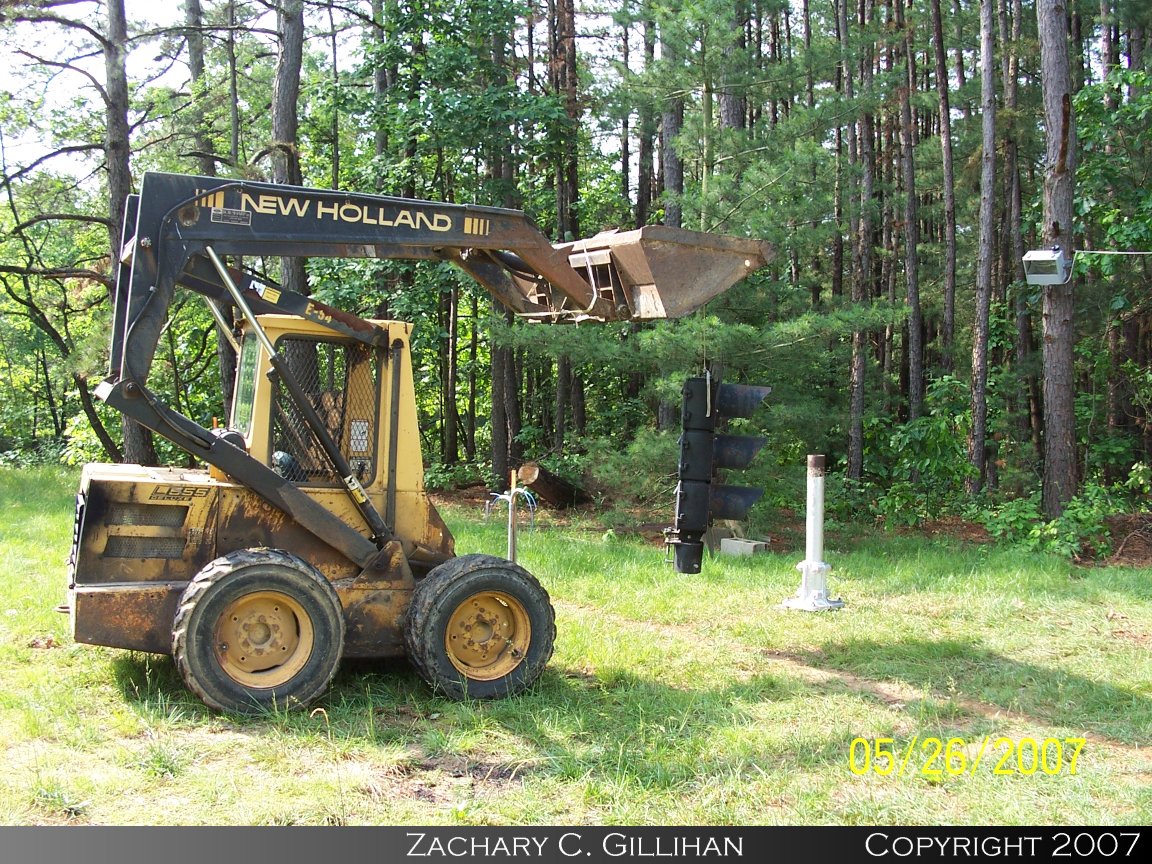

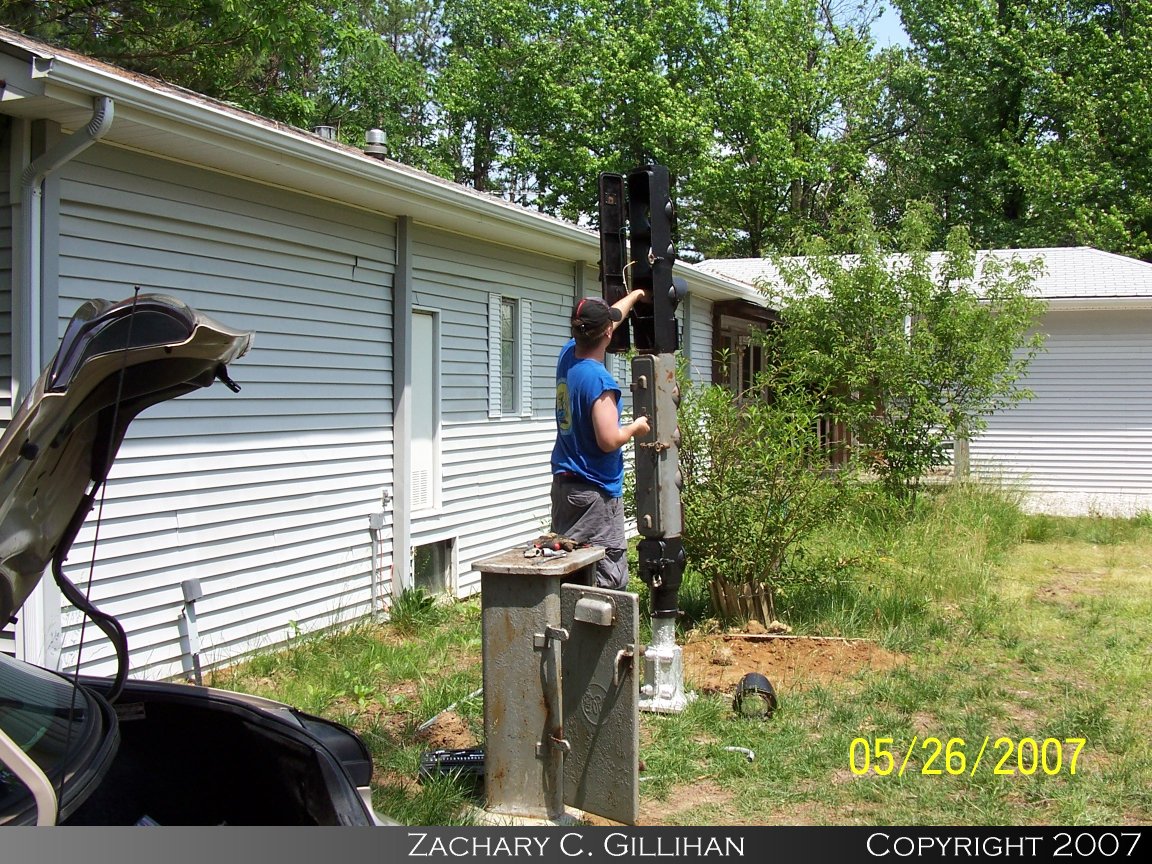

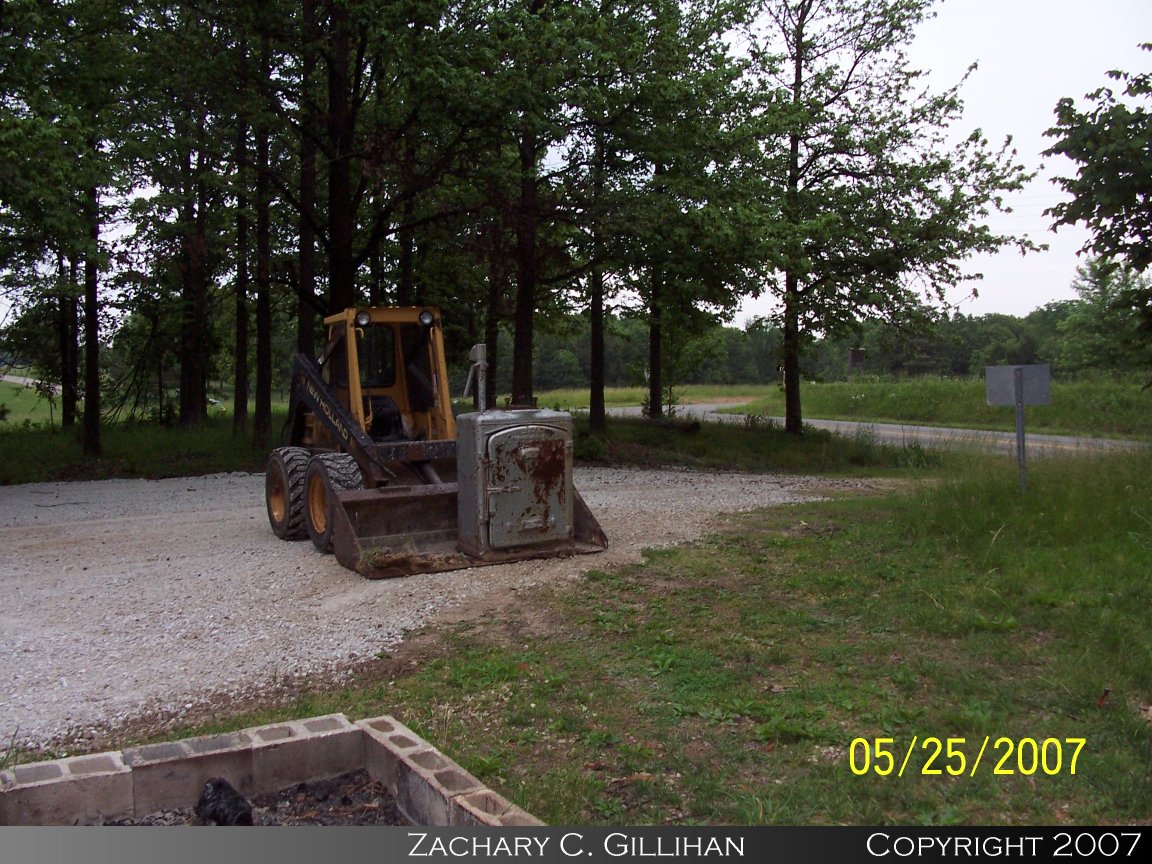

Moving made Easy

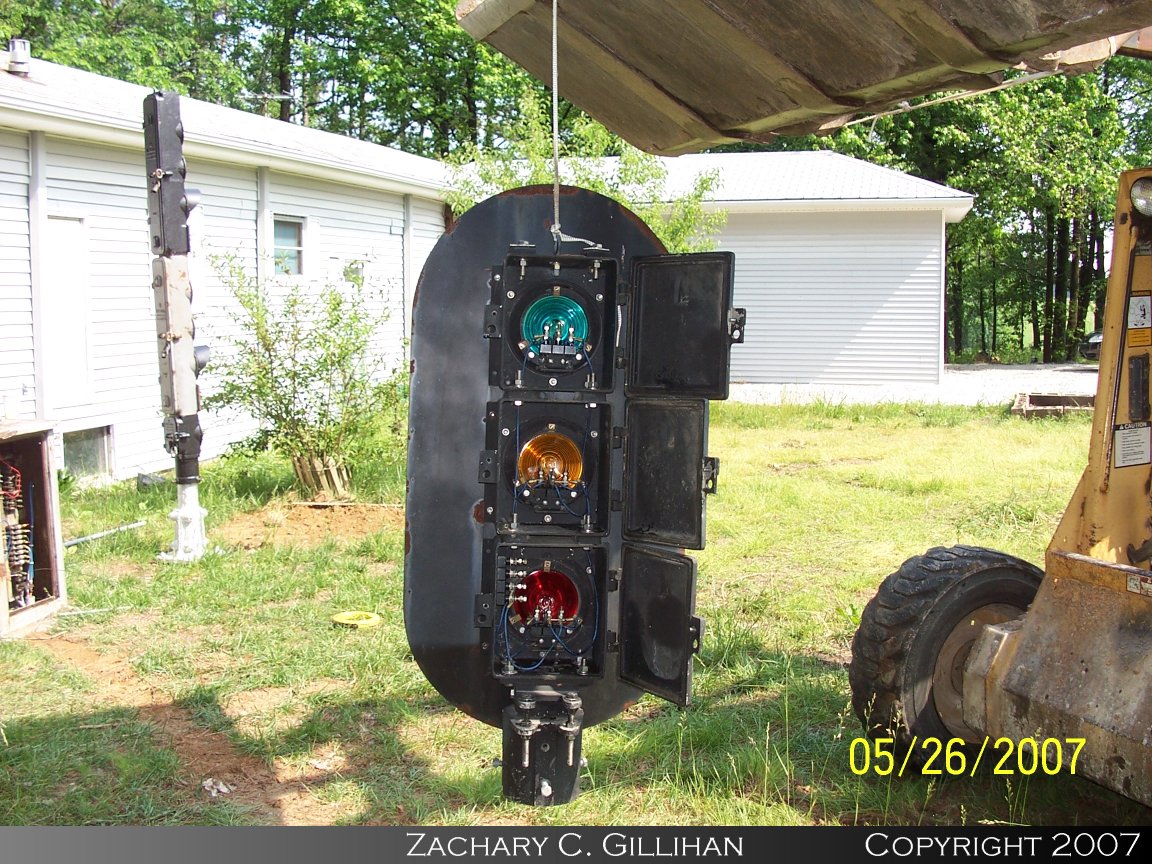

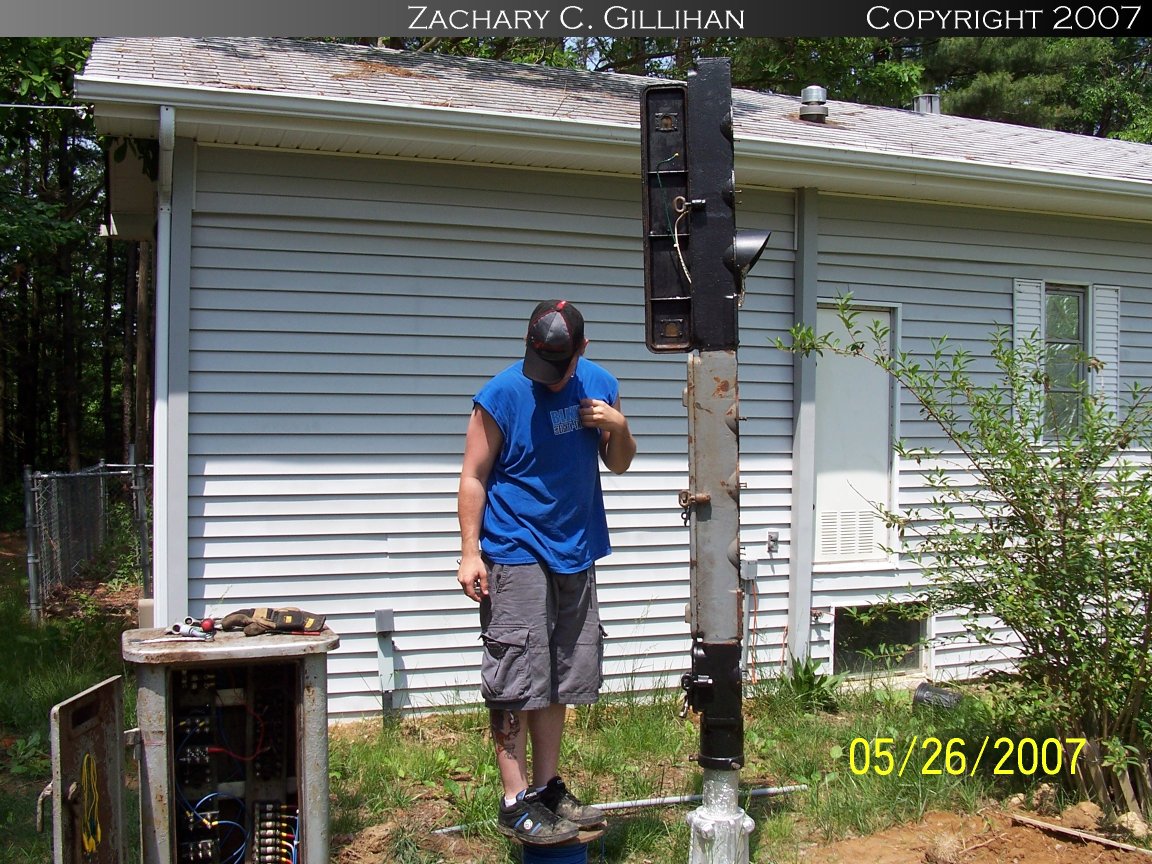

Resetting the signal

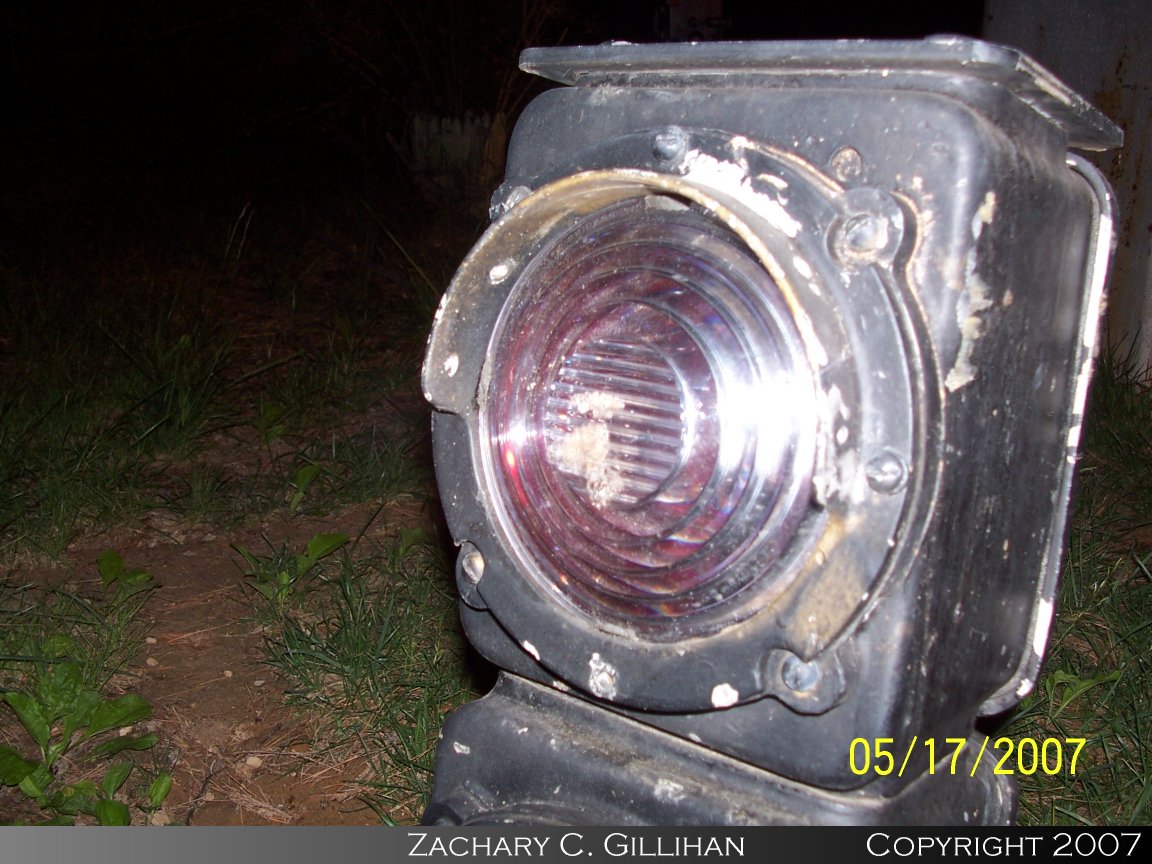

Jake removes the
broken lens



Page 1 Page 3
